Woods DS8.30E - Page 37

Parts 37
MAN1256 (3/23/2018)

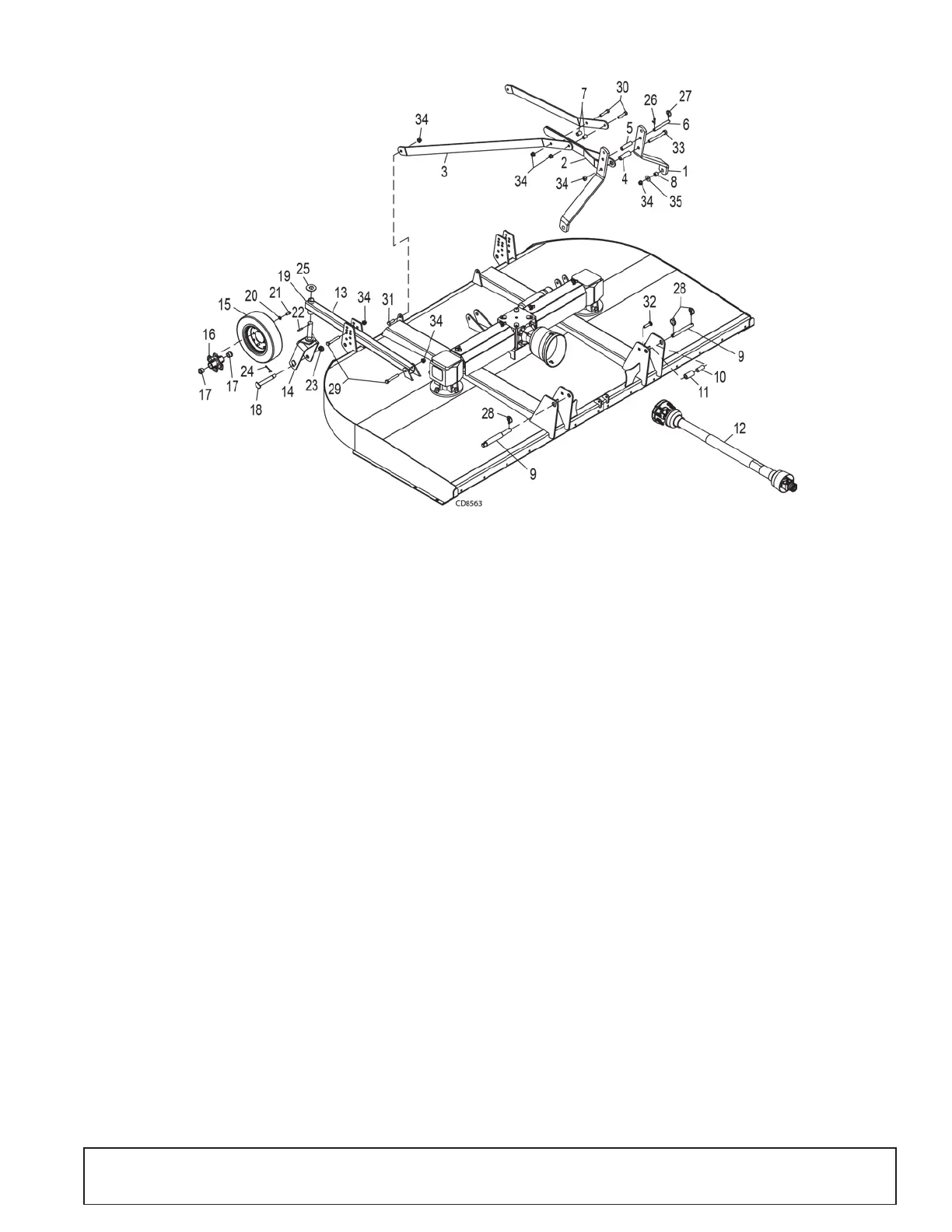

DS8.30E & DS10.40E MOUNTED ASSEMBLY
REF PART QTY DESCRIPTION
1 57134RP 2 A-Frame bar (DS8.30E) -or-
1 1040701RP 2 A-Frame bar (DS10.40E)
2 1040654RP 2 Break link
3 1040655RP 2 Lift arm (DS8.30E)
-or-
3 1040702RP 2 Lift arm (DS10.40E)
4 1040653 1 Sleeve, 16.8 mm x 31.8 mm x 101.6 mm
(.66 x 1.25 x 4.00) (DS8.30E)
-or-
4 1040703 1 Sleeve,19.1 mm x 31.8 mm x 101.6 mm (
3/4 x 1-1/4 x 4) (DS10.40E)
5 1000662RP 1 Sleeve, 19.1 x 25.4 mm x 101.6 mm (3/4
x 1 x 4)
6 1036152 1 19.1 mm x 143 mm (.75 x 5.63) Head
-
less pin
7 66661RP 2 Sleeve, 15.9 mm x 25.4 mm x 318 mm (5/
8 x 1 x 1-1/4)
8 67222RP 2 Sleeve, 15.9 mm x 25.4 mm x 17.5 mm
(5/8 x 1 x 11/16) (DS8.30E)
-or-
8 12313 2 Sleeve, 15.9 mm x 25.4 mm x 20.6 mm
(5/8 x 1 x 13/16) (DS10.40E)
9HBL2332
22.2 mm x 176.2 mm (7/8 x 6-15/16) Head-
less pin (DS8.30E)
-or-
9 39064 2 Lower hitch pin (DS10.40E)
10 56598 2 Sleeve, 22.2 mm x 28.6 mm x 66.7 mm
(7/8 x 1-1/8 x 2-5/8) (DS8.30E)
11 1002012 2
Sleeve, 23.8 mm x 36.5 mm x 69.9 mm (15/
16 x 1-7/16 x 2-3/4) (DS8.30E)
12 ------- 1 Driveline
13
1040650RP
2 Tailwheel arm
14
1036880RP
2 Tailwheel clevis
15
1019636
2 4 X 8 Rim & laminated tire
REF PART QTY DESCRIPTION
16 1030522 2 Hub, 4-bolt
17 1030524R
P
4 Bushing, flange 25.1 mm x 35.4 mm x 24.9
mm (.990 x 1.394 x .98)
18 1030523 2 M24-2.0P Axle bolt
19 12296
* 1/4-28 Straight grease fitting
20 -------
* 1/2 Flat washer
21 300300
* 1/2 NC x 1 HHCS, GR5
22 40775 2 Spirol pin, 10 mm x 65 mm
23 1032105 2 M24-2.0P Slotted nut
24 -------
* Cotter pin
25 7163RP
* 1-1/4 Std flat washer
26 1285RP
* 1/4 x 1-1/2 Cotter pin
27 62043RP
* 1/4 x 1-3/4 Klik pin
28 27542RP
* 7/16 x 11/32 Klik pin
29 3097
* 5/8 NC x 4-1/2 HHCS, GR5
30 34473
* 5/8 NC x 3 HHCS, GR5
31 902RP
* 5/8 NC x 2 HHCS, GR5
32 2855RP
* 5/8 NC x 2 Crg bolt, GR5 (DS8.30) -or-
32 5836 * 5/8 NC x 2-1/2 Crg bolt, GR5 (DS10.40)
33 23638RP
* 5/8 NC x 7 HHCS, GR5 (DS8.30) -or-
33 29489 3/4 NC x 6-1/2 HHCS, GR5 (DS10.40)
34 19025RP * 5/8 NC Flanged lock nut (DS8.30)
-or-
34 2371RP * 3/4 NC lock nut (DS10.40)
35 692RP
* 5/8 Std flat washer
* Standard Hardware, Obtain Locally
HHCS Hex Head Cap Screw
