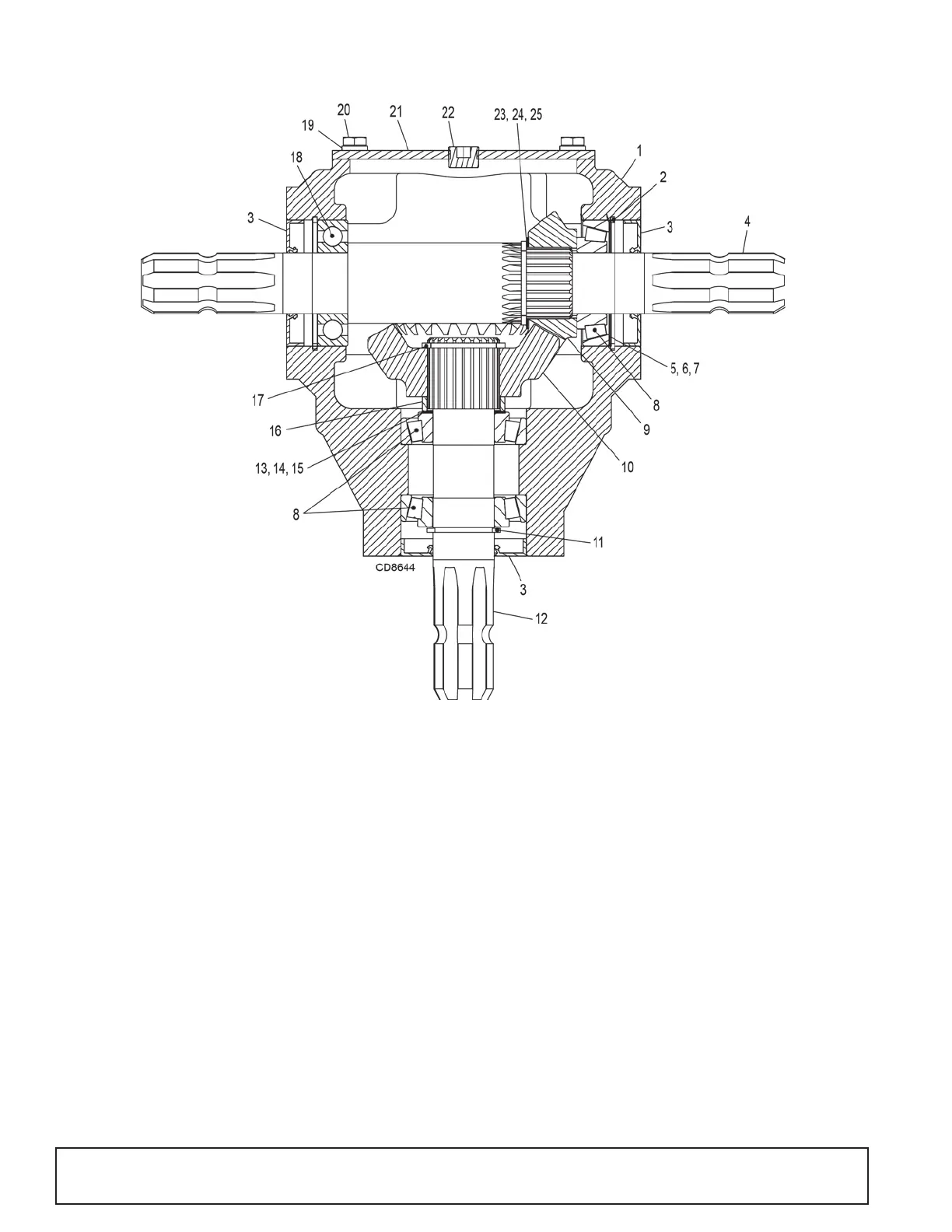

DS8.30E SPLITTER GEARBOX ASSEMBLY
REF PART QTY DESCRIPTION
A 1043025 1 Complete gearbox
1 NSS 1 Gearbox housing
2 NSS 2 Retaining ring
3 1032401 3 Seal, 35 x 72 x 10
4 NSS 1 Through shaft
5 NSS A/R Shim, 62 x 72 x .25
6 NSS A/R Shim, 62 x 72 x .5
7 NSS A/R Shim, 62 x 72 x 1.0
8 1032448 3 Tapered roller bearing, 30207
9NSS115T Gear
10 NSS 1 22T Gear
11 NSS 1 Snap ring, 35 x 2.5
12 NSS 1 Input shaft
13 NSS A/R Shim, 35.25 x 48 x .25
14 NSS A/R Shim, 35.25 x 48 x .5
15 NSS A/R Shim, 35.25 x 48 x 1.0
REF PART QTY DESCRIPTION
16 NSS 1 Spacer, 41.5 x 47.5 x 8.3
17 NSS 2 Snap ring, 40 x 2.5
18 20890 1 Ball bearing, 6207
19 NSS 4 M8 Lock washer
20 NSS 4 M8-1.25P x 16mm HHCS
21 NSS 1 Cover
22 27326 1 3/8 NPT Solid plug
23 NSS A/R Shim, 42.25 x 51.75 x .25
24 NSS A/R Shim, 42.25 x 51.75 x .5
25 NSS A/R Shim, 42.25 x 51.75 x 1
26 39325 1 3/8 Vent plug (Not shown)
NSS Not Serviced Separately
A/R As Required
HHCS Hex Head Cap Screw
