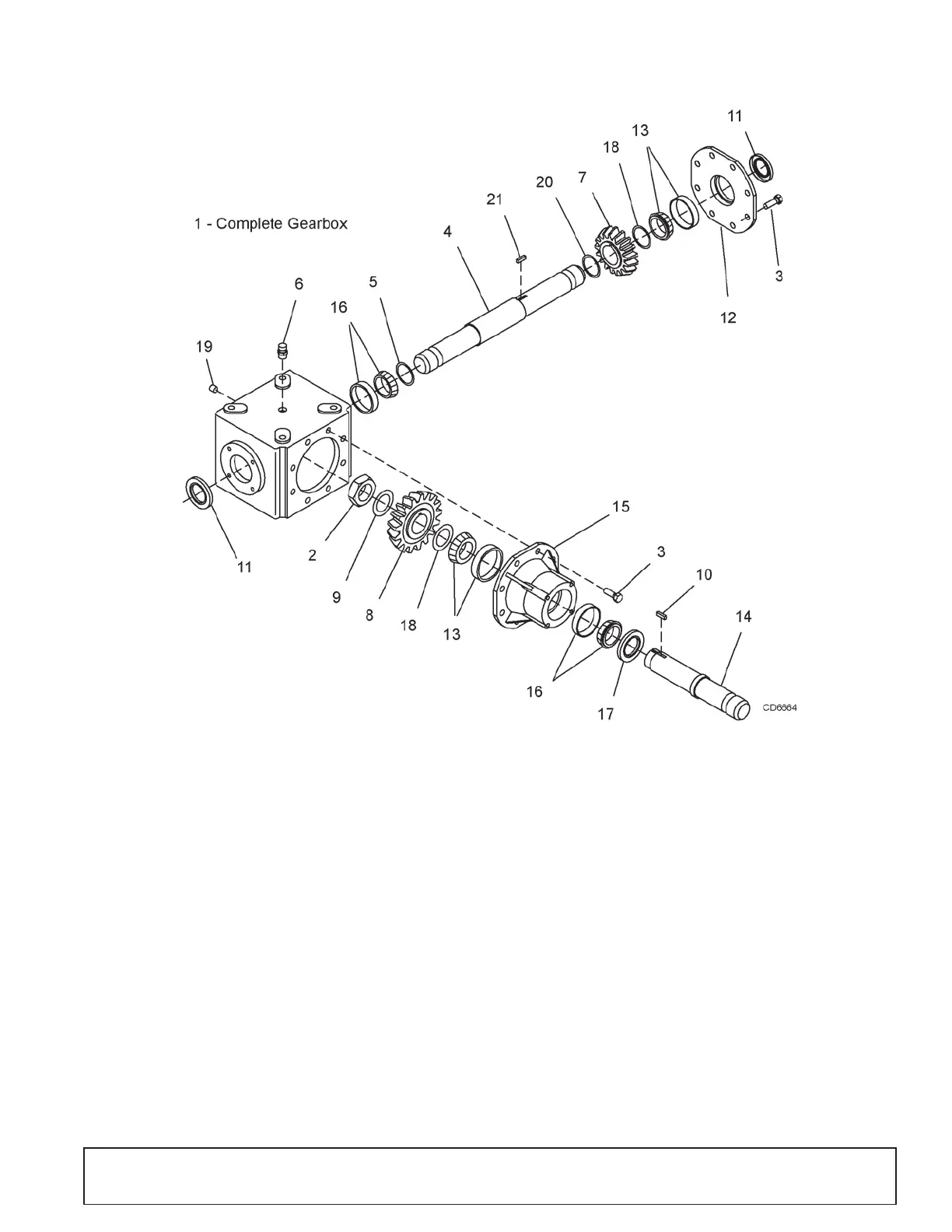

DS10.40E SPLITTER GEARBOX ASSEMBLY
REF PART QTY DESCRIPTION
1 1008192 -- Complete gearbox
2 1008130 1 Lock nut
3 39274 * 16 M10 x 1.5 x 22 mm Cap screw
4 1008131 1 Through shaft 1-3/4 20 spline
5 57456 1 Shim 45.3 x 65.3 x 2.5
6 39325 1 3/8 Vent plug
7 1008132 1 Crown gear, 27 teeth
8 1008133 1 Pinion gear, 18 teeth
9 1008134 1 Shim 45.3 x 65.3 x 1
10 39402 1 Key, 14 x 9 x 40
11 1008135 2 Seal, 45 x 72 x 8
REF PART QTY DESCRIPTION
12 1008136 1 Cover
13 1008148 2 Bearing cup and cone
14 1008149 1 Input shaft 1-3/4 20 spline
15 1008151 1 Housing extension
16 39408 2 Bearing cup and cone
17 39412 1 Seal 52 x 85 x 10
18 58751 3 Shim kit 45.3 x 65.3
19 27326 * 4 3/8 NPT Solid plug
20 1008154 1 Spacer 45.3 x 60.3 x 5
21 1008155 1 Key, 14 x 9 x 35
* Standard hardware, obtain locally
