40 Parts
MAN1256 (3/23/2018)

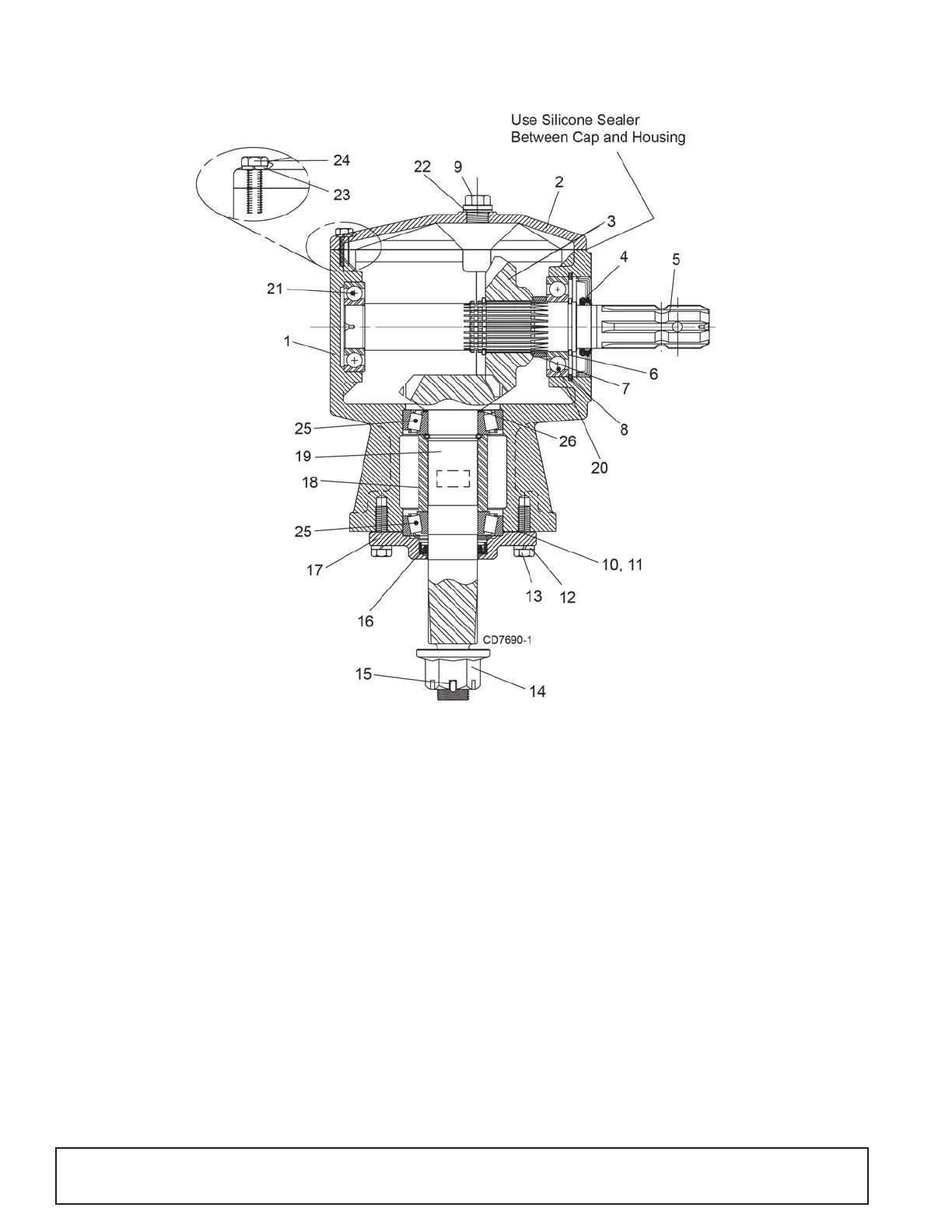

DS8.30E SPINDLE GEARBOX ASSEMBLY
REF PART QTY DESCRIPTION
A 1032585RP 1 Gearbox repair assembly
1NSS1Housing
2 1019632 1 Inspection cover
3 NSS 1 22 Tooth gear
4 1018327RP 1 Input seal
5 NSS 1 Input shaft
6 NSS 1 Retaining ring
7 NSS 1 Gear spacer
8 NSS 1 Retaining ring
9 1011780RP 1 Vent plug and washer
10 1018329 A/R Output gasket (0.30)
11 1018330 A/R Output gasket (0.13)
12 NSS 4 Lock washer
13 NSS 4 M10-1.5P x 25 HHCS
14 1018331 1 1" - 14 Slotted flange nut
15 NSS 1 Cotter pin
REF PART QTY DESCRIPTION
16 1018328RP 1 Output seal
17 1038357 1 Output cap
18 NSS 1 Output bearing spacer
19 NSS 1 Output shaft and pinion
20 1018326RP 1 Ball bearing
21 1018325RP 1 Ball bearing
22 NSS 2 Sealing washer w/plug
23 NSS 6 Lock washer
24 NSS 6 M8-1.5P x 25 HHCS
25 57478 2 Bearing cup and cone
26 1032963 1 Shim Kit
NSS Not Serviced Separately
A/R As Required
HHCS Hex Head Cap Screw
