Woods DS8.30E - Page 41

Parts 41
MAN1256 (3/23/2018)

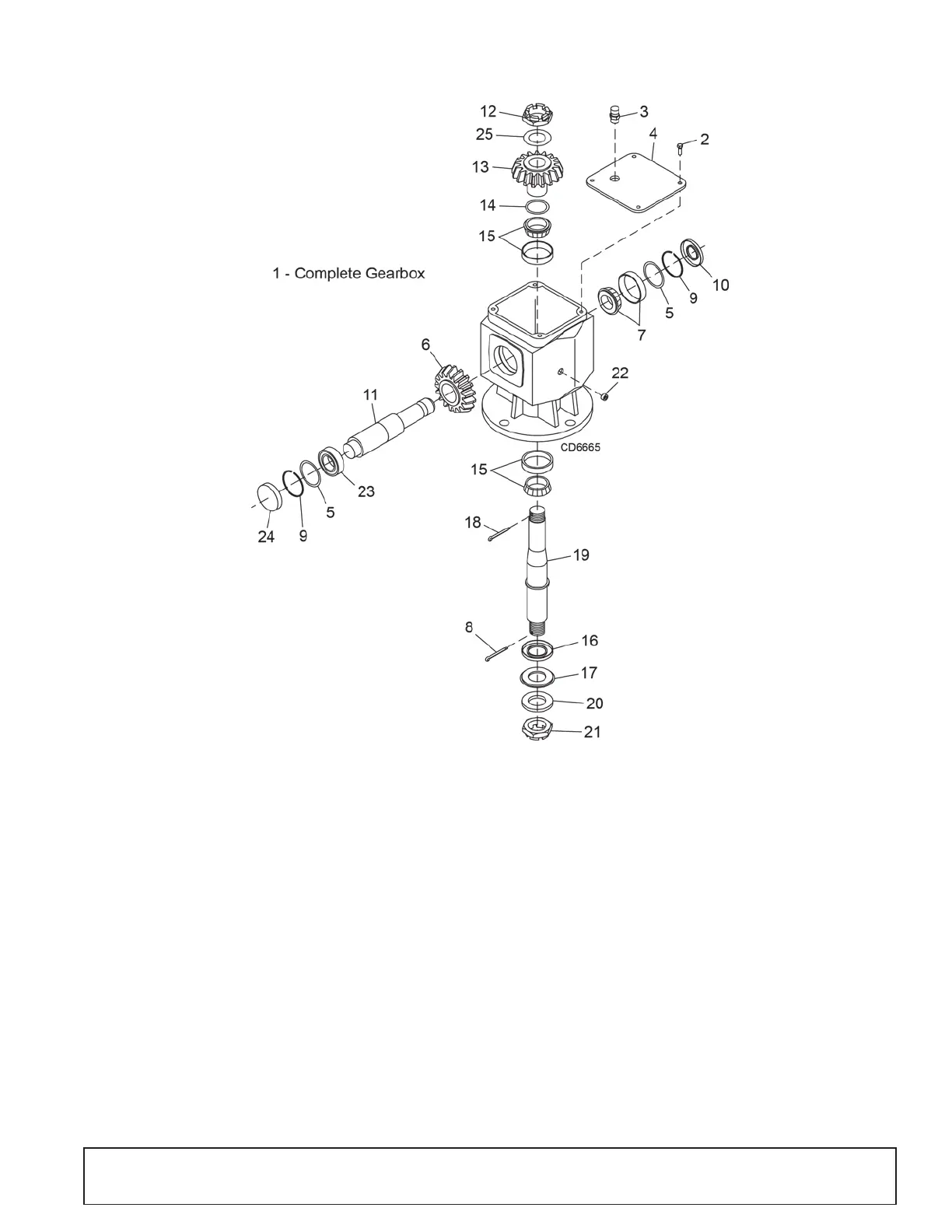

DS10.40E SPINDLE GEARBOX ASSEMBLY
REF PART QTY DESCRIPTION
1 58803 1 Complete gearbox
2 57150
* 6 M8-1.25P x 14 mm HHCS
3 57076 1 1/2 Vent plug
4 57139 1 Cover
5 57328 1 Shim kit, 60.3 x 71.7
6 39424 1 Crown gear
7 57462 1 Bearing, cup & cone
8NSS
* 1 Cotter pin, B6 x 60 mm
9 57466 2 Snap ring
10 57463 1 Seal, 35 x 72 x 10
11 57147 1 Input shaft, 1-3/8 6 spline
12 39261 1 M30-1.5P Castle nut
13 39418 1 Pinion gear
14 57471 1 Shim kit, 50.3 x 70.3
15 39263 2 Bearing, cup & cone
REF PART QTY DESCRIPTION
16 39289RP 1 Seal, 50 x 90 x 10
17 57338 1 Screen protection
18 NSS * 1 Cotter pin, B4 x 55 mm
19 57191 1 Output shaft
20 39322 1 Flat washer, 31 x 56 x 4
21 39323 1 M30-2.0P castle nut
22 27326 1 3/8 NPT Solid plug
23 20890 1 Ball bearing
24 57374 1 Seal, 72 x 10
25 57094 1 Shim, 44 x 30.3 x 1
NSS Not Serviced Separately
HHCS Hex Head Cap Screw
