36 Parts
MAN0875 (2/8/2011)

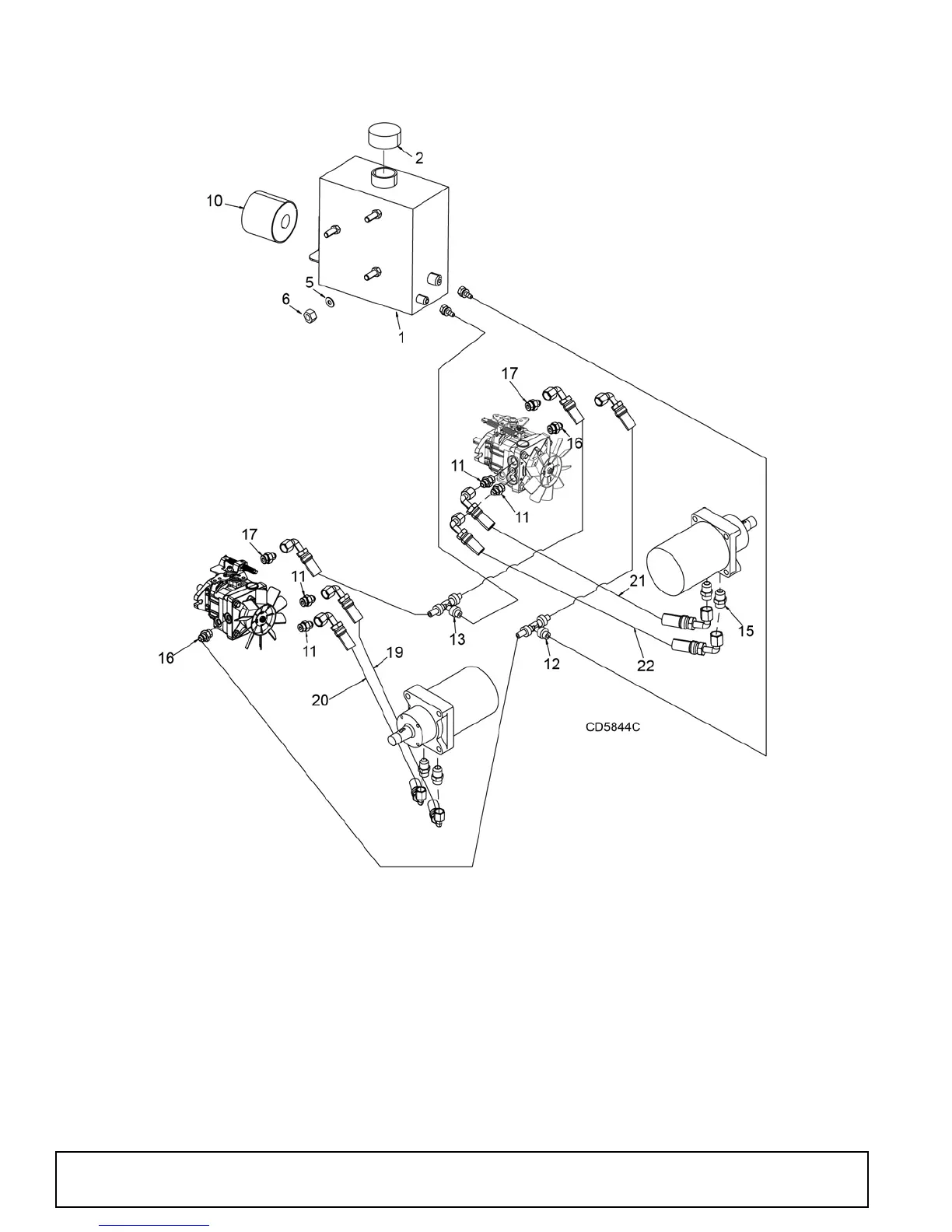

HYDRAULIC RESERVOIR & HOSES
PARKER® PUMPS
REF PART QTY DESCRIPTION
1 75477 1 Hydraulic reservoir
2 75489 1 Cap w/breather
5 838 * 3 3/8 Lock washer
6 59077 * 3 3/8 NC Center lock nut
10 75527 1 Filter, hydraulic oil
11 61 4 Adapter, 3/4 JICM x 3/4 ORBM
12 75482 1 Hose assembly - suction
13 75483 1 Hose assembly - Case drain
15 316016 4 Adapter, 3/4 JICM x 7/8 ORBM
REF PART QTY DESCRIPTION
16 315031 2 Adapter, 9/16 ORBM x 3/4 JICM
17 62367 2 Elbow, 9/16 ORBM x 9/16 JIMCM
19 75481 1 Hose - Right, top pump front motor
20 75480 1 Hose - Right, bottom pump back
motor
21 75478 1 Hose - Left, top pump back motor
22 75479 1 Hose - Left, bottom pump front motor
* Standard hardware, obtain locally
(Rev. 6/18/2013)
