Woods FZ23B - Brake Assembly

42 Parts
MAN0875 (2/8/2011)

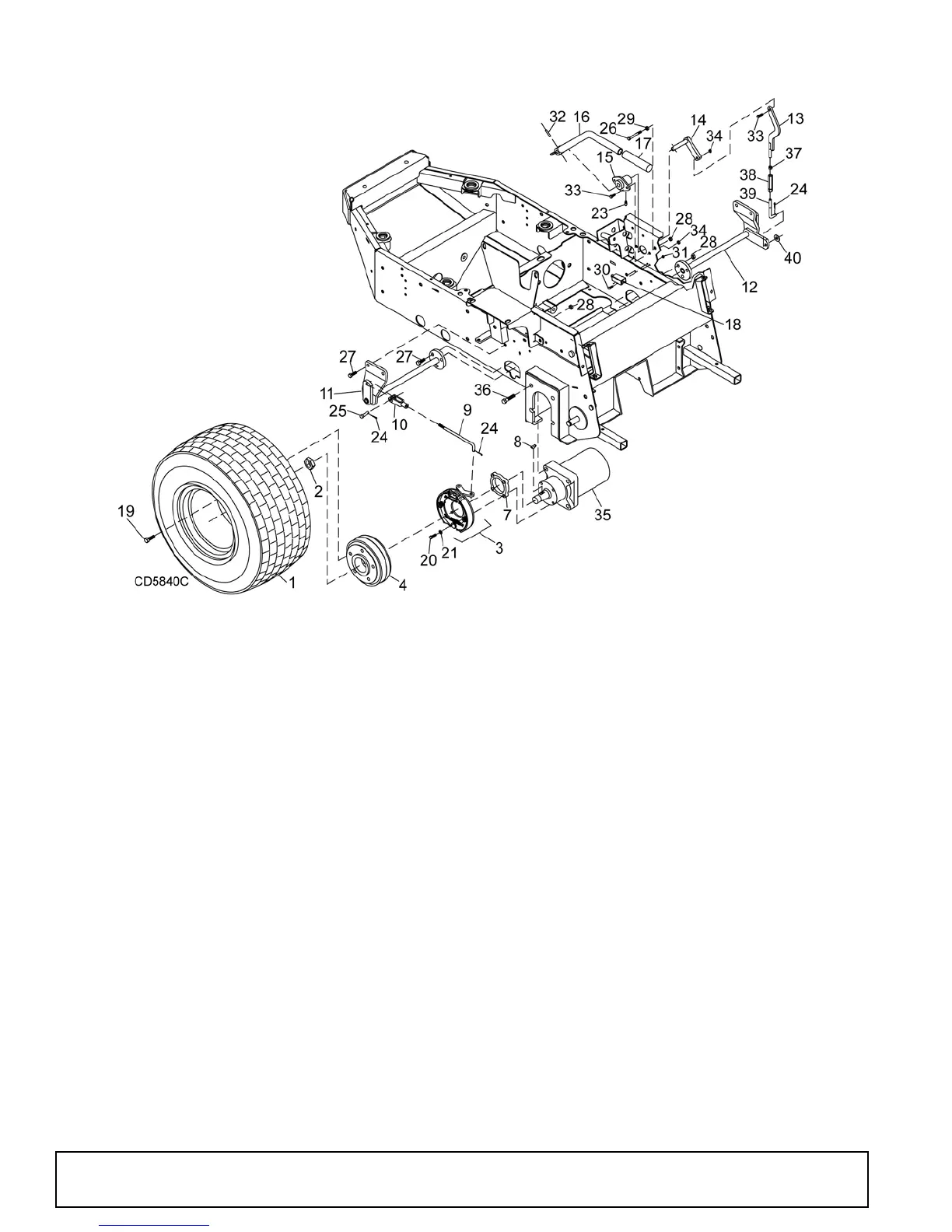

BRAKE ASSEMBLY
REF PART QTY DESCRIPTION
1 73955 2 23 x 10.50 Turf tire & wheel -or-
1 78055 2 23 x 10.50 Low pressure knobby tire
& wheel -or-
1 74093 1 23 x 10.50 Chevron tire & wheel
(right)
1 74097 1 23 x 10.50 Chevron tire & wheel (left)
1 75101 23 x 10.50–12 Turf tire only
1 78070 23 x 10.50–12 Low pressure knobby
tire only
1 75102 23 x 10.50 Chevron tire only
1 78068 2 12 In. spoked wheel rim
2 06541900 2 1 NF Hex patch lock nut
3 75581 2 Brake repair kit (includes shoes,
springs, retainers, and keeper studs
for one wheel)
4 75579 2 Brake drum
7 75580 2 Adapter plate
8 ----- * 2 Key, woodruff 3/16 x 1
9 73440 2 Brake actuator bar
10 70022 3 Yoke
11 73829 1 Brake rod - RH
12 73439 1 Brake rod - LH
13 73442 1 Bar, parking brake
14 73710 1 Brake actuator
15 01522000 1 Sintered bushing
16 73441 1 Parking brake lever
17 75393 1 Parking brake lever - Grip
18 71148 1 Brake switch
19 1258 * 10 Wheel bolt, 1/2NF x 1-1/8
20 6250 * 8 5/16 NC x 1-1/4 HHCS - GR5
21 2472 * 8 5/16 Standard lock washer
* Standard Hardware, Obtain Locally
N/S - Not Serviced Separately
REF PART QTY DESCRIPTION
(Rev. 11/7/2013)
