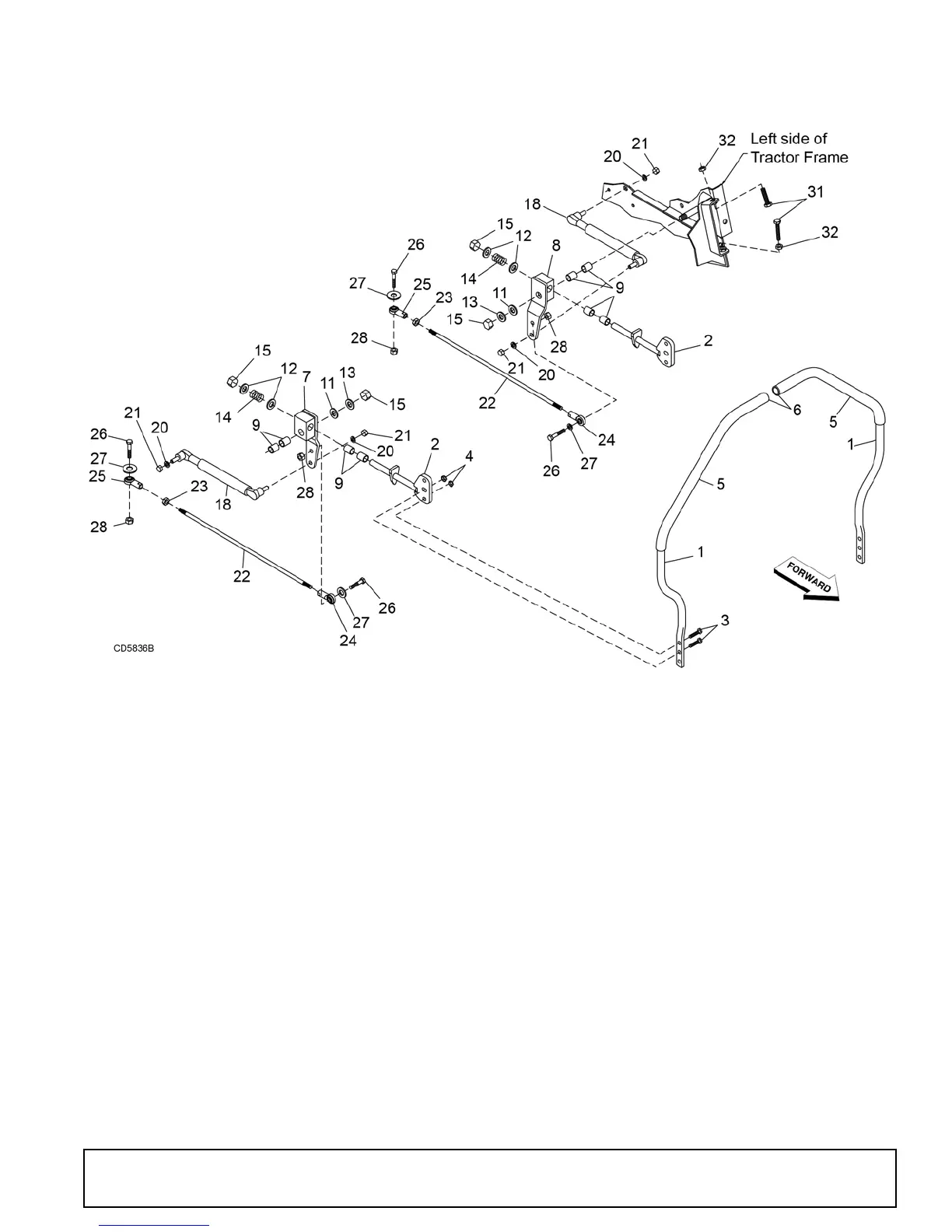

STEERING ASSEMBLY
REF PART QTY DESCRIPTION
1 73023 2 Steering lever (includes items 5 & 6)
2 73030 2 Steering lever mount
3 73178 4 5/16 NC x 1.0 Whiz bolt
4 73163 4 5/16 NC Flanged lock nut
5 09246800 2 Foam handle grip
6 09211400 2 Vinyl cap
7 75458 1 Steering pivot - right
8 75459 1 Steering pivot - left
9 71323 8 1/2 Nylon bushing
11 70423 2 Nylon washer
12 72886 4 Nylon washer
13 3598 * 2 1/2 SAE Washer
14 70162 2 Compression spring
15 765 * 4 1/2 NC Lock nut
REF PART QTY DESCRIPTION
18 75488 2 Dampener
20 2472 * 4 5/16 Standard lock washer
21 30515 4 M8 x 1.25P Hex nut
22 75511 2 Steering control link
23 33654 2 5/16 NF Jam nut
24 08960700 2 5/16 NF RH Female rod end
25 09107800 2 5/16 NF LH Female rod end
26 24408 * 4 5/16 NC x 1-1/2 HHCS, GR5
27 4378 * 8 5/16 Standard flat washer
28 6778 * 4 5/16 NC Hex lock nut
31 -------- 4 5/16 NC x 1-1/2 HHCS, GR5
full thread
32 4529 * 4 5/16 NC Hex nut
* Standard hardware, obtain locally
(Rev. 6/18/2013)
