Operation 17
MAN0988 (11/5/2012)

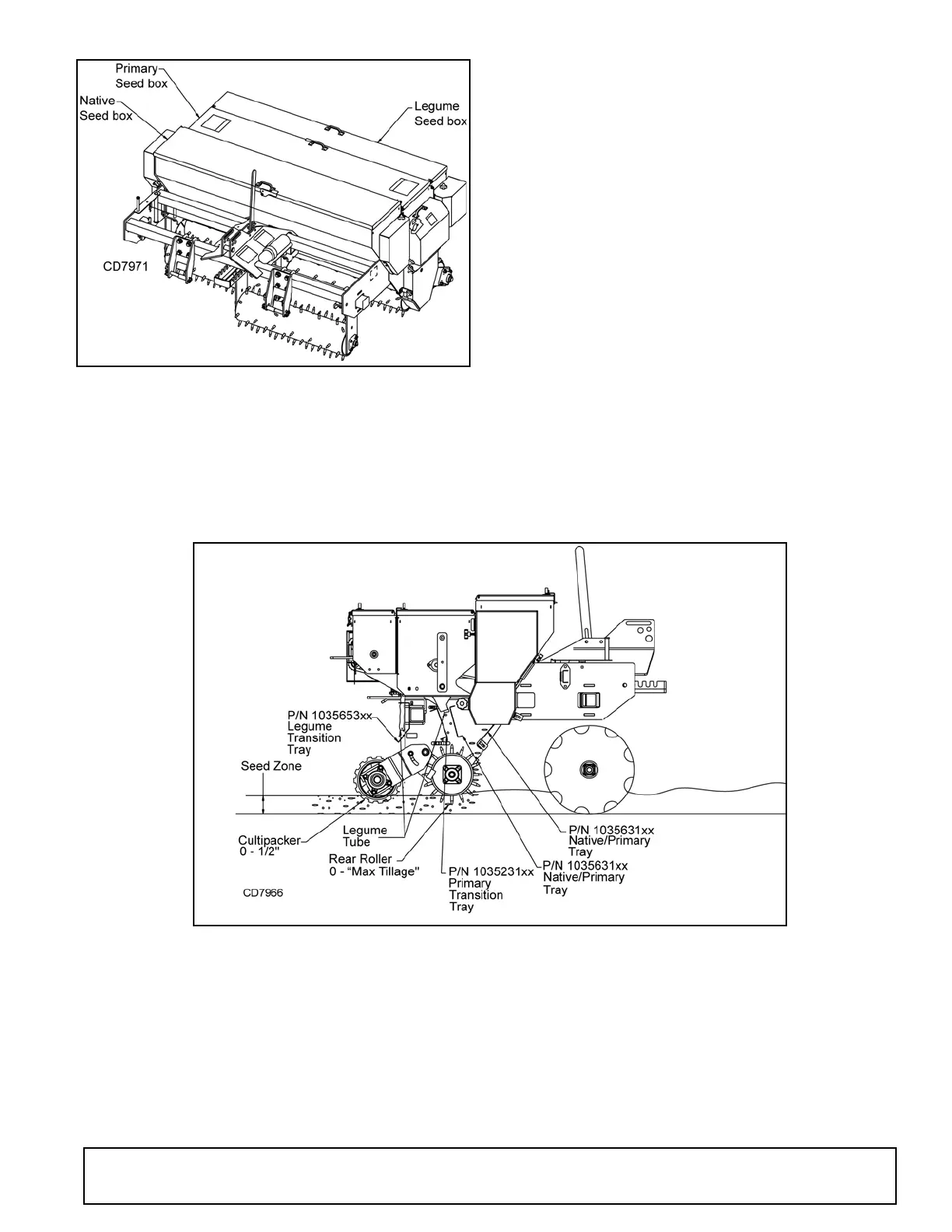

Figure 18. Seed Boxes
IMPORTANT
■ Do not operate seeder in reverse. Operating
seeder in reverse may result in damage to seed
boxes and chain drive system.
Figure 19. Transition Trays
Filling the Seed Box
1. Calibrate seeder and set seed cup rate adjustment
and concaves to the correct position. Start with the
seed cup at a fully closed position and open the
seed cup to the desired fluted roller opening.
NOTICE: The seed cup can be opened further with
seed, but closing the seed cup or concave when
full of seed could result in seed cup damage. If the
seed cup must be restricted with seed in the seed
box, place a piece of cardboard over the seed cup
opening and remove seed in the seed cup by
opening the concave or rotating the seed shaft and
then closing the seed cup.
2. Open the seed box cover and rotate the brace to
hold the cover up while filling the seed box. Place
(Rev. 9/20/2014)
