MAN0988 (11/5/2012)

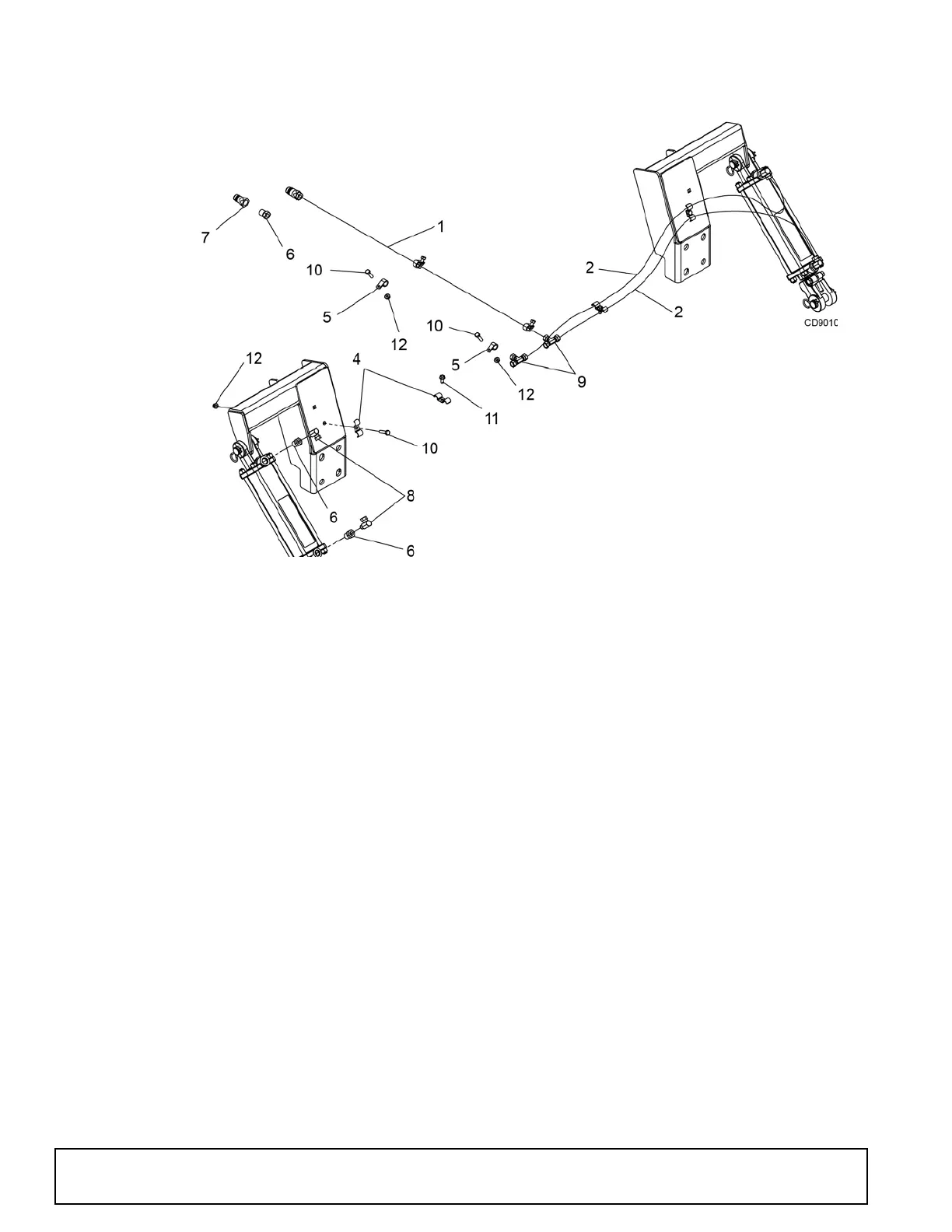

PSS48, PSS60, PSS72, PSS84 TOW KIT HOSE ROUTING
REF PSS48 PSS60 PSS72 PSS84 QTY DESCRIPTION
1 17628 17628 17628 17628 2 1/4 NPT x 108 hose
2 - - 34221 34221 4 1/4 NPT x 65 hose (PSS72 / 84 only)
2 31237 31237 - - 4 1/4 NPT x 47 hose (PSS48 / 60 only)
3 597269 597269 597269 597269 2 Cylinder, 3.0 x 1.25 x 10.0 NPT 8
4 258 258 258 258 4 Feedline clamp
5 74058 74058 74058 74058 4 Clamp steel cushion
6 11893 11893 11893 11893 6 Adapter 1/4 NPTF 1/2 NPTM
7 66511 66511 66511 66511 2 Male quick coupler 1/2 NPT
8 8572 8572 8572 8572 4 1/4 x 1/4 90° elbow
9 31239 31239 31239 31239 2 1/4 swivel union tee
10 6250 6250 6250 6250 * 6 HHCS 5/16 NC x 1-1/4 GR5 ZP
11 W30036 W30036 W30036 W30036 * 2 5/16 NC x 3/4 self tap screw
12 W73163 W73163 W73163 W73163 * 6 Nut whiz 5/16 NC flange
* Standard hardware, obtain locally
NS Not Serviceable
