44 Assembly
MAN0943 (11/1/2013)
END TOW HITCH INSTALLATION
1. Attach lower end tow hitch mount (4) using
carriage bolts (26), and lock nuts (25).
2. Attach tongue lockup bracket (3) using carriage
bolts (26), and locknuts (25).
3. Bolt hitch (1) to tow hitch mount brackets (33)
using cap screws (27) and locknuts (28).
4. Attach hose bracket (13) to shredder using
carriage bolts (26), flat washer (14) and locknuts
(25).
5. Secure tongue (1) to tow hitch mount (4) using cap
screws (27) and locknuts (28).
6. Install safety chain.
7. Store tongue (1) and wire harness as shown,
Figure 56.

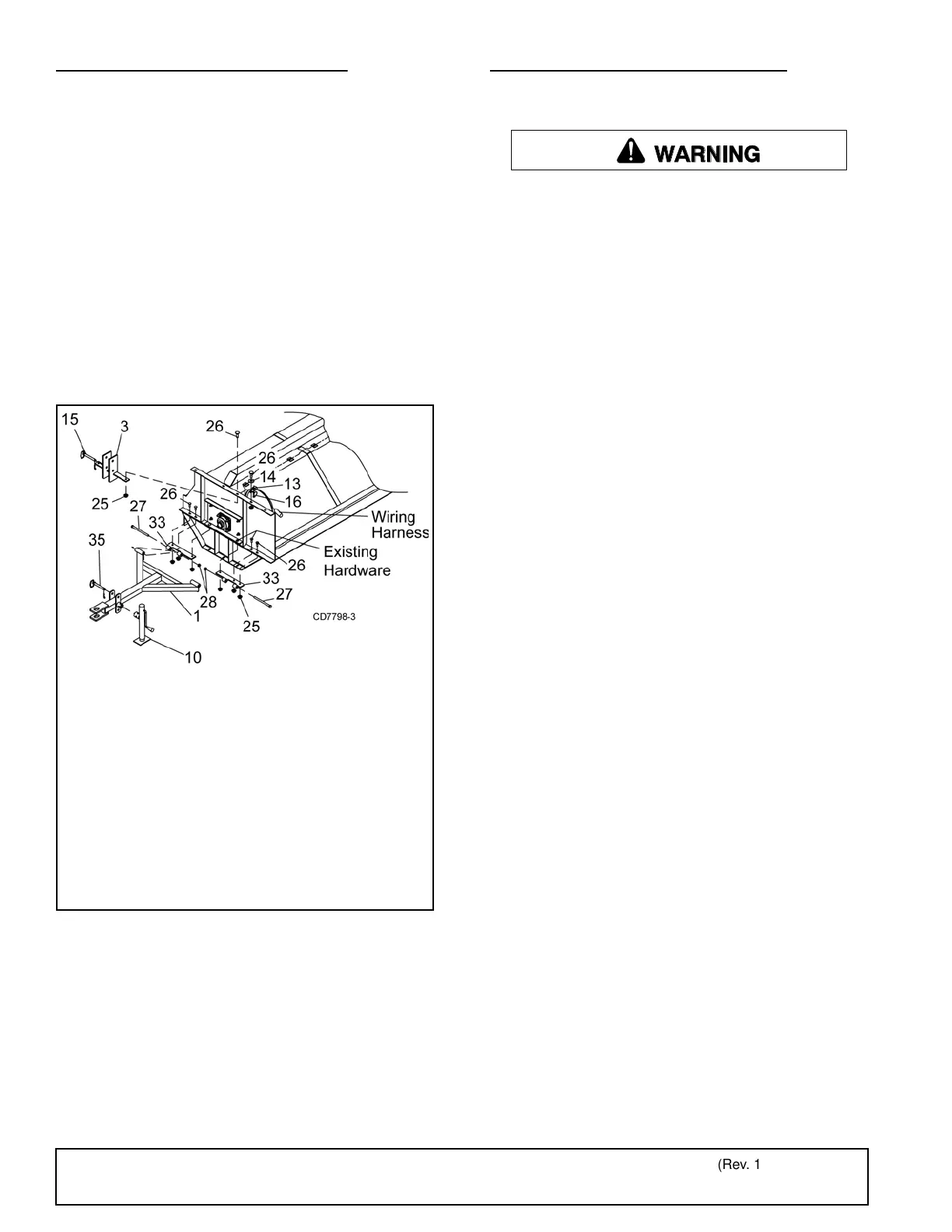

Figure 57. End Tow Hitch Installation
CENTER CUT KIT INSTALLATION
Block Shredder
Never go underneath equipment (lowered to the
ground or raised) unless it is properly blocked and
secured. Never place any part of the body under-
neath equipment or between moveable parts even
when the engine has been turned off. Hydraulic
system leak down, hydraulic system failures,
mechanical failures, or movement of control levers
can cause equipment to drop or rotate unexpect-
edly and cause severe injury or death. Follow Oper-
ator's Manual instructions for working underneath
and blocking requirements or have work done by a
qualified dealer.
To minimize the potential hazards of working under-
neath the shredder, follow these procedures.
1. Place jackstands with a load rating of 2000 lbs or
more under the tubular beams on the shredder
body. A minimum of four jackstands must be
placed under the shredder before working
underneath the unit.
Do not position jackstands under wheels, axles, or
wheel supports. Components can rotate and cause
shredder to fall.
2. Consider the overall stability of the blocked unit.
Just placing jackstands underneath will not ensure
your safety.
The working surface must be level and solid to
support the weight on the jackstands. Make sure
jackstands are stable, both top and bottom. Make
sure shredder is approximately level.
3. With full shredder weight lowered onto jackstands,
test blocking stability before working underneath.
4. If shredder is attached to tractor when blocking, set
the brakes, remove key, and block shredder before
working underneath.
5. Securely block rear tractor wheels, in front and
behind. Tighten tractor lower 3-point arm anti-sway
mechanism to prevent side-to-side movement.
6. Prior to installing optional Center Cutter Kit,
remove Center Deflector.
1. Tongue
3. Tongue Lock Up
13. Hose Bracket
14. 1/2 Flat Washer
15. 3/4 Hitch Pin
25. 1/2 NC Flanged Lock Nut
26. 1/2 NC x 1-1/2 Carriage Bolt
27. 5/8 NC x 9 HHCS
28. 5/8 NC Flanged Lock Nut
33. Lower End Transport Mount
35. Pin
(Rev. 10/30/2014)
