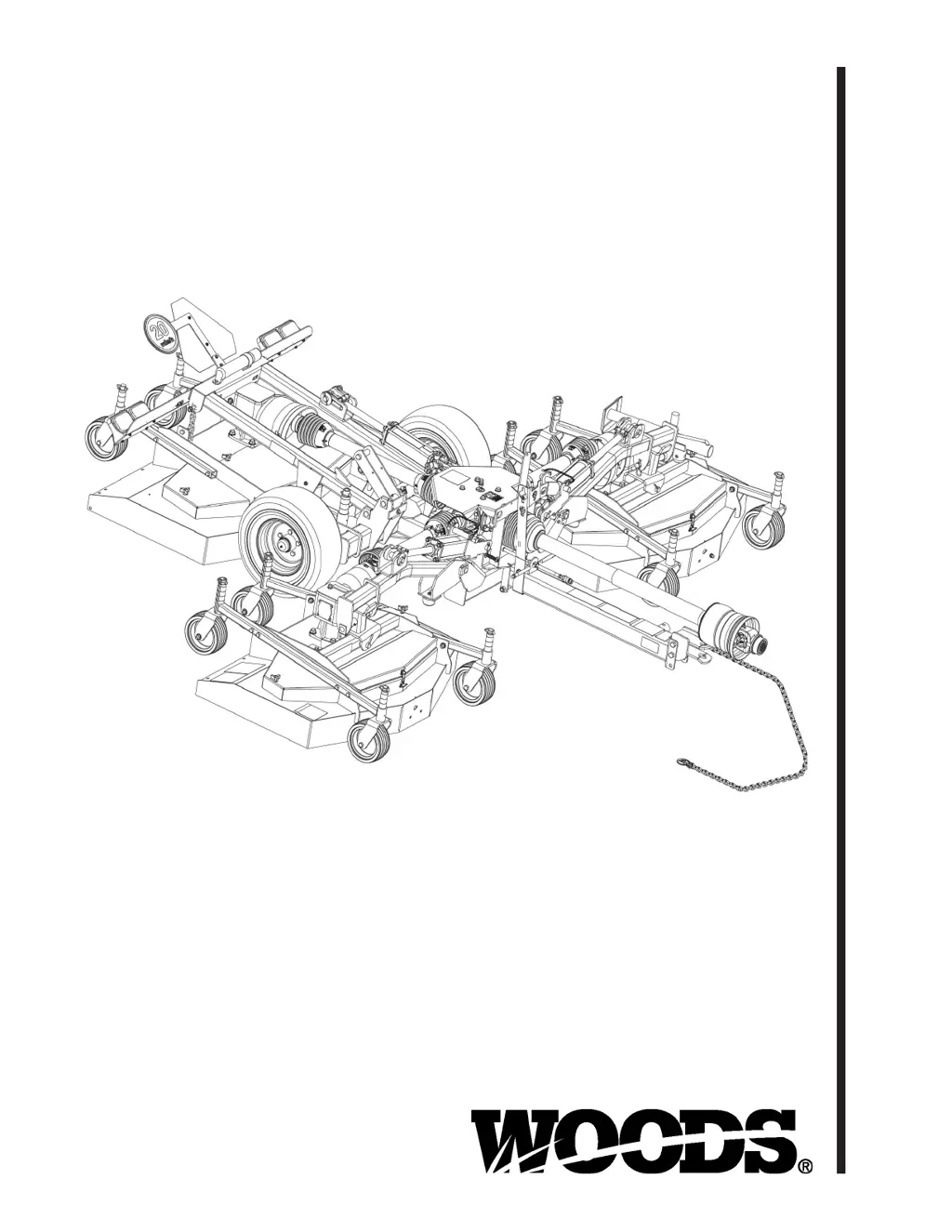

OPER ATOR'S MANUAL

TURF BATWING

MAN0765

(Rev. 6/15/2021)

TBW150C

®

Questions and Answers:

D
davidwellsAug 17, 2025
What to do if Woods Farm Equipment material discharges unevenly?
- R
  renee31Aug 17, 2025
  Uneven discharge of material from your Woods Farm Equipment, resulting in bunches along the swath, can happen if the material is too high or there is too much of it. Reduce ground speed while maintaining 540 RPM at the tractor PTO, or make two passes over the material, raising the mower for the first pass and lowering it for the second, cutting 90 degrees to the first pass. Raise the rear of the mower high enough to permit material discharge. Another cause is wet grass, so allow the grass to dry before mowing and slow the ground speed of the tractor while keeping the engine running at full PTO rpm.
K
Kylie AyalaAug 21, 2025
Why Woods Farm Equipment has streaking conditions in swath?
- T
  tommy55Aug 21, 2025
  Streaking in the swath of your Woods Farm Equipment can occur for a few reasons. One is that the conditions are too wet for mowing, so allow the grass to dry before mowing. Another reason is that the blades are unable to cut that part of the grass pressed down by the path of tractor tires; slow the ground speed of the tractor but keep the engine running at full PTO rpm, cutting lower will help, and adjust tractor tire spacing if possible. Dull blades can also cause streaking, so sharpen or replace them. Finally, a loose blade can be the culprit, so check the blade hardware.
S
Sean SmithAug 25, 2025
What to do if my Woods Farm Equipment belt is damaged?
- C
  chadbentonAug 25, 2025
  A damaged belt on your Woods Farm Equipment, which can be caused by rollover, high shock loads, or installation damage, requires a belt replacement.
C
Christine SimpsonAug 28, 2025
How to fix grass cut higher in center of swath than at edge with Woods Farm Equipment?
- H
  Heather WatsonAug 28, 2025
  If your Woods Farm Equipment is cutting grass higher in the center of the swath than at the edge, it could be due to the height of the mower being higher at the front than at the rear. Adjust the mower height and attitude so that the mower rear and front are within 1/2 inch of the same height. It could also be due to a loose blade, so check the blade hardware.
J
Joshua BradleyAug 31, 2025
How to fix grass cut lower in center of swath than at edge with Woods Farm Equipment?
- L
  Lori DavisAug 31, 2025
  If your Woods Farm Equipment is cutting grass lower in the center of the swath than at the edge, it could be because the height of the mower is lower at the front than at the rear. To resolve this, adjust the mower height and attitude so that the mower rear and front are within 1/2 inch of the same height. Another possible cause is a loose blade, so check the blade hardware.
T
Tyler AlexanderSep 3, 2025
What causes Woods Farm Equipment belt rollover?
- T
  Timothy EllisSep 3, 2025
  Belt rollover on your Woods Farm Equipment can be caused by several factors. The pulley may be misaligned, requiring realignment. The belt could be damaged, necessitating replacement. A foreign object may be in the pulley groove; inspect all pulley grooves for rust, paint, or weld spots and remove them. Finally, the pulley groove could be worn, requiring pulley replacement.
B
bmcguireSep 6, 2025
Why Woods Farm Equipment belt breakage?
- R
  Raymond GloverSep 7, 2025
  Belt breakage in your Woods Farm Equipment can occur due to high shock loads. To prevent this, avoid abusive mowing and avoid hitting the ground or large obstructions. Another cause is the belt coming off the drive; check the pulleys for foreign material in the grooves and avoid hitting solid objects or the ground.
C
Cheryl GarrisonSep 10, 2025
What causes frayed edges on Woods Farm Equipment belt cover?
- P
  Phillip PerezSep 10, 2025
  Frayed edges on the belt cover of your Woods Farm Equipment can be caused by a misaligned belt. Re-align the belt, ensuring it does not rub against any other part while running. Another cause is a misaligned pulley. Inspect to ensure the belt is running in the center of the backside idler, and shim the idler as necessary to align it.

Woods TURF BATWING TBW12.20 Specifications

General

Brand	Woods
Model	TURF BATWING TBW12.20
Category	Lawn Mower
Language	English

Summary

SAFETY RULES

SAFETY & INSTRUCTIONAL DECALS

DANGER - ROTATING DRIVELINE HAZARDS

Warning about driveline hazards and required precautions for safety.

DANGER - THROWN OBJECTS AND BLADE HAZARDS

Warning about mower blade hazards and potential for thrown objects.

WARNING - OPERATOR FALLING HAZARDS

Safety advice regarding operator stability and ROPS use.

WARNING - RAISED EQUIPMENT CRUSH HAZARDS

Safety precautions for working under raised equipment.

WARNING - PTO SPEED LIMITATION

Warning about exceeding PTO speed limits and associated risks.

OPERATION

PRE-OPERATION CHECK LIST

OWNER SERVICE

CHAIN SHIELDING AND HYDRAULIC SAFETY

Safety related to chain shielding and hydraulic fluid hazards.

BELT SERVICING

BLADE SERVICING

CHAIN SHIELDING

DANGER - CHAIN SHIELDING FOR THROWN OBJECTS

Recommendation for chain shielding to prevent thrown objects.

TROUBLESHOOTING

MOWING CONDITIONS TROUBLESHOOTING

Troubleshooting common mowing issues and their solutions.

BELT CONDITIONS TROUBLESHOOTING

DEALER SERVICE

BLADE SPINDLE REPAIR

GEARBOX REPAIR AND SEAL REPLACEMENT

UNIVERSAL JOINT REPAIR

ASSEMBLY INSTRUCTIONS

DEALER CHECK LISTS

BOLT TORQUE CHART

WARRANTY INFORMATION
