60 Parts
MAN0826 (8/31/2010)

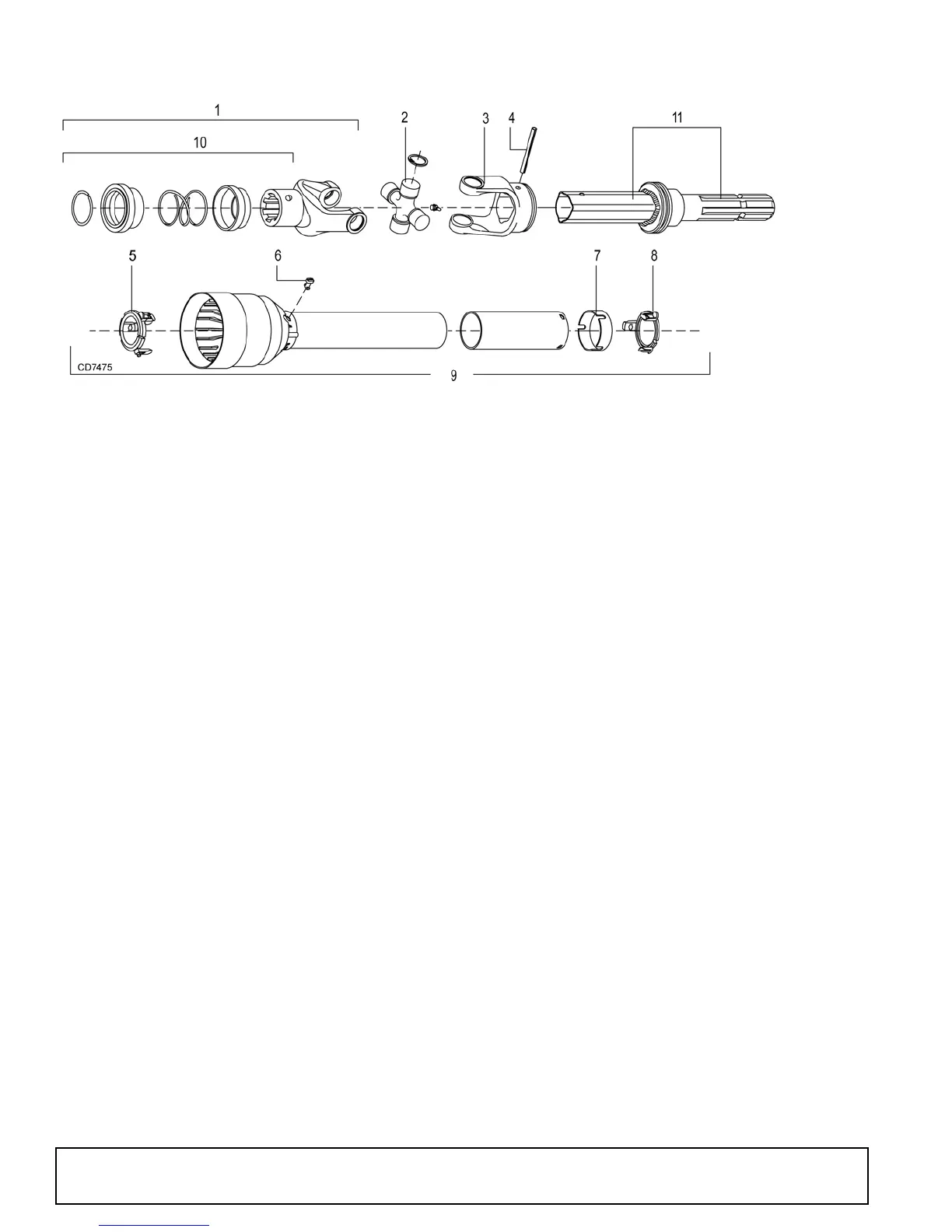

JACKSHAFT DRIVE ASSEMBLY
REF PART QTY DESCRIPTION
A 1011759 Complete jackshaft drive assembly
1 1028775 1 Complete collar yoke
2 36990 1 U-Joint repair kit
3 1011756 1 Yoke, outer
4 1001330 1 Flexible pin
5 1028776 1 Outer bearing ring
REF PART QTY DESCRIPTION
6 30922 6 Retainer, shield
7 1011757 1 Centering ring
8 1011755 1 Inner bearing ring
9 1011754 1 Shield, complete (includes 5, 6, 7 & 8)
10 1001340 1 Lock collar repair kit
11 NSS 1 Jackshaft
NSS Not Serviced Separately
