Woods Turf Batwing TBW204 User Manual

Parts 63
MAN0826 (8/31/2010)

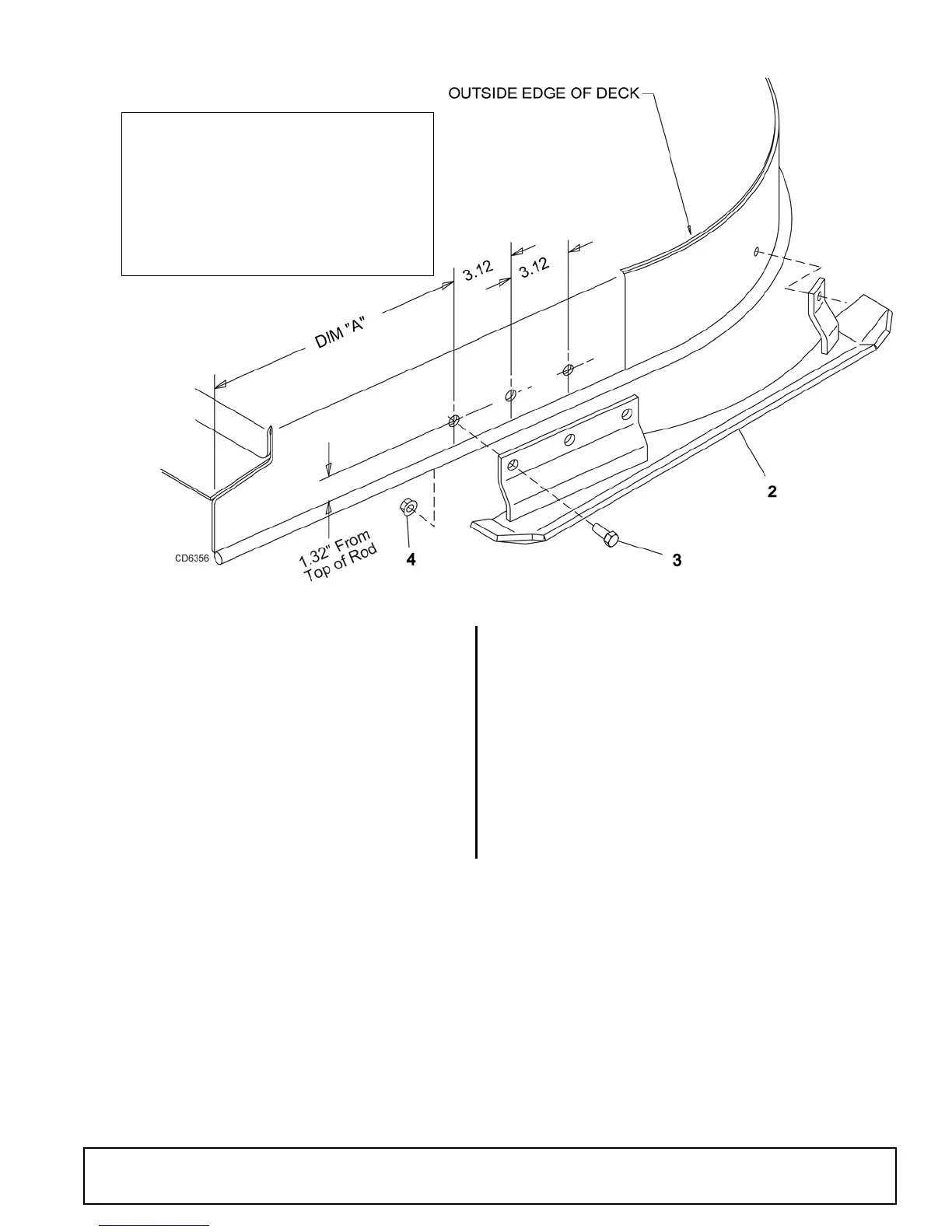

SKID SHOE KIT (OPTIONAL)
REF PART QTY DESCRIPTION
10041111 Skid shoe kit
(contains 1 left and 1 right skid shoe)
1 1004105 1 Skid shoe, left
2 1004106 1 Skid shoe, Right
3 6100 * 1/2 NC x 1-1/4 Hex head cap screw
GR5
4 11900 * 1/2 NC Flange lock nut
* Standard hardware, obtain locally
INSTALLATION INSTRUCTION
1. Locate and drill three 17/32” holes using the dimensions
from the drawing and table above.
2. Secure skid shoe with three cap screws (3) and flange
washers (4).
3. Use the skid shoe as a guide and drill the remaining
hole. Make sure skid shoe is parallel to the top of the
deck.
Mower Deck DIM “A”
TBW144 Wing Deck (Outside) 18.75
TBW144 Wing Deck (Inside) 9.5
TBW144 Rear Deck 7.25
TBW180 Wing Deck 7.25
TBW180 Rear Deck 9.50
TBW180 All Decks 9.5

Woods Turf Batwing TBW204 Specifications

General

Cutting Width	204 inches
Power Source	Tractor PTO
Weight	2, 200 lbs
Deck Material	Steel
Number of Blades	6
Transport Width	102 inches
Blade Tip Speed	15, 000 fpm
Deck Construction	Steel
