Woodward Digital Reference Units - Chapter 3. Applications; Figure 4-1. Wiring Applications

Digital Reference Unit Manual 82006
8 Woodward
Chapter 3.
Applications

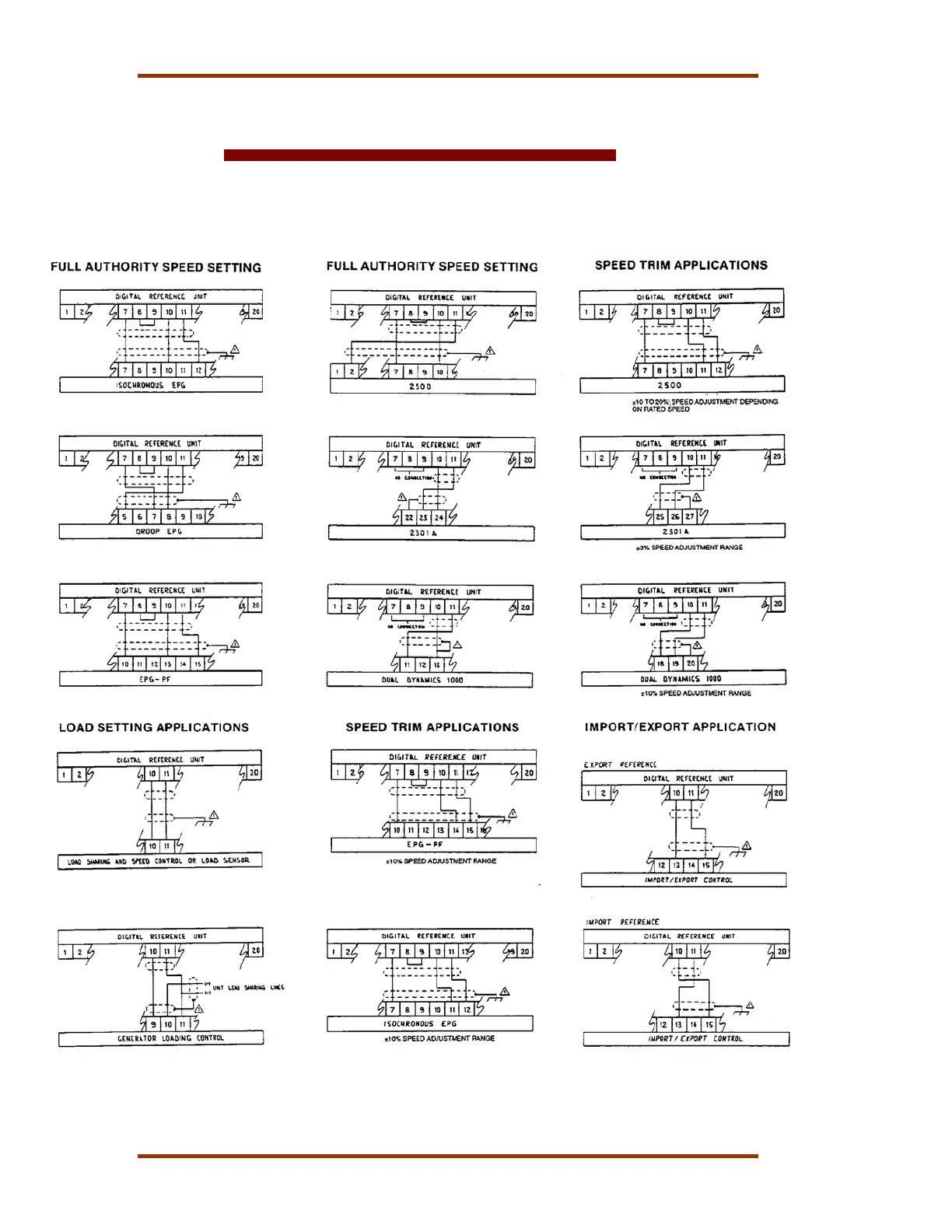

The wiring diagrams in Figure 4-1 show some of the methods used to connect
the reference unit to various electronic speed/load controls. Use of the unit is not
limited to the installations shown.
Figure 4-1. Wiring Applications
