Woodward easYgen-3000XT Series User Manual

6.2 Multiple Genset Applications
Overview
In a multiple-unit mains parallel application, all easYgens need the same signals for:
• Mains voltage and current•
• Reply and release signal of the MCB•
The open and close contacts from all controls must be wired in parallel.
easYgen-3000XTeasYgen-3000XTeasYgen-3000XT
Modbus RTU/Ethernet
CAN bus / Modbus TCP
LOAD
Dis./Analog Inputs
Voltage (3Ph)
Current (1Ph)
Open/Close
Voltage (3Ph)
Current (1Ph)
Open/Close
GCB Control
Current (3Ph)
MPU/ECU
Voltage (3Ph)
Dis./Analog Inputs
Engine Start/Stop
GCB Control
Current (3Ph)
MPU/ECU
Voltage (3Ph)
MCB Control
Dis./Analog Inputs
Engine Start/Stop
GCB Control
Current (3Ph)
MPU/ECU
Voltage (3Ph)
Engine Start/Stop
PLC
Optional
Voltage (3Ph)
Current (1Ph)
Open/Close
Voltage (3Ph) Voltage (3Ph) Voltage (3Ph)
LOAD

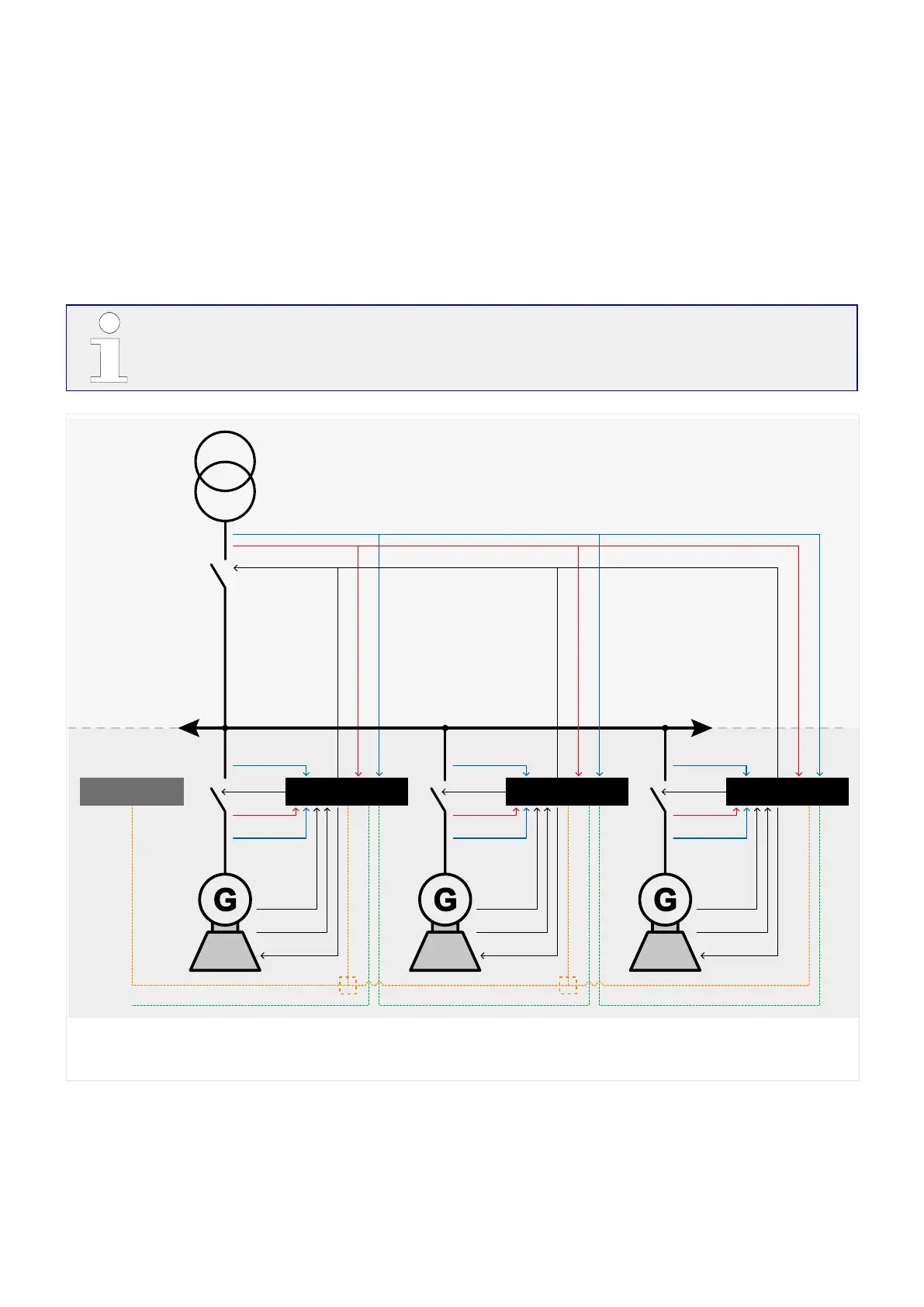

Fig. 216: Multiple genset application (schematic)
6.2.1 Con󰍏guration Example: Multiple Genset
Con󰈠guration example
The following example describes the con󰍓guration of a typical mains parallel operation
with import/export power control at the interchange point and load-dependent start/stop.
689easYgen-3000XT SeriesB37574
6 Application Field
6.2 Multiple Genset Applications
Released
