25

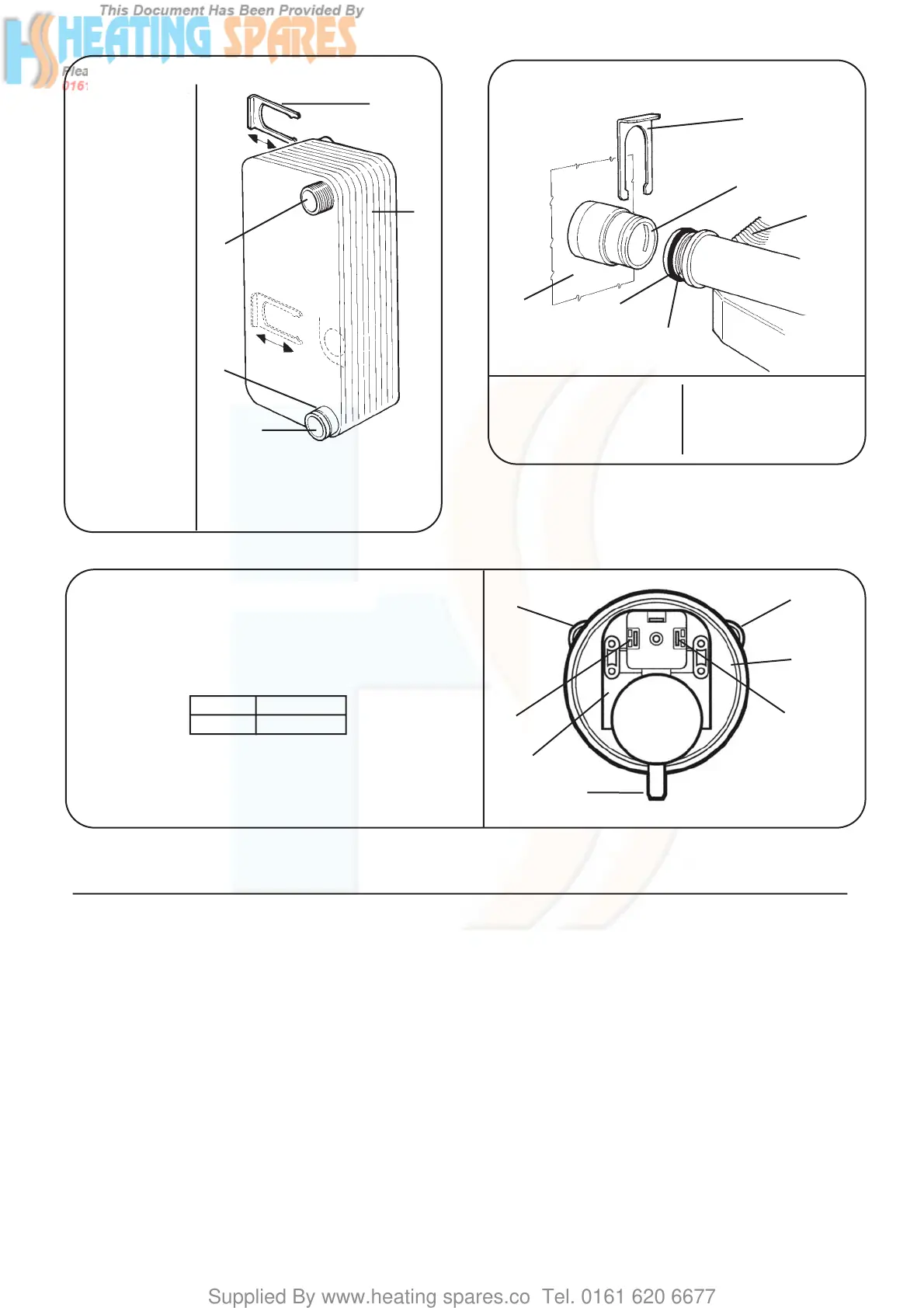

Fig 59-Domestic Hot Water Heat Exchanger
Fig 60-Primary Heat Exchanger Fixing
Fig 61-Air Flow Switch
5
1
2
4
3
1. Fixing Clip (2)
2. Domestic Hot
Water Heat
Exchanger
3. Cold Water Inlet
4. O-Ring
5. Domestic Hot
Water Flow
6
1
2
5
3
4
1. Fixing Clip (2) 5. O-Ring
2. Clip Locating Channel 6. Appliance Back Panel
3. Primary Heat Exchanger
4. Clip Locating Groove
4
5
5
1
2
3
1. Air Pressure Switch
2. Electrical Connection
3. Electrical Connection
4. Air Flow Sensing Tube Connections
REAR + Positive
FRONT Negative
5. Plastic 'horseshoe' mounting bracket
-
5
