BOILER LOCATION & CLEARANCES
BOILER LOCATION &
CLEARANCES

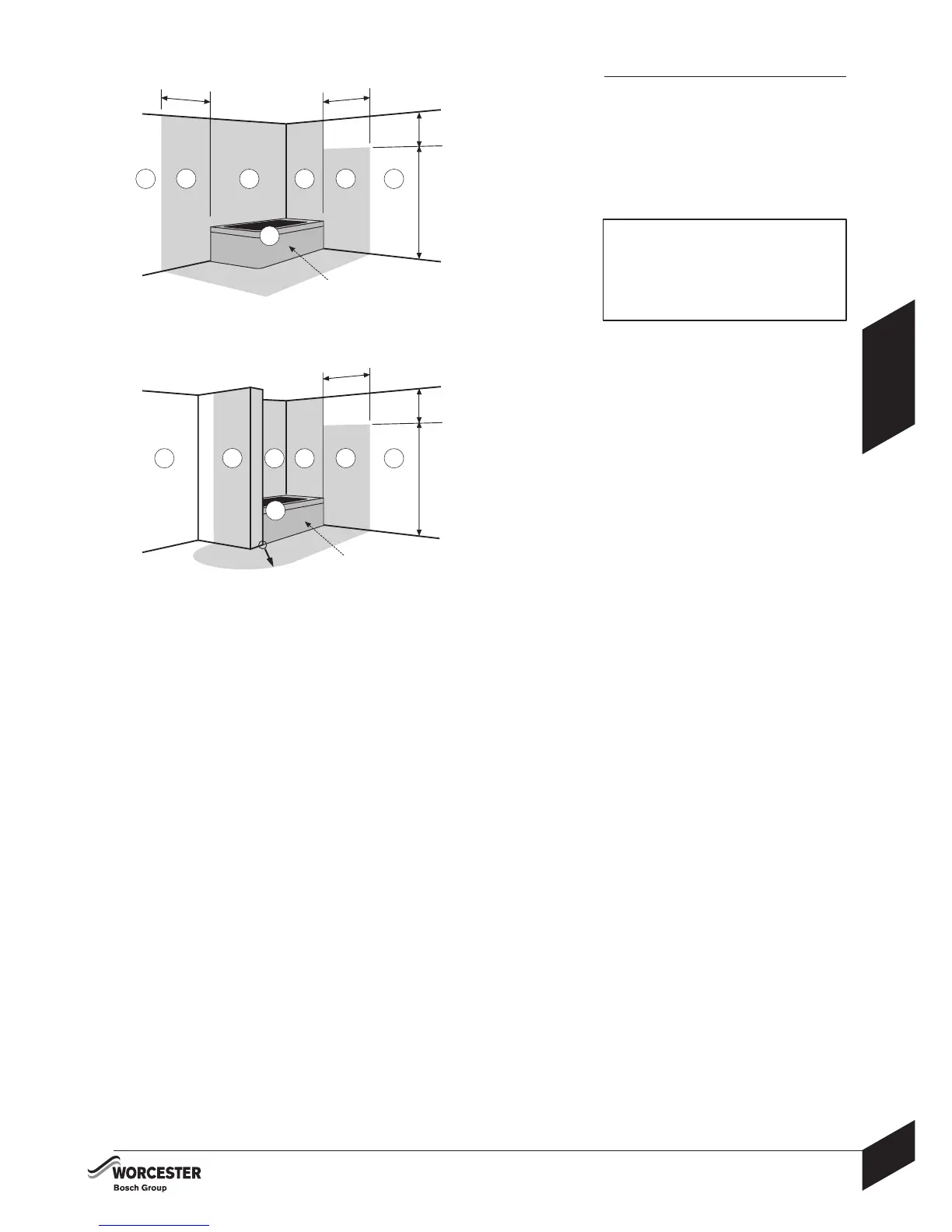

SHOWER / BATHROOMS:
The boiler must not be installed in zones 0, 1 or 2
or in the shaded areas shown on the diagrams
opposite.
IMPORTANT: any switch or appliance control
using mains electricity must not be able to
be touched by a person using the bath or
shower.
Electrical switches, fused spur and socket
outlets must not be situated in the bathroom.
600mm
2250mm
600mm
750mm
A
1 1
2
3
2
3
0
2250mm
750mm
3
600mm
600mm radius
A
A - Bath or shower cubicle (zone 0)
1 1
22
3
0
