INSTALLATION
INSTALLATION & SERVICING INSTRUCTIONS
19
MOUNTING FRAME CONNECTIONS
6-720-611-730b (12.05)
CAUTION: ISOLATE THE MAINS GAS
SUPPLY BEFORE STARTING ANY WORK
AND OBSERVE ALL RELEVANT SAFETY
PRECAUTIONS.

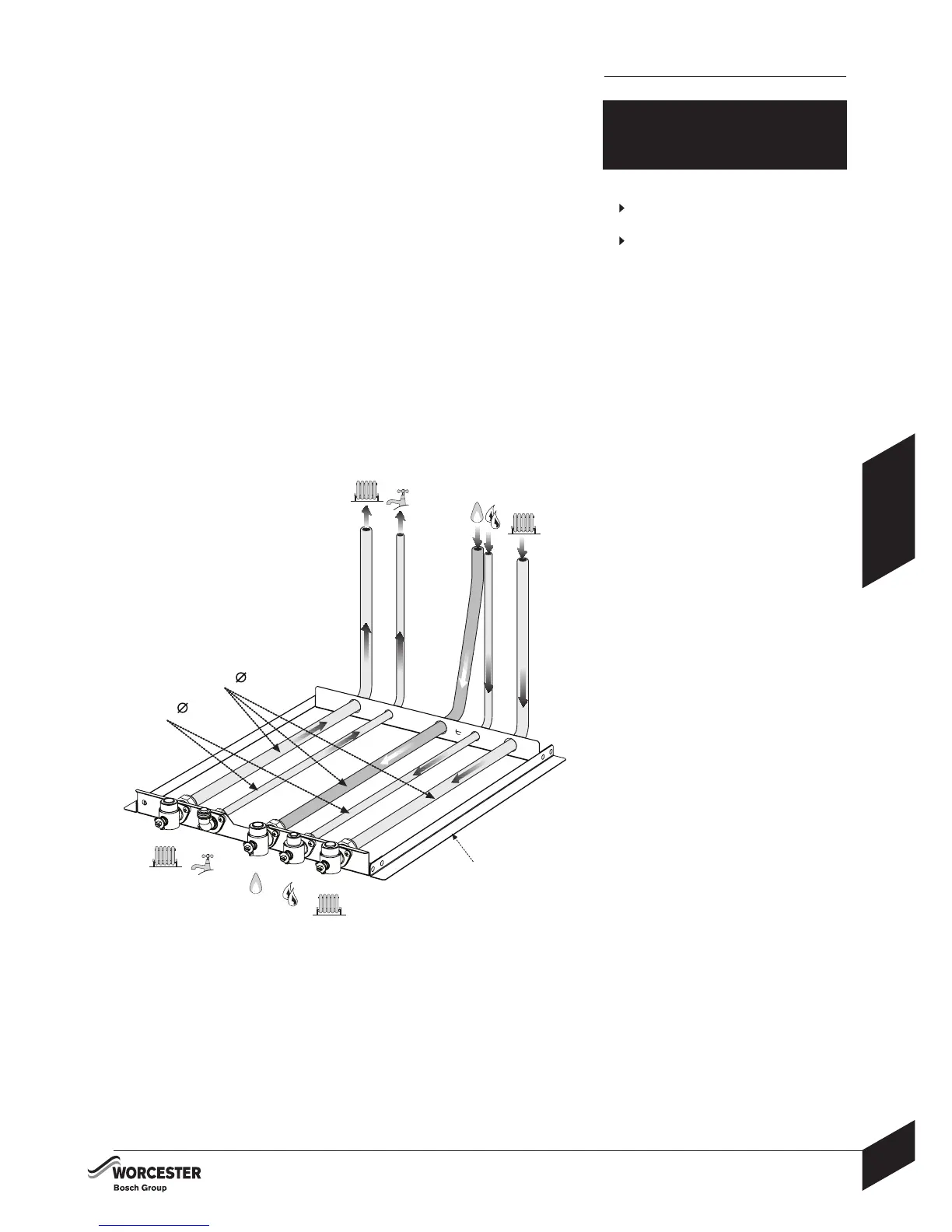

GAS AND WATER CONNECTIONS:
Ensure all pipework is clean and each pipe is
in the correct position as shown opposite.
Push in each pipe in turn and tighten the fitting
to secure.
A - CH flow (22mm)
B - DHW flow (15mm)
C - Gas inlet (22mm)
D - Mains water inlet (15mm)
E - CH return (22mm)
F - Mounting frame.
MOUNTING FRAME
CONNECTIONS
F
A
B
C
D
E
22mm
15mm
