INSTALLATION
INSTALLATION & SERVICING INSTRUCTIONS
26
ELECTRICS
6-720-611-730b (12.05)
ELECTRICS

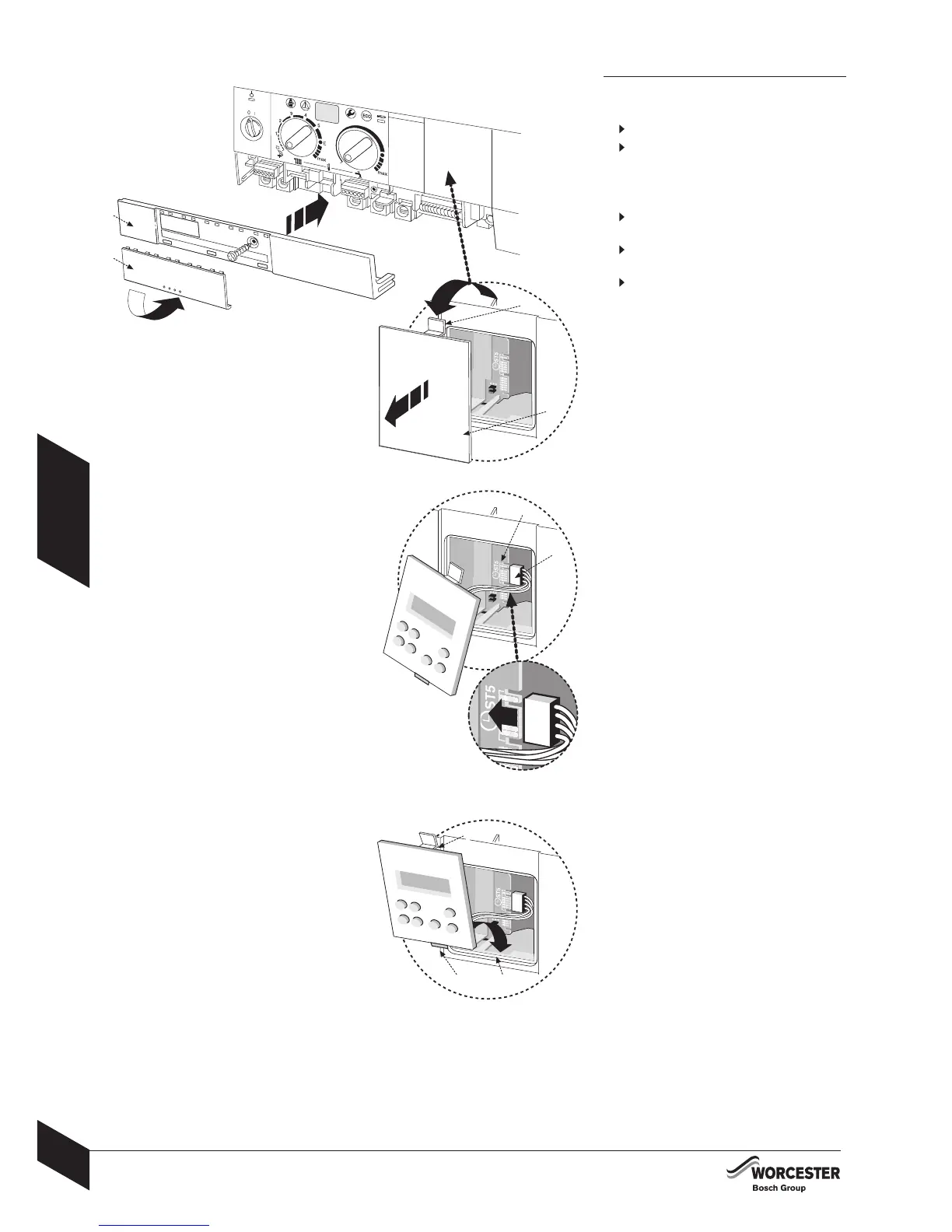

Refit electric control panel covers:
1
Refit panel (B) and secure with screw.
2
Locate lugs at top edge of panel (A) and clip
in at base.
Fitting an optional programmer:
3
Pull tab (C) to remove the programmer blanking
plate (D).
4
Attach programmer connector (E) onto circuit
board (F) at ST5 shown with a clock symbol.
5
Locate programmer lower lug (G) into control
panel slot (H) and check for trapped wires before
clipping the top lug of the programmer (J) into
the control panel.
3
D
C
A
B
1
2
F
E
G
H
J
5
4
