Worcester GREENSTAR SYSTEM FILTER User Manual

3
STANDARD PACKAGE
6 720 803 839 (2012/11)
2 STANDARD PACKAGE

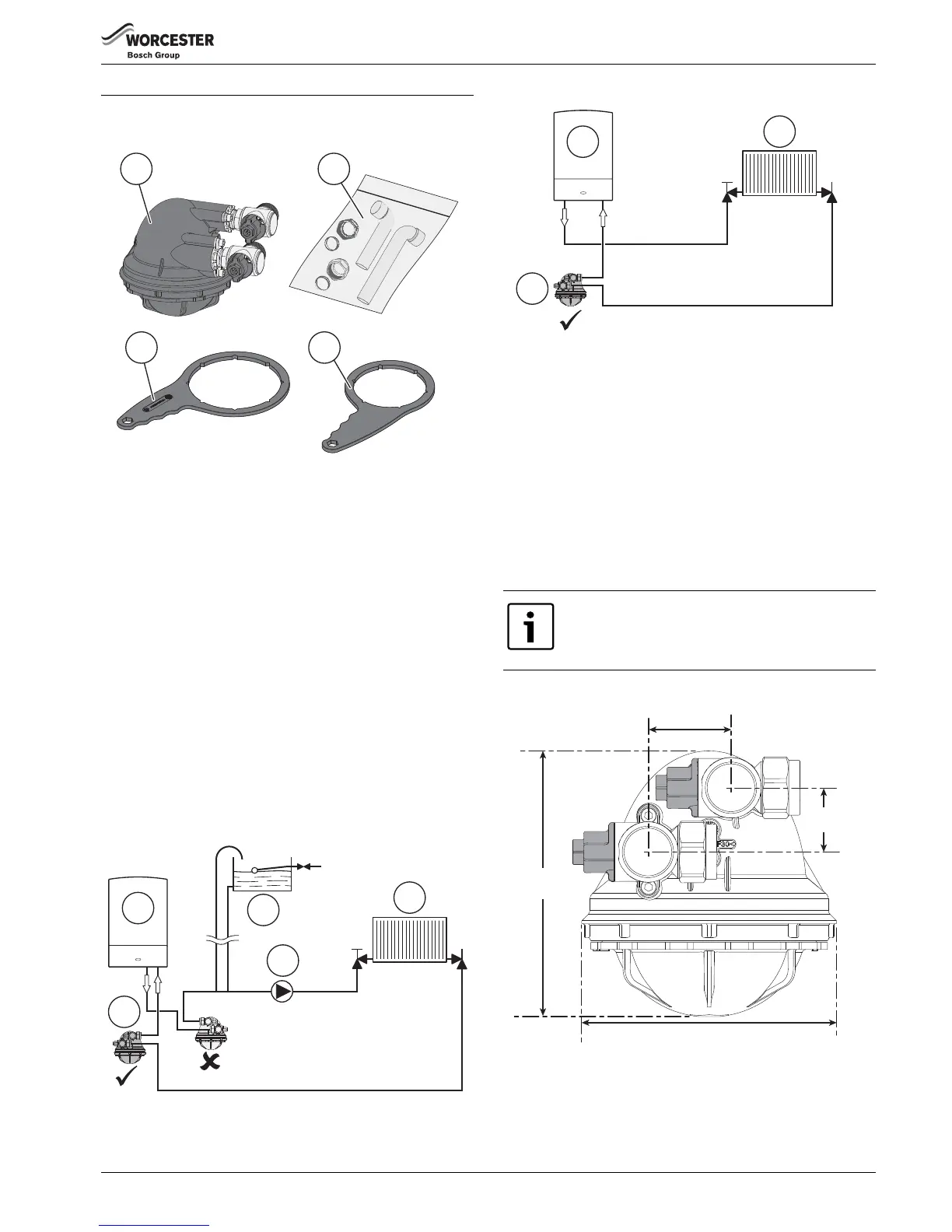

Fig. 1 Standard package
[1] Greenstar system filter
[2] Copper tails and fittings (22mm)
[3] Tool for body
[4] Tool for cap
GENERAL INFORMATION
The Greenstar system filter is suitable for 22mm pipe central
heating systems and can be fitted anywhere on the main
heating circuit. The system should be flushed and a suitable
inhibitor added in accordance with BS7593 before installing
the Greenstar System Filter. Failure to comply with the
guidance will limit the effectiveness of the Greenstar System
Filter in protecting your boiler and central heating system.
However, in order to achieve the best protection for the boiler,
Worcester, Bosch recommend that the filter is fitted between
the last radiator and the boiler on a vertical run of pipework. In
determining a suitable location for installation, it is important to
ensure you allow adequate access for servicing.
Fig. 2 Open vented system
Fig. 3 Combi/sealed system
[1] Boiler
[2] Open vent tank
[3] Pump
[4] Radiator
[5] System filter
The following instructions are designed to assist engineers in
the safe and effective installation and servicing of Greenstar
system filter and should be followed at all times. Any queries
arising from either installation or servicing should be directed
to Worcester, Bosch Technical Support.
Fig. 4 Dimensions
6720803839
-01.1Wo
3 4
1
2
6720803839 -02.1Wo
1
2
3
4
5
Greenstar system filter should only be installed
by a competent person. If in any doubt, consult
a qualified heating engineer.
6720803839
-03.1Wo
1
4
5
6720803839
-04.1Wo
Ø 139mm
45mm
145mm
35mm
