Work Pro W4 PRO DMX - Page 6

1. Overview
4
4. Power Cable
1. Control Board
3. Channel Output
6. DMX In
5. DMX Out
2. Channel Fuse
Connect to an appropriate power outlet.
Control this unit via these function buttons.
This connector receives DMX signal.
This connector sends DMX signal.
F6.3A 250V 5x20mm
1.5 A/CH., Total 6 A max.(CE)

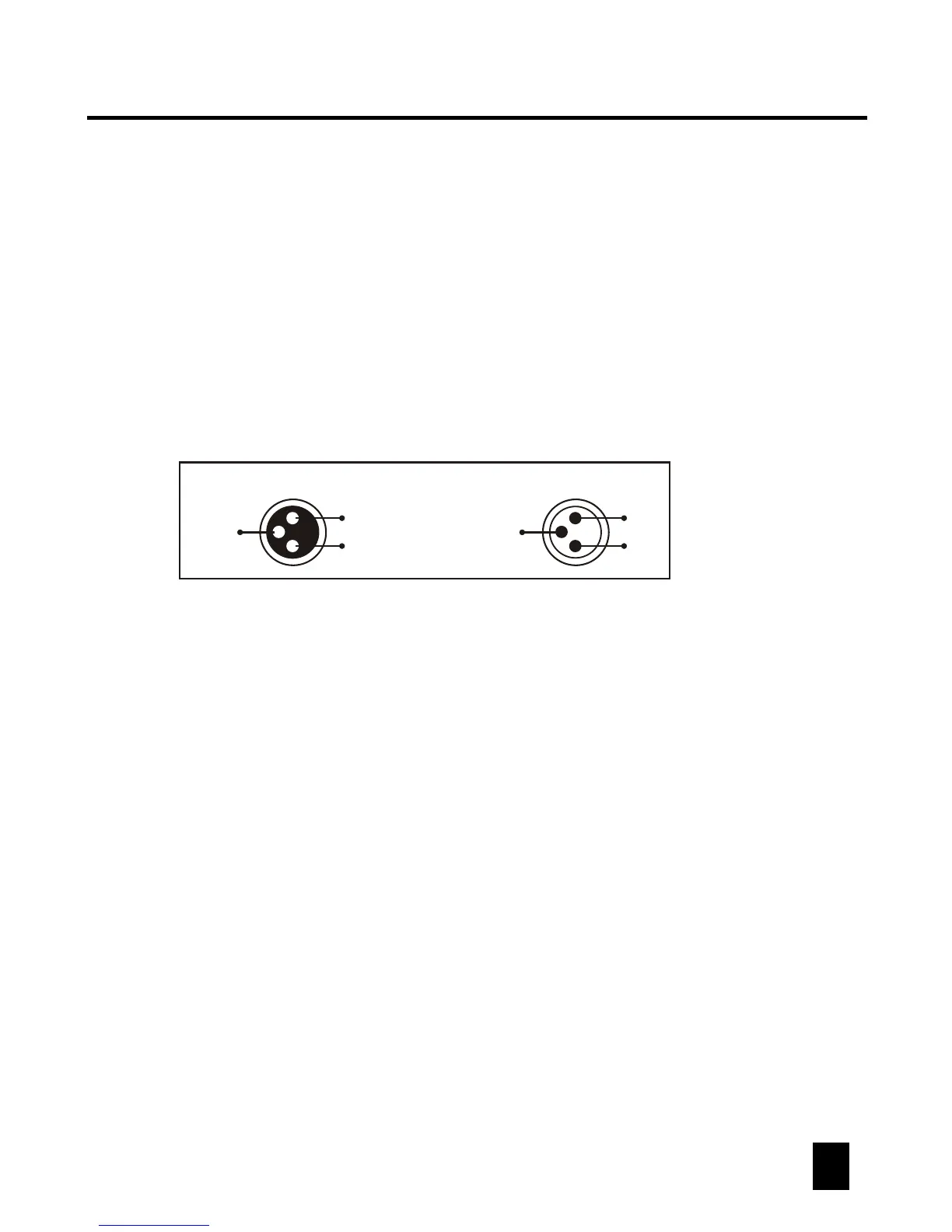

DM X O UT DM X I N
2
3
1
2
3
1
1=Gr ound
2 =Dat a-
3=Data+
