Work Pro W4 PRO DMX - 1 Overview

FUSE(Internal): F0.315A 250V
POWER INPUT: AC 230V~50Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 1.5A / Channel, 6A / Total.
POWER INPUT: AC 220V~50Hz
FUSE: F6.3A 250V 5x20mm
OUTPUT: 5A /Channel, 20A / Total.
CH1
CH3 CH4
CH2
FUSES
MADE IN PRC 24-005-0544
CHINA
N'OUVREZ PAS..RISQUE DE CHOC ELECTRIQUE
WARNING: THIS APPARATUS MUST BE EARTHED
CAUTION
RISK OF ELECTRIC SHOCK
DISCONNECT INPUT POWER
BEFORE OPENING

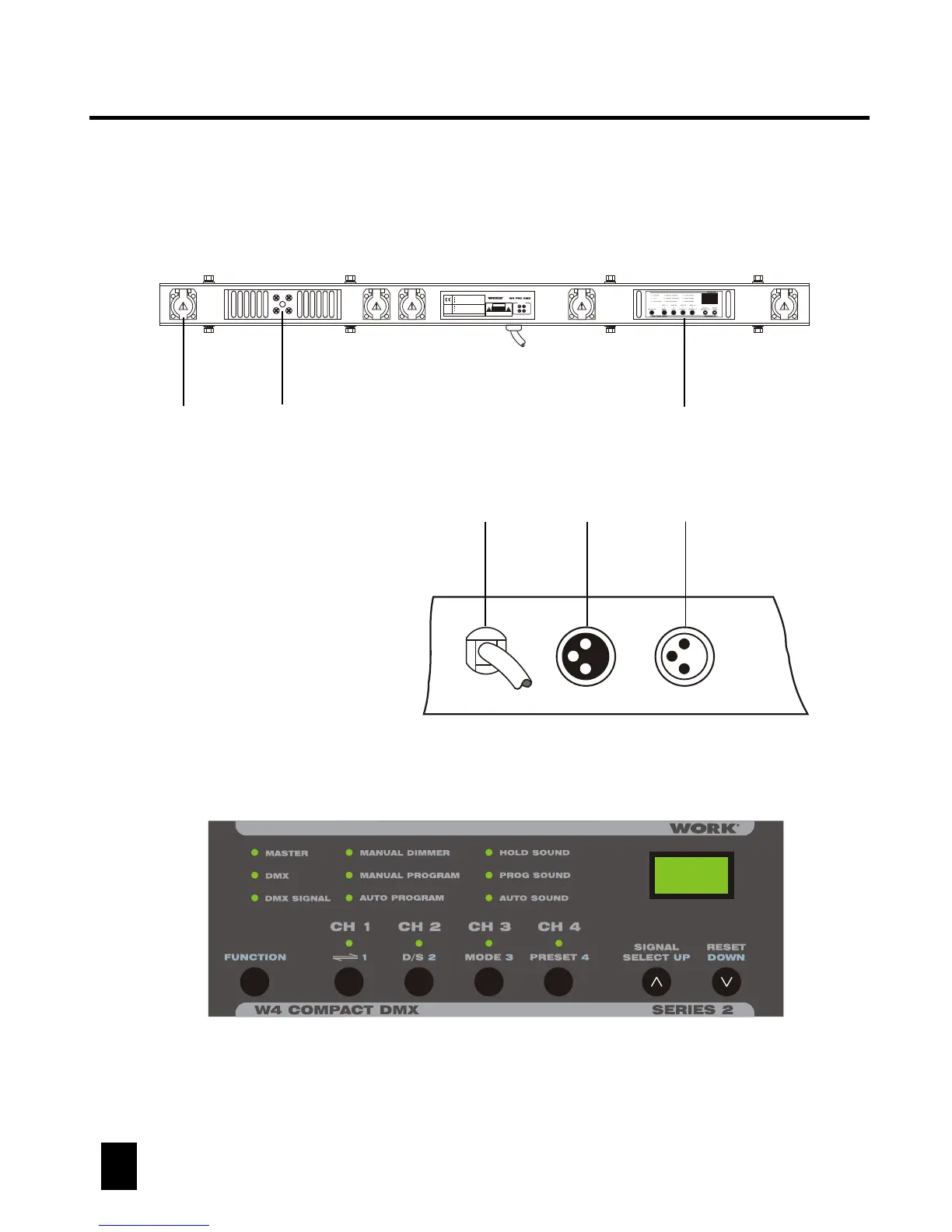

1. Overview
1. Overview
3 4
4. Power Cable
1. Control Board
3. Channel Output
6. DMX In
5. DMX Out
2. Channel Fuse
Connect to an appropriate power outlet.
Control this unit via these function buttons.
5 A/CH., Total 20 A max.(CHINA)
This connector receives DMX signal.
This connector sends DMX signal.
F6.3A 250V 5x20mm
1.5 A/CH., Total 6 A max.(CE)
DM X O UT DM X I N
2
3
1
2
3
1
1=Gr ound
2 =Dat a-
3=Data+
2
3
4 5 6
1
Control board
