Workshop WS0501WM - Wall Mounted Vac Assembly; Connecting Main Unit Components; Hose and Cord Storage

7

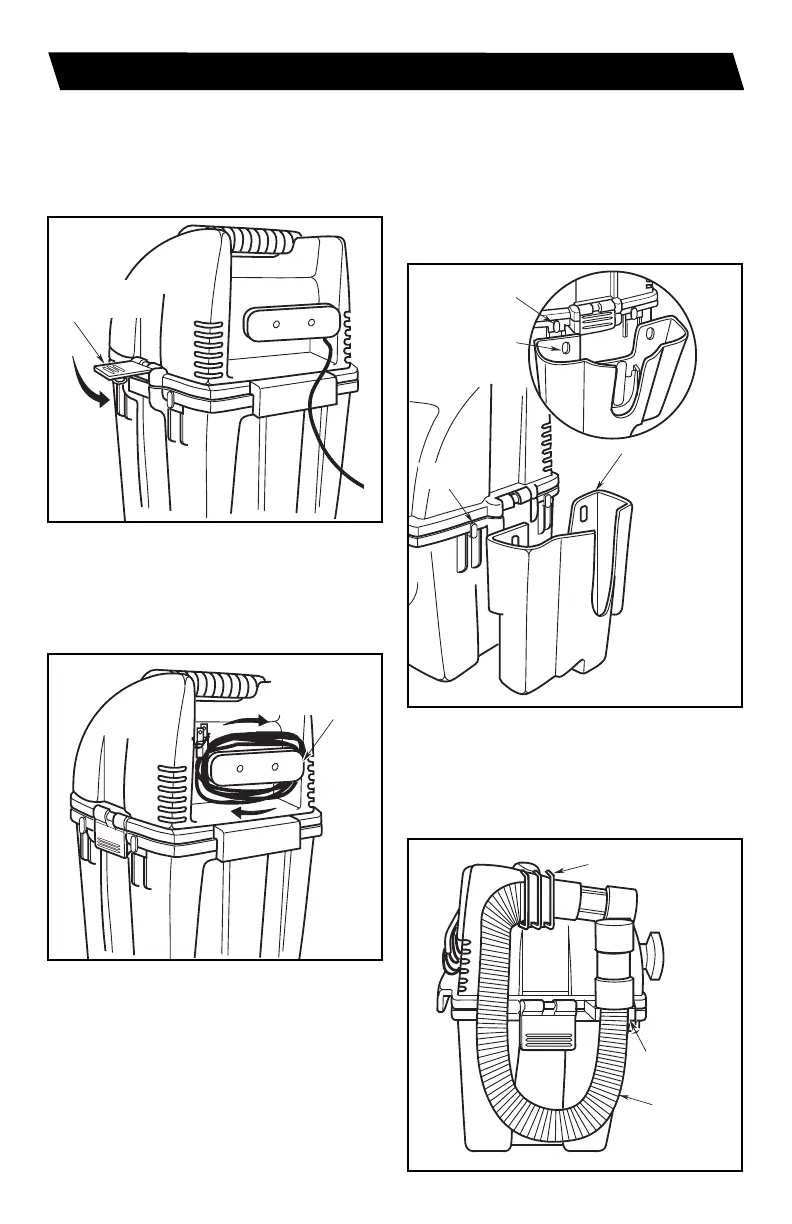

WALL MOUNTED VAC ASSEMBLY
Vac Assembly
Place Vac motor assembly onto Vac
canister assembly and secure with the
two side latches.
Side
Latches (2)
Accessory Storage Bin
Attach the Accessory Storage Bin to the
Vac assembly by inserting the tabs on
the Vac canister through the holes in the
storage bin and lowering the bin into
place.
Hose Storage
Slide each end of the Locking Hose into
the appropriate hose hooks located on
the Vac motor assembly.
Cord Wrap Storage
Wind the electrical cord clockwise (from
the rear) around the cord wrap area on
back of Vac motor assembly.
Cord Wrap
Area
Hose Hook
Hose
Hook
Locking
Hose
Storage
Accessory
Bin
Tabs (2)
Tabs (2)
Holes (2)
