Workzone 50501 User Manual

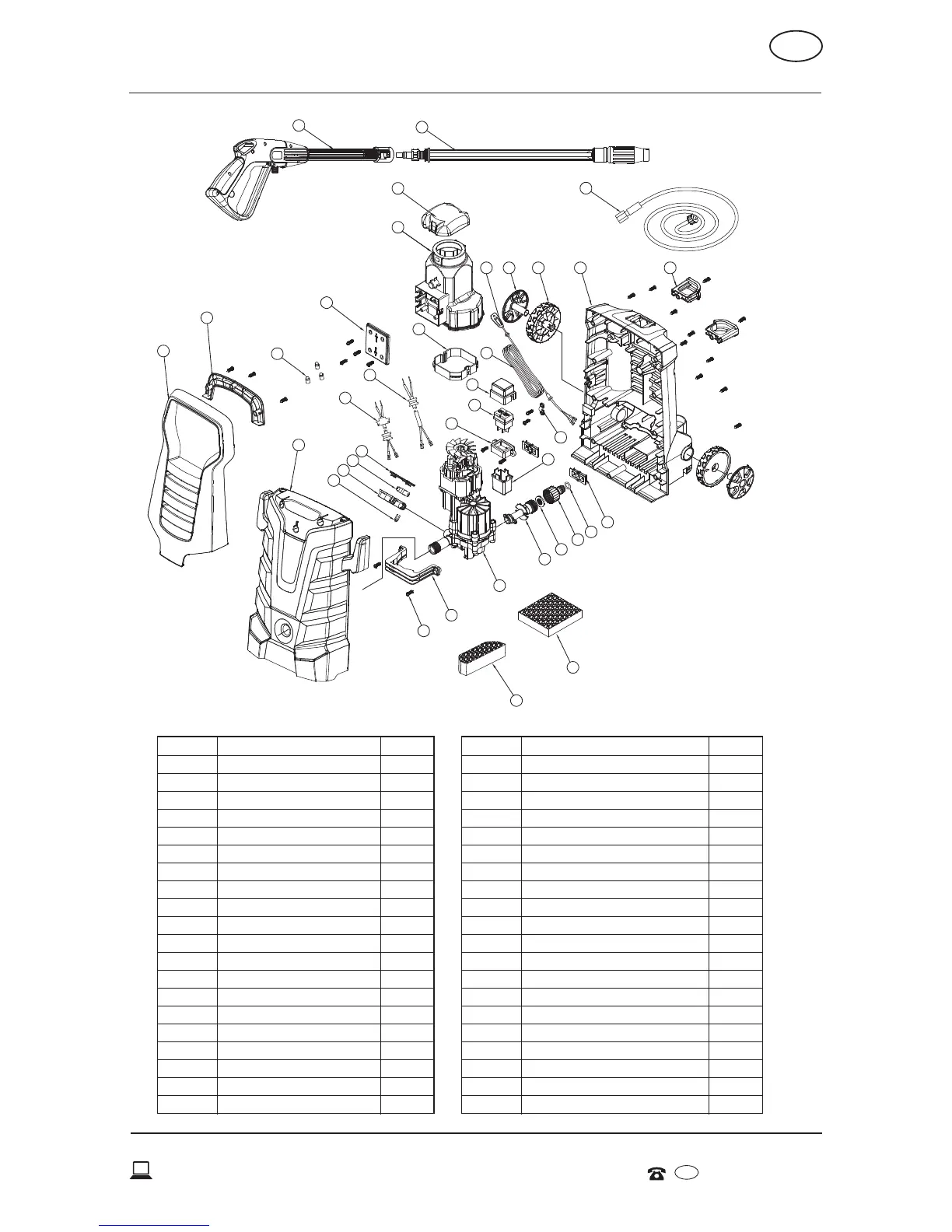

Exploded View & Parts list
AFTER SALES SUPPORT
USA
USA
High Pressure Washer
1800 505 8311 acs@americancustomerservice.com
13
No Parts Description Qty
1 Back unit body 1
2 Front unit body 1
3 Big handle 1
4 Big handle cover plate 1
5 Motor cover 1
6 Motor cover plate 1
7 Fixed lm 1
8 Water inlet pipe 1
9 Roller 2
10 Roller insert 2
11 Switch box 1
12 Switch box cover 1
13 Power cord grip 1
14 Holster 2
15 Butt plate 2
16 Stator clamping 1
17 Waterproof sponge 1
18 Waterproof sponge 1
19 Waterproof cover 1
20 Waterproof cap 1
No Parts Description Qty
21 Screw 24
22 Switch 1
23 Power cord 1
24 GFCI 1
25 Internal wire 1
26 Crimp cap 3
27 Motor pump 1
28 O Sealing ring 1
29 Quick connector washer 1
30 Quick connector 1
31 Switch box 1
32 Switch bracket 1
33 U-pin 1
34 Micro switch 1
35 TSS wire 1
36 Handgun grip assemble 1
37 Handgun staff assemble 1
38 Pressure hose 1
26
2
4
3
7
27
8
29
30
22
12
11
13
15
28
1
5
6
9
14
21
16
24
25
35
32
34
31
33
38
17
18
10
19
20
37
36
23

Workzone 50501 Specifications

General

Brand	Workzone
Model	50501
Category	Pressure Washer
Language	English
