High Pressure Washer
1800 505 8311 acs@americancustomerservice.com
Operation Rules - Assembly
8
5.1.5 Connect the water supply hose to the connector.
The water supply hose is not provided in the pack.
5.1.6 Check whether the voltage shown on the rating plate corresponds to
that of the power source: voltage 120V, the current carrying capacity
of the circuit should not be less than 13A.
5.1.6 Spray units connect: Push the lance into the trigger grip handle and t
wist it to secure it as shown in gures 2
5.2 Assembly
5.2.1 Make sure that the high pressure cleaner is switched off and
disconnected from the mains supply.
5.2.2 Fit the carrying handle to the high pressure cleaner using the handle
securing bolt.
5.2.3 Connect the hose and trigger assembly to the water outlet pope.
5.2.4 The inlet lter must always be tted inside the water inlet to lter out
sand, limestone and other impurities as they will damage the pump
valves. Caution: failure to t the lter will invalidate the guarantee.
5.2.5 Screw the connector onto the water inlet.
5.2.6 Connect the water supply hose to the connector. The water supply
hose is not provided in the pack.
WARNING: The temperature of the incoming water must not exceed 104°F (40ºC).

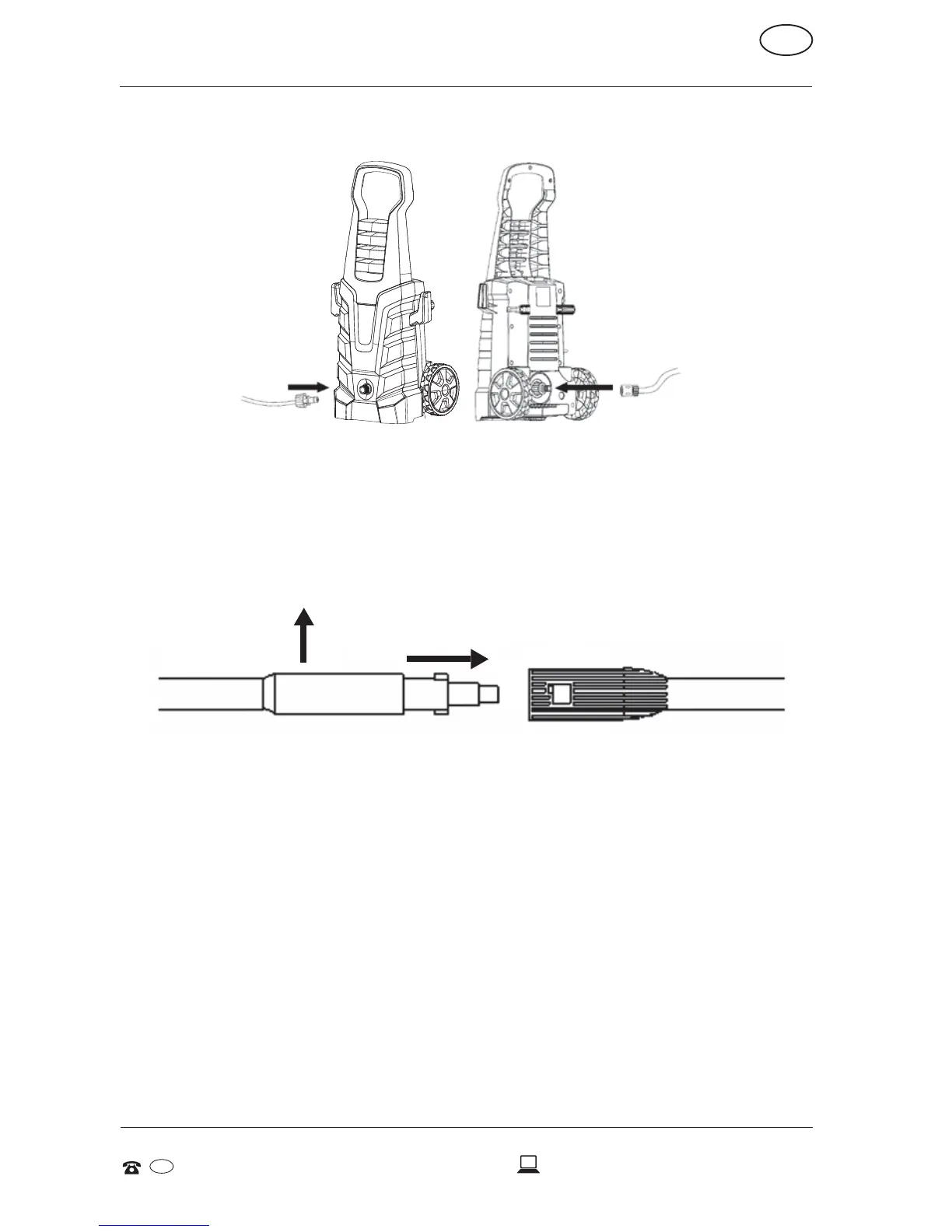

insert into the black
quick connector
insert into the aluminum
connector
Figure 3
running water
gun
Push
Twist
Figure 4
