WARNING: Ensure the engine is switched o while undertaking this task.
NOTE: The following procedure should be performed in a well ventilated
area, with no naked ames, sparks, or cigarettes.
NOTE: Safety glasses should also be worn and on/o switch (4) set to the
OFF position.
1. Ensure the fuel tap / lever (26) is in the OFF position (Fig AG).
2. Hold the tap housing and loosen the bottom sediment cup using an
11mm spanner (not supplied) (Fig AJ).
Remove the sediment cup from the bottom of the fuel tap / lever (26) (Fig
AK). Be careful not to move the tap housing. Do not lose the small seal on
the thread of the sediment cap.
3. The lter inside the sediment cup can be cleaned in petrol to remove any
build-up of dirt on the outside of the lter. Do not operate the generator
without this lter in place.
4. After cleaning the lter, replace the seal, then the lter, on top of the
sediment cap and then insert the assembly back on the bottom of the
fuel tap / lever (26) (Fig AL), and secure nger tight in an anti-clockwise
direction. Using an 11mm spanner (not supplied), secure the sediment
cap until tight (Fig AK).
5. Rell the tank with fuel and ensure there are no leaks between the tap
and the tank, the tap and the sediment cap, and with the fuel tap / lever
(26) turned on, ensure there are no leaks where the fuel hose is tted to
the outlet of the tap.
Maintenance Cleaning/Warranty

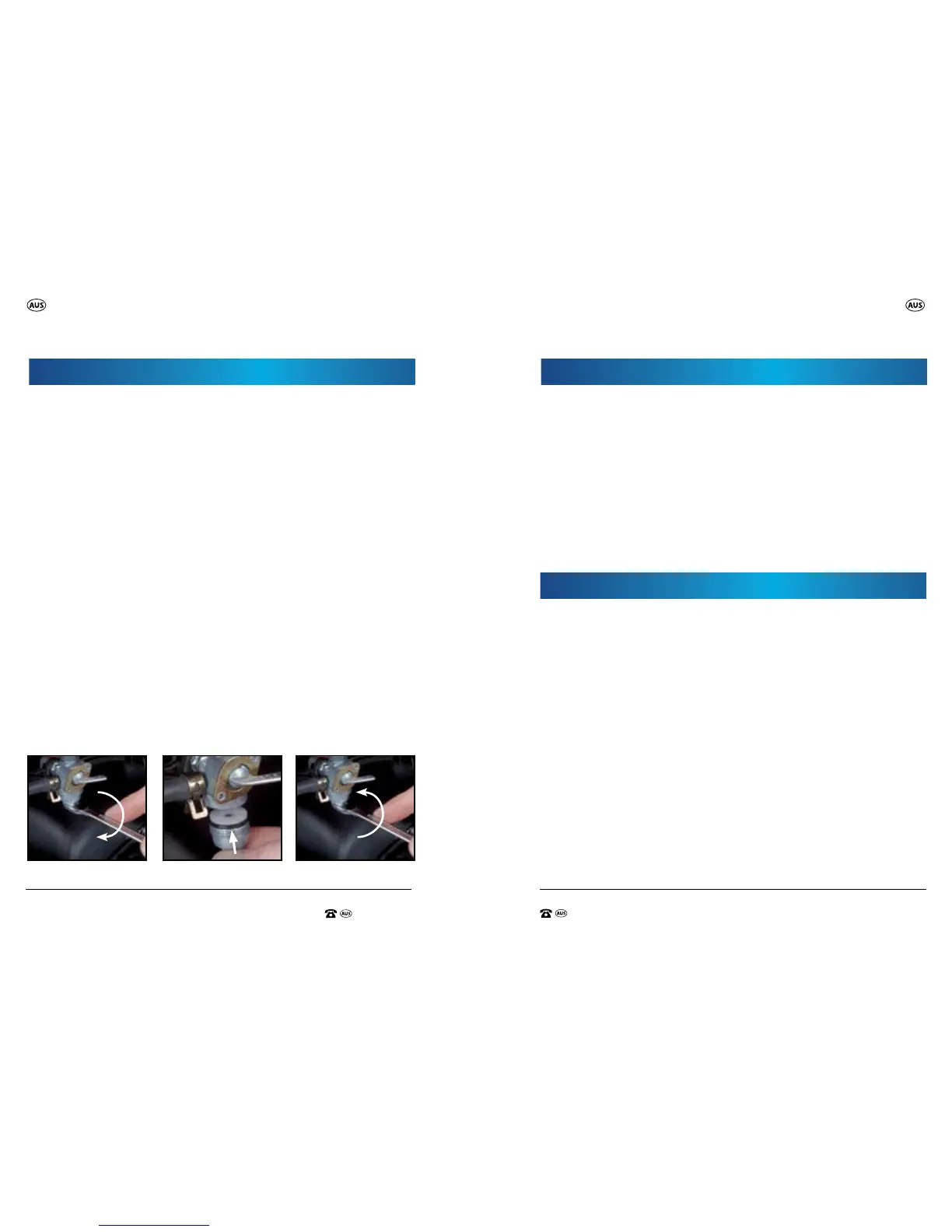

AK.AJ. AL.
LOOSEN TIGHTEN
1. Keep your machine clean. The outside of the machine can be cleaned
using a damp soft cloth with a mild detergent if required. Never use water
to clean the generator as it may cause damage to internal parts.
2. Some maintenance products and solvents may damage the plastic parts;
these include products containing benzene, trichloroethylene, chloride
and ammonia.
3. Use a vacuum to clean air inlet and outlet louvres of the alternator.
4. Take special care to keep the ventilation inlets/outlets free from
obstruction; cleaning with a soft brush followed by a compressed air jet
will usually be sucient to ensure acceptable internal cleanliness.
5. Wear eye protection when carrying out cleaning.
Your new Workzone® Titanium Generator will more than satisfy your
expectations.
It has been manufactured under stringent Workzone® Titanium Quality
Standards to meet superior performance criteria.
You will nd your new Generator easy and safe to operate, and, with proper
care, it will give you many years of dependable service.
CAUTION. Carefully read through this entire instruction manual before
using your new Workzone® Titanium Generator .
Take special care to heed the Cautions and Warnings.
Your Workzone® Titanium Generator has many features that will make your
job faster and easier. Safety, performance, and dependability have been
given top priority in the development of this Generator, making it easy to
maintain and operate.
Use only Workzone® Titanium replacement parts for your product.
Non-conforming parts or modications made to parts will void
your warranty.
