AFTER SALES SUPPORT
1300 889 028 (toll free)
e-mail:
MODEL No.:
info.aldi@positecgroup.com
BL20AL • 8213 • 06/2019

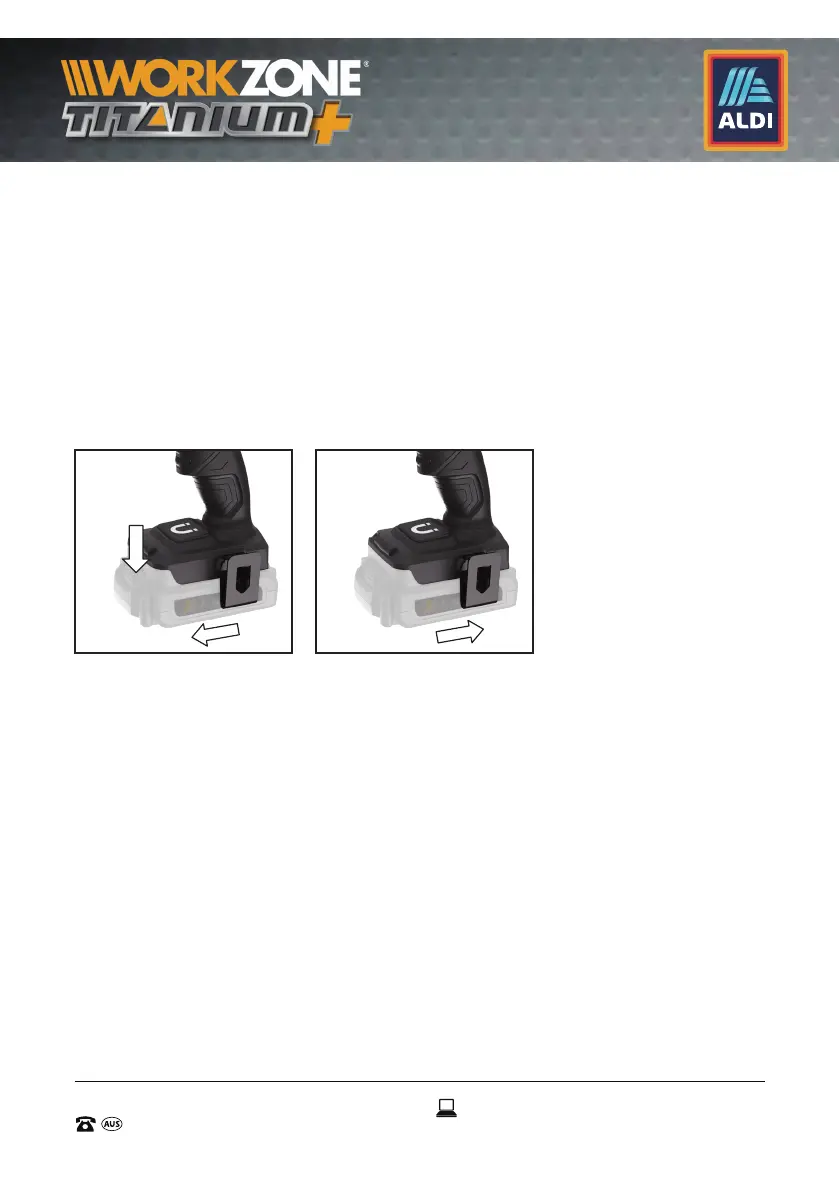

7.1 Installing and Removing the Battery Pack(7)
1) To Install the Battery Pack (7) (See Fig. A1)
Slide the fully charged battery pack (7) onto the drill / driver with
sufficient force until it clicks into position.
2) To Remove the Battery Pack (7) (See Fig. A2)
Press in the battery pack release button (8) firmly, then slide the
battery pack (7) out away from the drill / driver.
8. Operation
8.1 Activating the drill / driver (See Fig. B)
1) After installing a fully charged battery pack (7), hold the drill /
driver with your index finger on the forward touch pad (11) and
the middle finger on the reverse touch pad (10).
2) Firmly press both the forward and reverse touch pads (10/11)
at the same time to activate the drill / driver. Both the LED light
(12) and the power indicator light (4) will illuminate to indicate a
successful activation.
3) Release fingers from the touch pads. The drill / driver is ready for
use.
7. Assembly
A1 A2
