World Cat 2006 270EC - Hull Wiring Diagram

World Cat
5-12

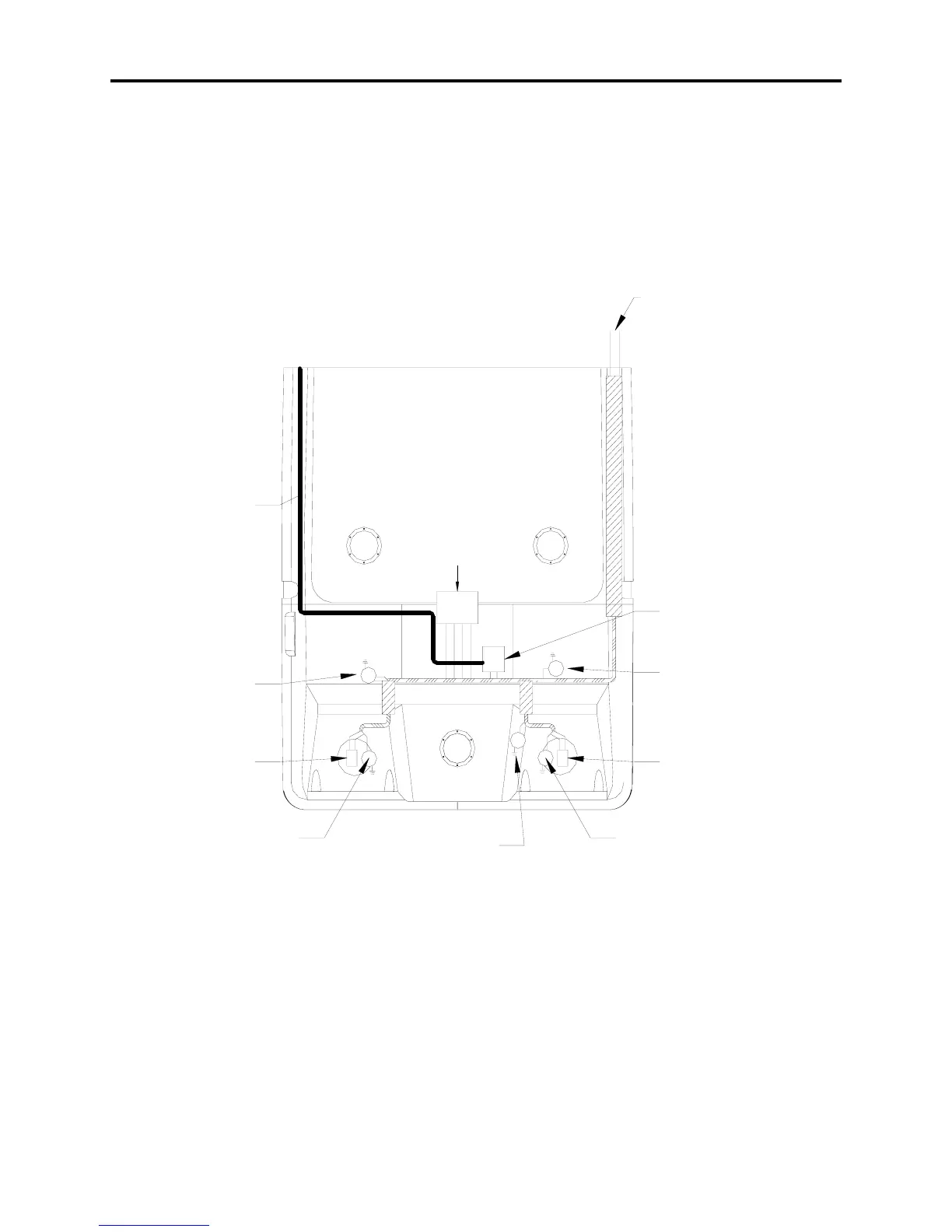

HULL WIRING DIAGRAM
BILGE PUMP
14 GA. BRN
FLOAT SWITCH
14 GA. BRN
14 GA. BRN/RED
BILGE PUMP
14 GA. BRN
FLOAT SWITCH
14 GA. BRN
14 GA. BRN/RED
LIVEWELL PUMP
14 GA. BRN/YEL
RAWWATER PUMP
14 GA. BRN/BLK
FROM CABIN HARNESS
14 GA. BRN/RED (2 EA.)
FWD. BILGE FLOATS
OPTIONAL A/C PUMP
14 GA. BRN/WHT
A/C RELAY BOX
14 GA. BRN/WHT (2 EA.)
10−3 BOAT CABLE
FROM DECK HARNESS
BATTERY
MANAGEMENT
PANEL
