WORNG Electronics TMLPG - Placing Vactrols

WORNG Electronics – TMLPG
Build Document V1.1
Page 2

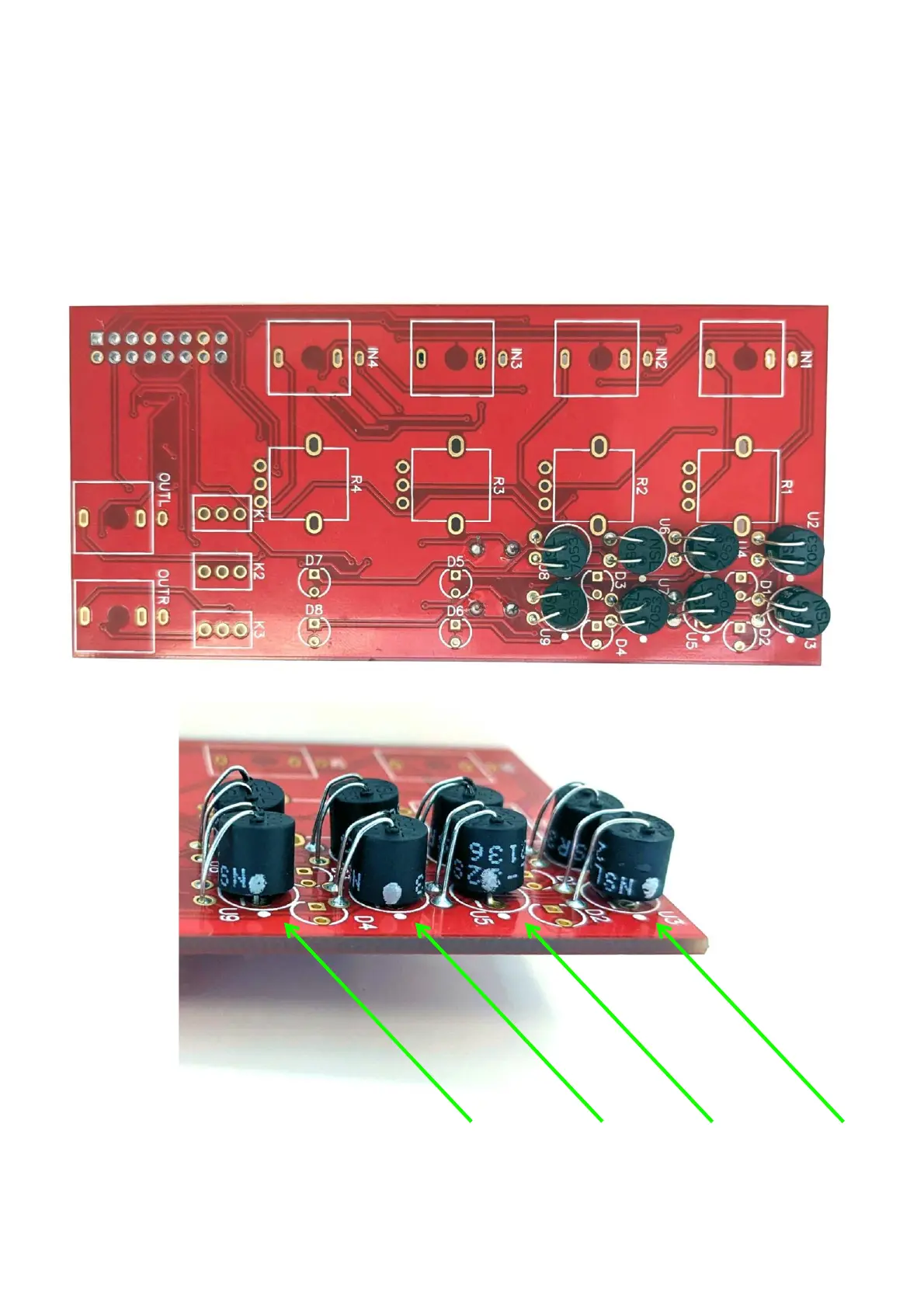

1. First place the 8 vactrols on the PCB as shown. NOTE: orientation is vital! The dot on
the vactrol must line up with the white dot on the PCB silkscreen as shown below.
