WORNG Electronics TMLPG - Final Assembly

WORNG Electronics – TMLPG
Build Document V1.1
Page 5

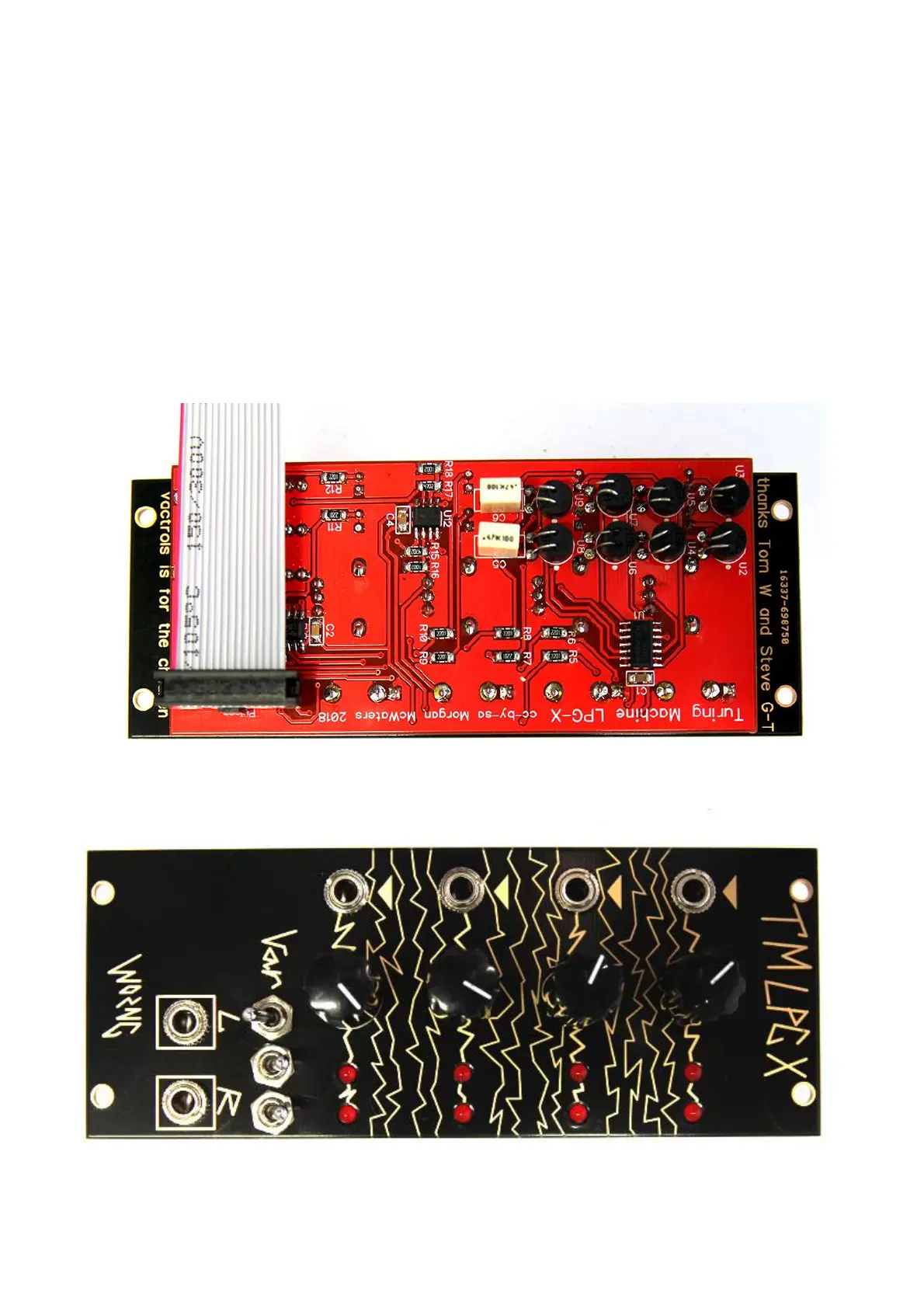

5. Finally you can place the knobs onto the pots and then attach the 16-pin ribbon
cable as shown below – with the red stripe facing towards the bottom of the
module. The module attaches to the pulse expander header on the main Turing
Machine module.
