6
English

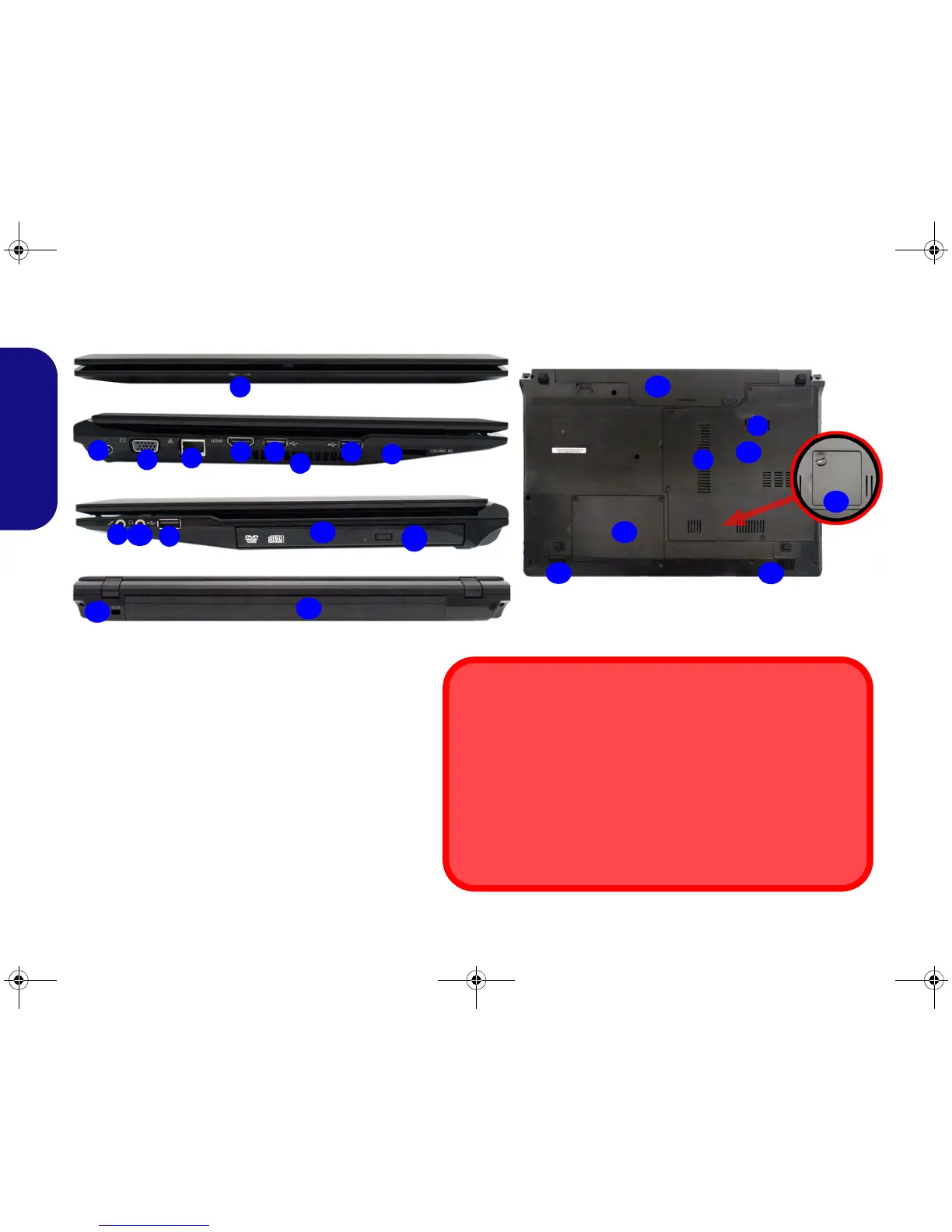

System Map: Front, Left, Right, Rear & Bottom Views
Figure 3 - Front, Left, Right, Rear & Bottom Views
1. LED Power Indicators
2. DC-In Jack
3. External Monitor Port
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. 3 * USB 2.0 Ports
7. Vent
8. Multi-in-1 Card Reader
9. Microphone-In Jack
10. Headphone-Out Jack
11. Optical Device Drive
Bay
12. Emergency Eject Hole
13. Security Lock Slot
14. Battery
15. Component Bay Cover
16. Hard Disk Bay Cover
17. Speakers
18. USIM Card Cover
(Optional)
2
1
7
8
4
6
3
Left
Right
5
Front
Rear
10
6
13
11
14
12
6
9
15
14
7
Bottom
16
17
7
17
18
Overheating
To prevent your computer f rom o verheating m ake sure n othing
blocks any vent while the computer is in use.
Disc Emergency Eject
If you need to man ually eject a disc (e.g. due to an une xpected
power interruption) you may push the end of a straightened paper
clip into the emergency eject hole. Do not use a sharpened pencil
or similar object that may break and become lodged in the hole.
C5500 CUG.book Page 6 Tuesday, August 10, 2010 1:37 PM
