Cordless lawn mower WG776E WG776E.9
ASSEMBLY
IMPORTANT! Before you assemble the
lawn mower, check the accessories according
above information, make sure the accessories are
completed.

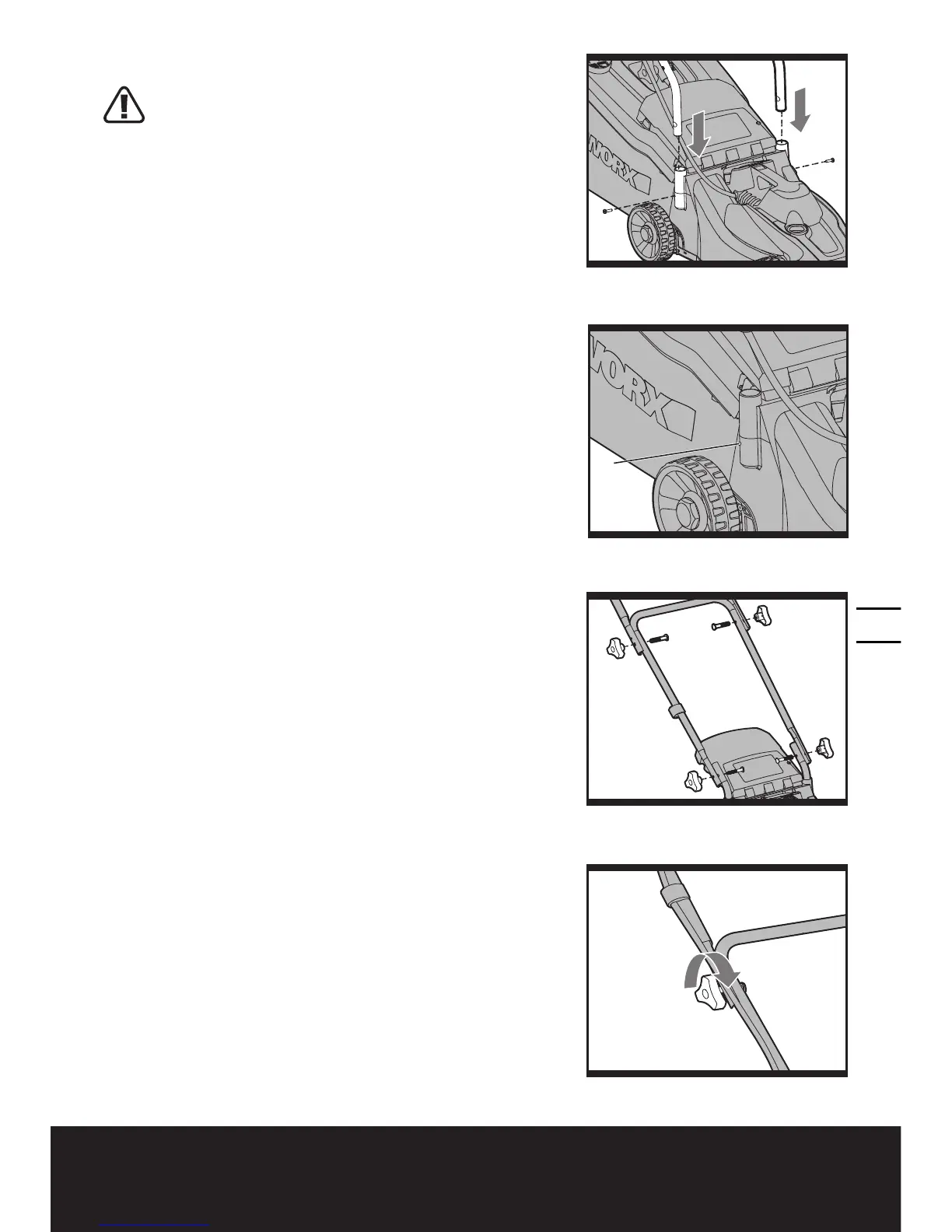

1. FITTING THE HANDLE (see Fig.A1- A5)
1) Remove the screws (a) on the both side of deck.
(see Fig A1)
2) Insert the Lower Handle Bar into the holes on the
deck. Be sure to carefully align the screw holes
found on the Lower Handles with the screws holes
found on the deck (a). (See Fig. A1 A2)
3) Secure the Lower Handle Bars to the deck with the
screws provided (See fig A2) .
4) Attach the Middle Handle (9) to the Lower Handle
with the Handle Knobs Assembly (8). After this
is complete, attach the Upper Handle (1) to the
Middle Handle with the upper Handle Knobs
Assembly (7) (See Fig. A3).
5) Tightening the two Handle Knobs. Check that the
handle is FULLY secured.
The cam lever pressure can be adjusted by rotating
the upper or the lower Handle Knobs clockwise/
counterclockwise (See Fig. A4). DO NOT OVER
TIGHTEN.
NOTE: Ensure that the bolts are fully inserted through
the handles before adjusting or tightening the Handle
Knobs.
