Worx WX372 Safety And Operating Manual

9
8
WX372 WX372.1
WX372.9
Lithium-Ion cordless
hammer drill
OPerating instructiOns
NOTE: Before using the tool, read the instruction
book carefully.
INTENDED USE
The machine is intended for driving in and loosening
screws as well as for drilling in wood, metal and plastic.
BEFORE PUTTING INTO OPERATION
- BATTERY CHARGING
A battery that is new or has not been used for a longer
period does not develop its full capacity until after
several charging / discharging cycles.
A significantly reduced working period after charging
indicates that the batteries are used and must be
replaced.

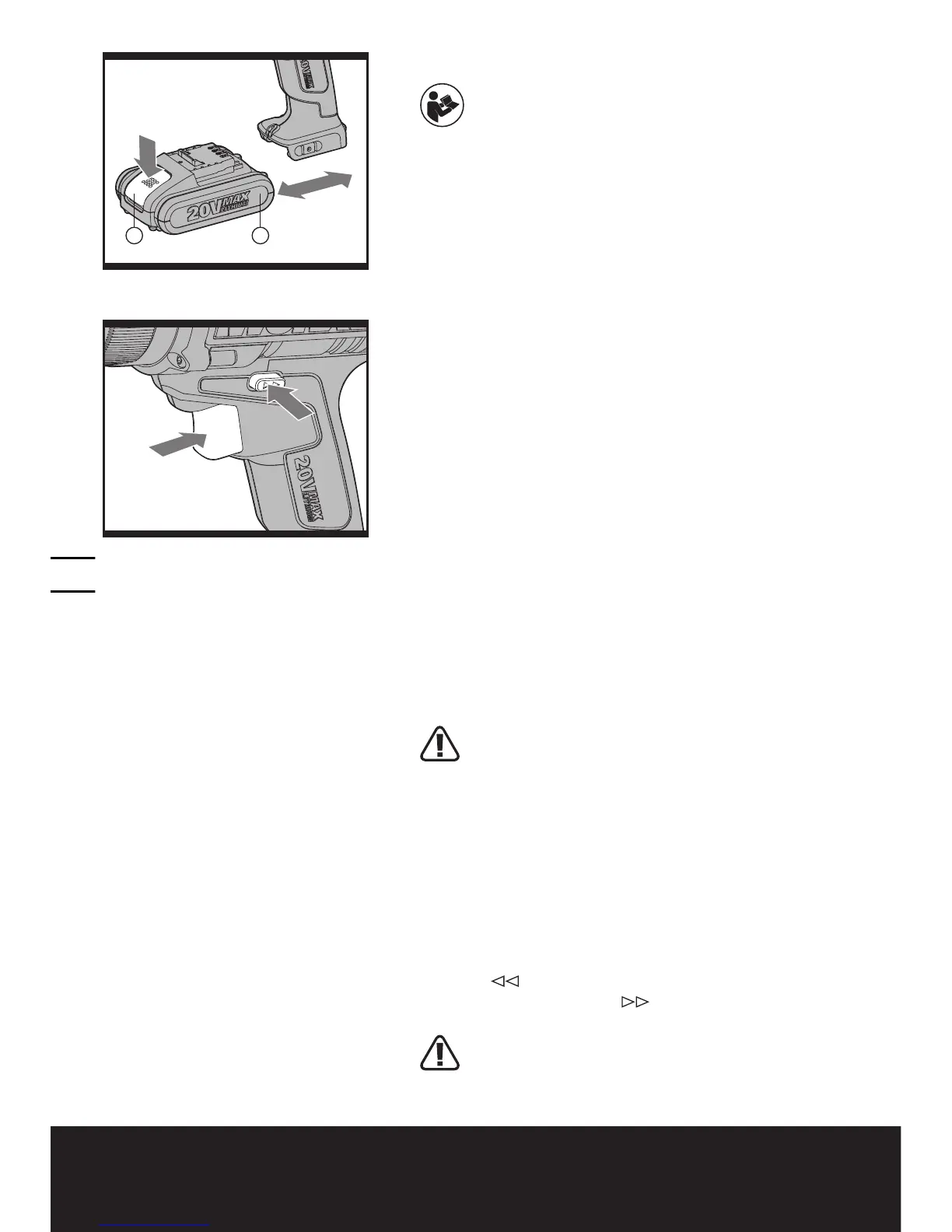

- TO REMOVE OR INSTALL BATTERY PACK (See
Fig. A)
Depress the Battery Pack Release Button (7) to release
and slide the Battery Pack (6) out from your tool. After
recharge, slide it back into your tool. A simple push and
slight pressure will be sufficient.
1. ON / OFF SWITCH (See Fig. B)
Depress On/Off Switch (9) to start and release it to
stop your drill. The On/Off Switch is fitted with a brake
function which stops your chuck immediately when you
quickly release the switch.
It is also a variable speed switch that delivers higher
speed and torque with increased trigger pressure.
Speed is controlled by the amount of switch trigger
depression.
WARNING: Do not operate for long periods
at low speed because excess heat will be
produced internally.
2. SWITCH LOCK (See Fig. B)
The switch trigger can be locked in the OFF position.
This helps to reduce the possibility of accidental
starting when not in use. To lock the switch trigger,
place the Rotation Control (4) in the center position.
3. REVERSIBLE (See Fig. B)
For drilling and screw driving use forward rotation
marked “ ” (lever is moved to the left). Only use
reverse rotation marked “ ” (lever is moved to the
right) to remove screws or release a jammed drill bit.
WARNING: Never change the direction of
rotation when the chuck is rotating, wait
until it has stopped!
67
A
B
C
D
E

Worx WX372 Specifications

General

Power source	Battery
Charging time	60 min
Battery voltage	20 V
Battery capacity	2 Ah
Battery included	Yes
Number of batteries included	2 pc(s)
Chuck type	Keyless
Motor type	Brushed
Screwdriving	-
Product design	Pistol grip drill
Torque (max)	50 N⋅m
Number of gears	22
Idle speed (max)	1800 RPM
Idle speed (min)	550 RPM
Chuck capacity (max)	13 mm
Impact rate (high speed)	28800 bpm
Drilling diameter in wood (max)	40 mm
Drilling diameter in concrete (max)	12 mm
Product color	Black, Orange, Silver

Weight and Dimensions

Depth	66 mm
Width	216 mm
Height	189 mm
Weight	1650 g
