Worx WX372 Safety And Operating Manual

9
8
WX372 WX372.1
WX372.9
Lithium-Ion cordless
hammer drill

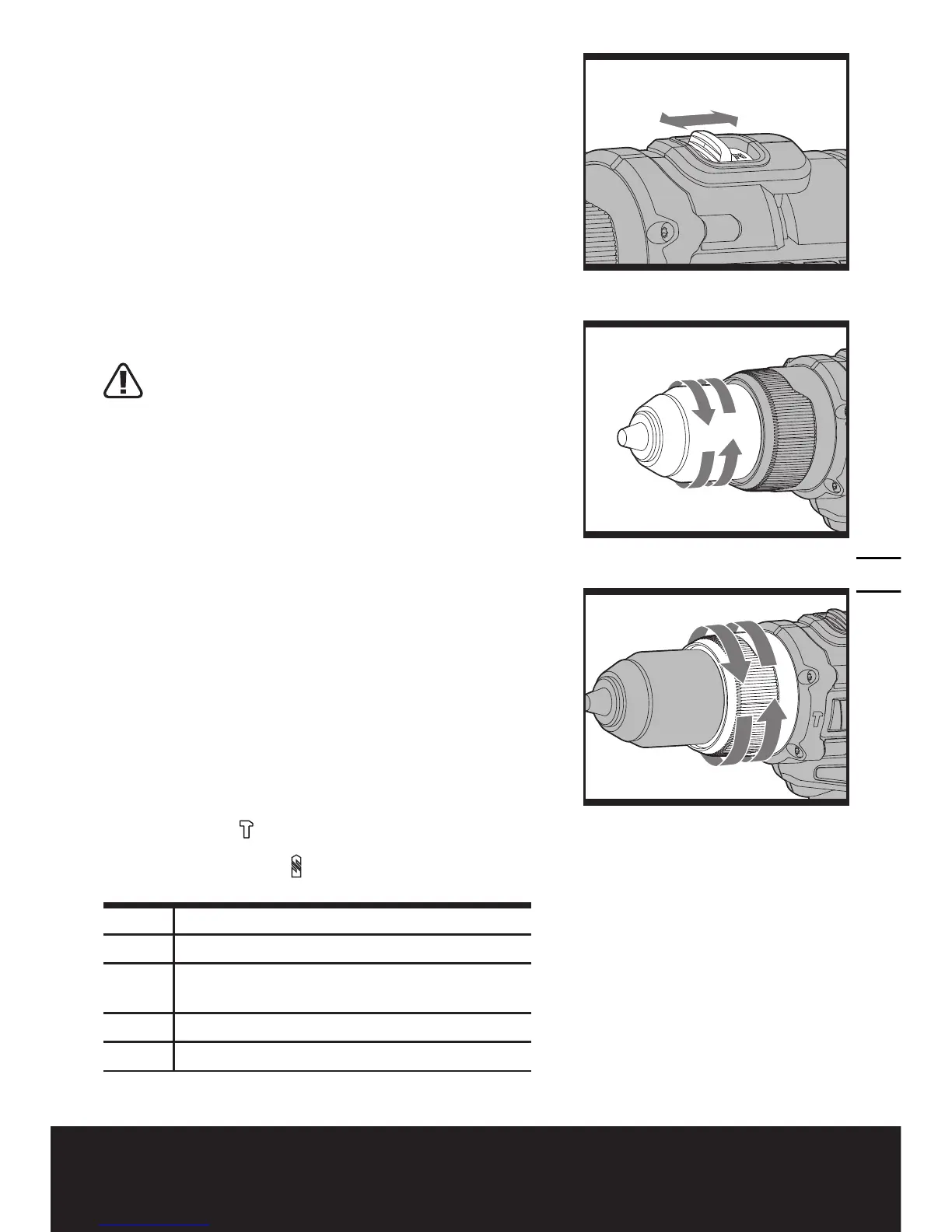

4. TWO-SPEED GEAR CONTROL (See Fig. C)
The drill has a Two-Speed Gear Control (3) designed
for drilling or driving at LO (mark is 1) or HI (mark is 2)
speeds. A slide switch is located on top of the drill to
select either LO or HI speed. When using the drill in the
LO speed range, the speed will decrease and the drill
will have greater power and torque. When using the
drill in the HI speed range, the speed will increase and
the drill will have less power and torque.
Gear I
Low speed range: for screwdriving or working with
large drilling diameter.
Gear II
High speed range: for working with small drilling
diameter.
WARNING: To prevent gear damage, always
allow the chuck to come to a complete
stop before changing the direction of rotation or
the two-speed gear train.
5. CHUCK ADJUSTMENT (See Fig. D)
To open the chuck jaws rotate the front section of the
chuck (1). Insert the drill bit between the chuck jaws and
rotate the front section in the opposite direction. Ensure
the drill bit is in the center of the chuck jaws. Finally,
firmly rotate the front chuck section in the opposite
directions. Your drill bit is now clamped in the chuck.
6. TORQUE ADJUSTMENT AND HAMMER OR
DRILLING CONTROL (See Fig. E)
(Screw driving force of your drill driver)
The torque is adjusted by rotating the torque
adjustment ring (2). The torque is greater when the
torque adjustment ring is set on a higher setting. The
torque is less when the torque adjustment ring is set on
a lower setting.
When drilling in masonry and concrete choose the
hammer position .
When drilling in wood, metal, plastic and screwdriver
choose the drill position .
Make the setting as follows:
1 - 4 for driving small screws
5 - 9 for driving screws into soft material
10 - 14
for driving screws into soft and hard
material
15 - 19 for driving screws into hard wood
20 - 22 for driving larger screws
67
A
B
C
D
E

Worx WX372 Specifications

General

Power source	Battery
Charging time	60 min
Battery voltage	20 V
Battery capacity	2 Ah
Battery included	Yes
Number of batteries included	2 pc(s)
Chuck type	Keyless
Motor type	Brushed
Screwdriving	-
Product design	Pistol grip drill
Torque (max)	50 N⋅m
Number of gears	22
Idle speed (max)	1800 RPM
Idle speed (min)	550 RPM
Chuck capacity (max)	13 mm
Impact rate (high speed)	28800 bpm
Drilling diameter in wood (max)	40 mm
Drilling diameter in concrete (max)	12 mm
Product color	Black, Orange, Silver

Weight and Dimensions

Depth	66 mm
Width	216 mm
Height	189 mm
Weight	1650 g
