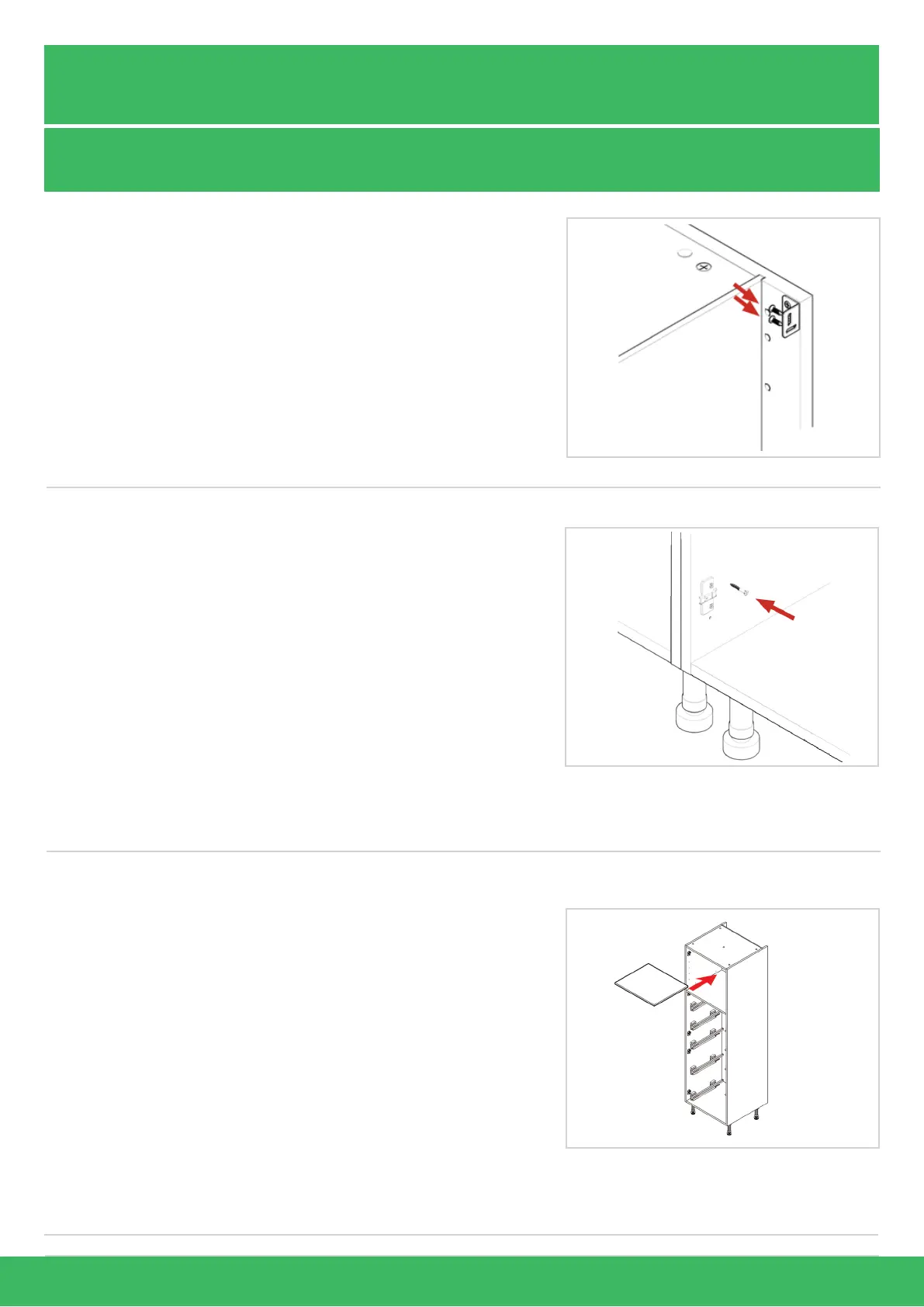

Attaching the tower unit to the wall
Fix the unit to the wall through the
L-brackets as shown in the image (these
fixings are not provided).
For guidance on the appropriate wall fixing
for each wall type, please consult the “Room
Preparation Guide.”
No screws are provided for attaching the unit to the wall.
This is due to variations in wall construction.
Before drilling into the wall you MUST check for any hidden services or pipework within the walls.
Securing to adjacent units
Clamp together the two units, checking the
front edges are level and flush.
Using the screws provided, 1x30mm screw
should be fixed into each corner of the unit
side.
The screws can be concealed by placing
them behind the shelf or behind the hinge
plates. The cover caps can be used to hide
any visible screw heads that remain.
Page 5
Placing the shelf / shelves into position
Position the shelf pegs into the pre-drilled
holes.
Place the shelf into position so the pin of each
shelf peg is inserted into the pre-drilled holes.
The shelf will touch the back panel when
installed, if there is a gap between the back
panel and shelf then it has been installed
back to front and needs to be rotated.
