BASE UNIT
Inframed kitchen Belfast Sink Guide
For Internal Use: WKIN00289_Inframed_Kitchen_Guide_Rev3
Page 30

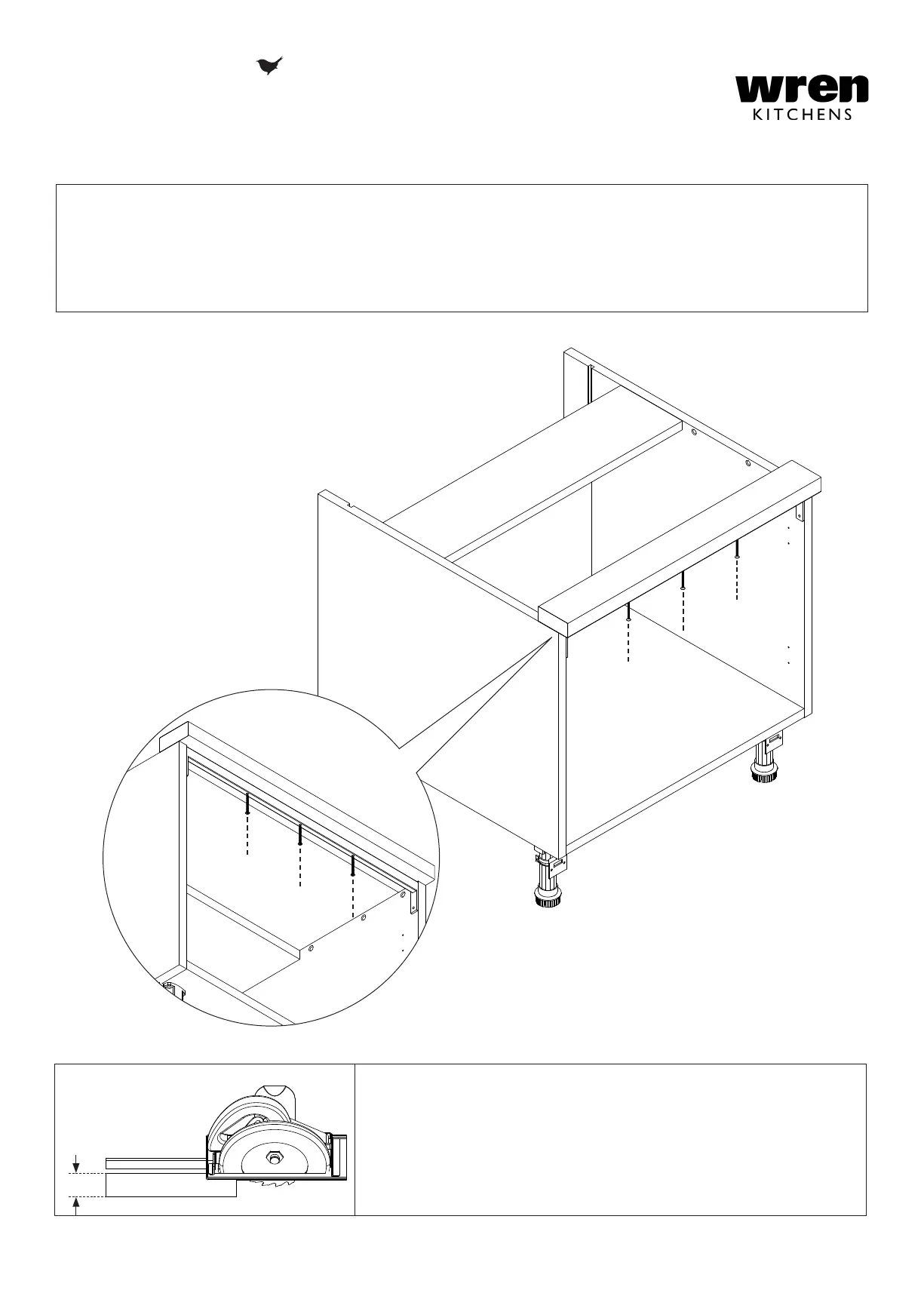

Step 3.
Using 3 x 40mm countersunk screws per unit, attach the top front rail to the front rail on the unit.
Make sure that the front of the rail is positioned door thickness + 1.5mm forward from the front of the
unit and is evenly spaced from the front of the unit along the entire length.
Screw through the bottom of the sink rail upwards into the front rail.
Step 4.
Cut the bottom rail to reduce the depth to 60mm along the
full length as to not clash with the legs.
60mm
