BASE UNIT
Inframed kitchen Belfast Sink Guide
For Internal Use: WKIN00289_Inframed_Kitchen_Guide_Rev3
Page 31
Step 5.

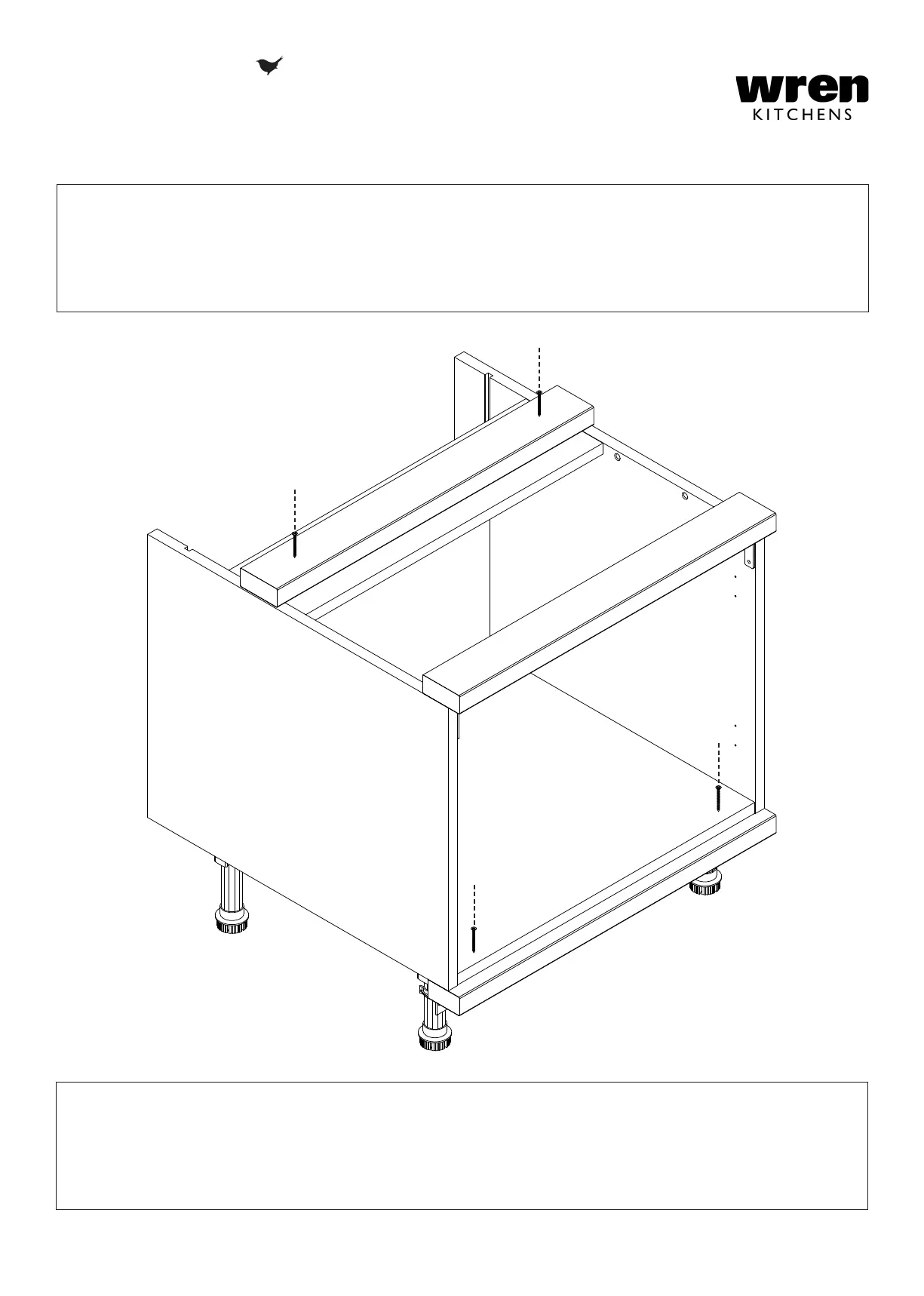

Using 2 x 40mm countersunk screws, attach the bottom front rail to the bottom of the base xed shelf.
Make sure that the front of the rail is positioned door thickness + 1.5mm forward from the front of the
unit and is evenly spaced from the front of the unit along the entire length.
Make sure that the screw heads are ush with the top of the base xed shelf.
Step 6.
Using 40mm screws, attach the wrapped rail to the back of the unit. Screw into the centre of the
supporting rail to secure in place. (This position may change due to sink positioning)
Cover screw heads with cover caps.
