BASE UNIT
Inframed kitchen End-Run Dishwasher Guide
For Internal Use: WKIN00289_Inframed_Kitchen_Guide_Rev3
Page 37

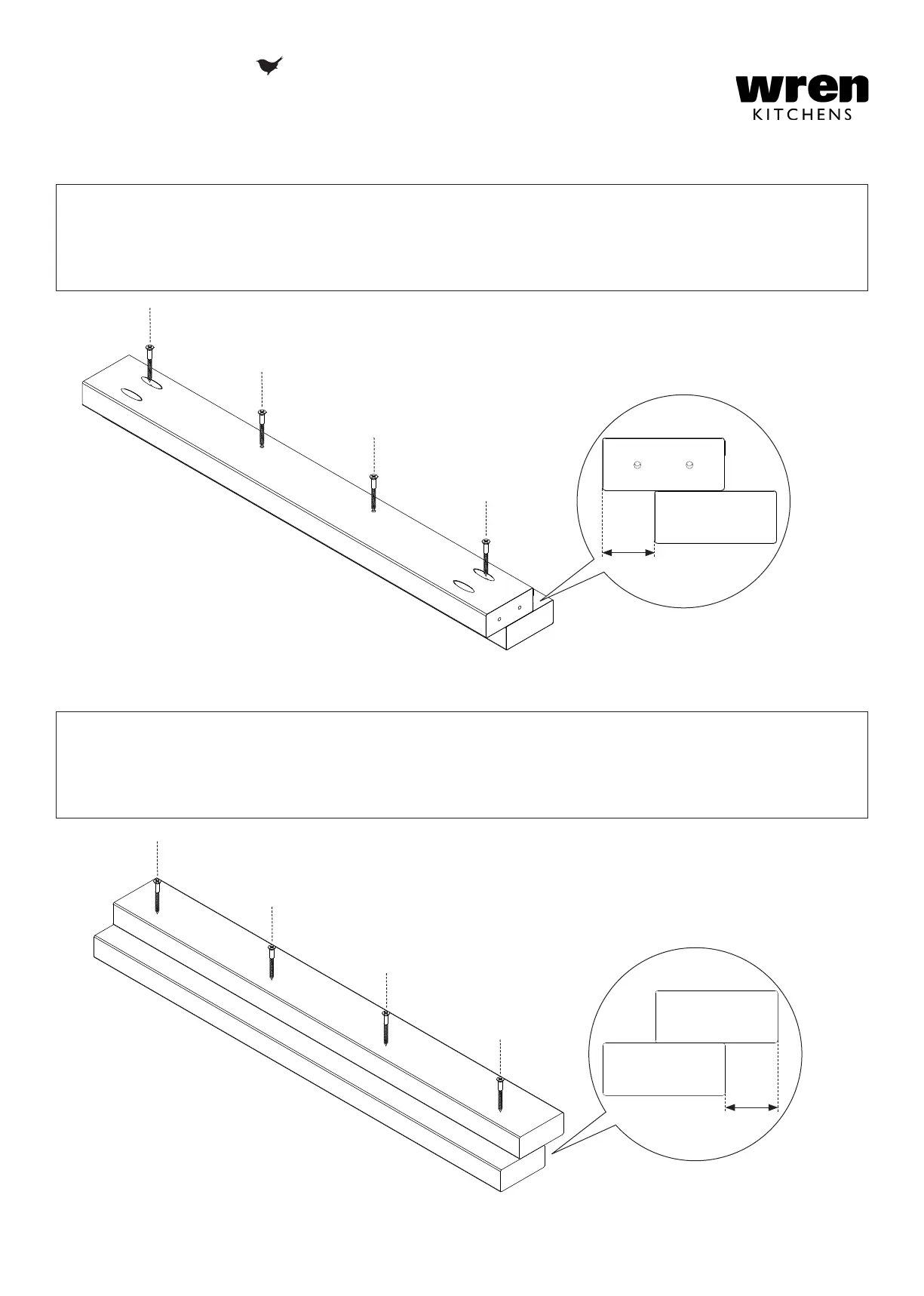

Step 11.
Pilot drill then, using 4 x 45mm screws, screw the front wrapped rail to the drilled front wrapped rail, osetting
the fronts of the rails by 30mm. Make sure that the rails are aligned and ush at the ends.
Step 12.
Repeat step 11 for the rear unwrapped rails.
30mm
30mm
