BASE UNIT
Inframed kitchen End-Run Dishwasher Guide
For Internal Use: WKIN00289_Inframed_Kitchen_Guide_Rev3
Page 38

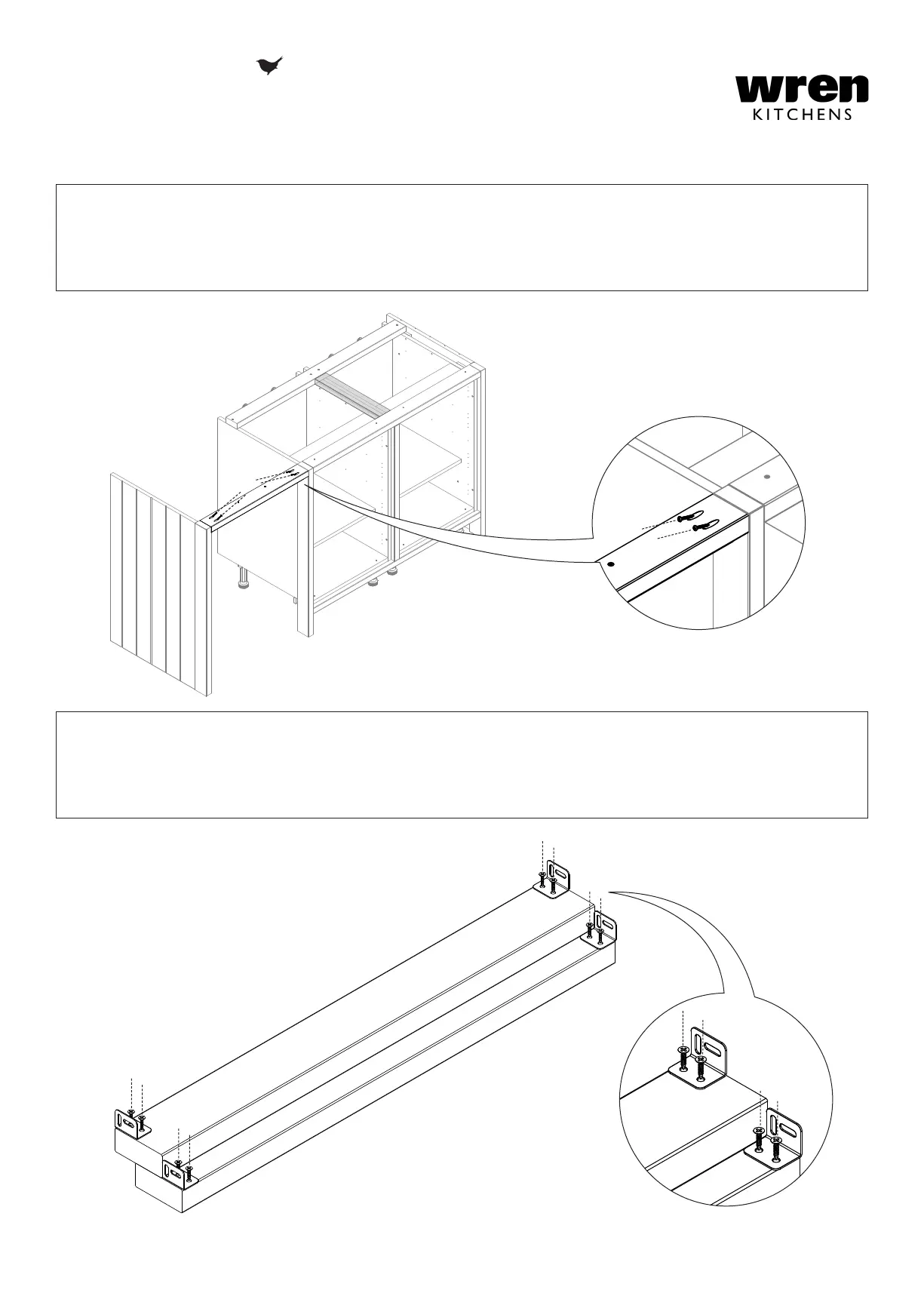

Step 13.
Using 2 x 30mm pan head screws at each end, attach the front wrapped rail construction to the vertical end rails.
Set back the front of the top wrapped rail by 0.5mm.
Step 14.
Using 2 x 15mm screws per L bracket attach 2 x Large L Brackets at both ends of the unwrapped rail
construction.
UNDERSIDE OF REAR RAIL ASSEMBLY
