Wren INFRAMED KITCHEN - Page 41

BASE UNIT
Inframed kitchen Mid-Run Dishwasher Guide
For Internal Use: WKIN00289_Inframed_Kitchen_Guide_Rev3
Page 41

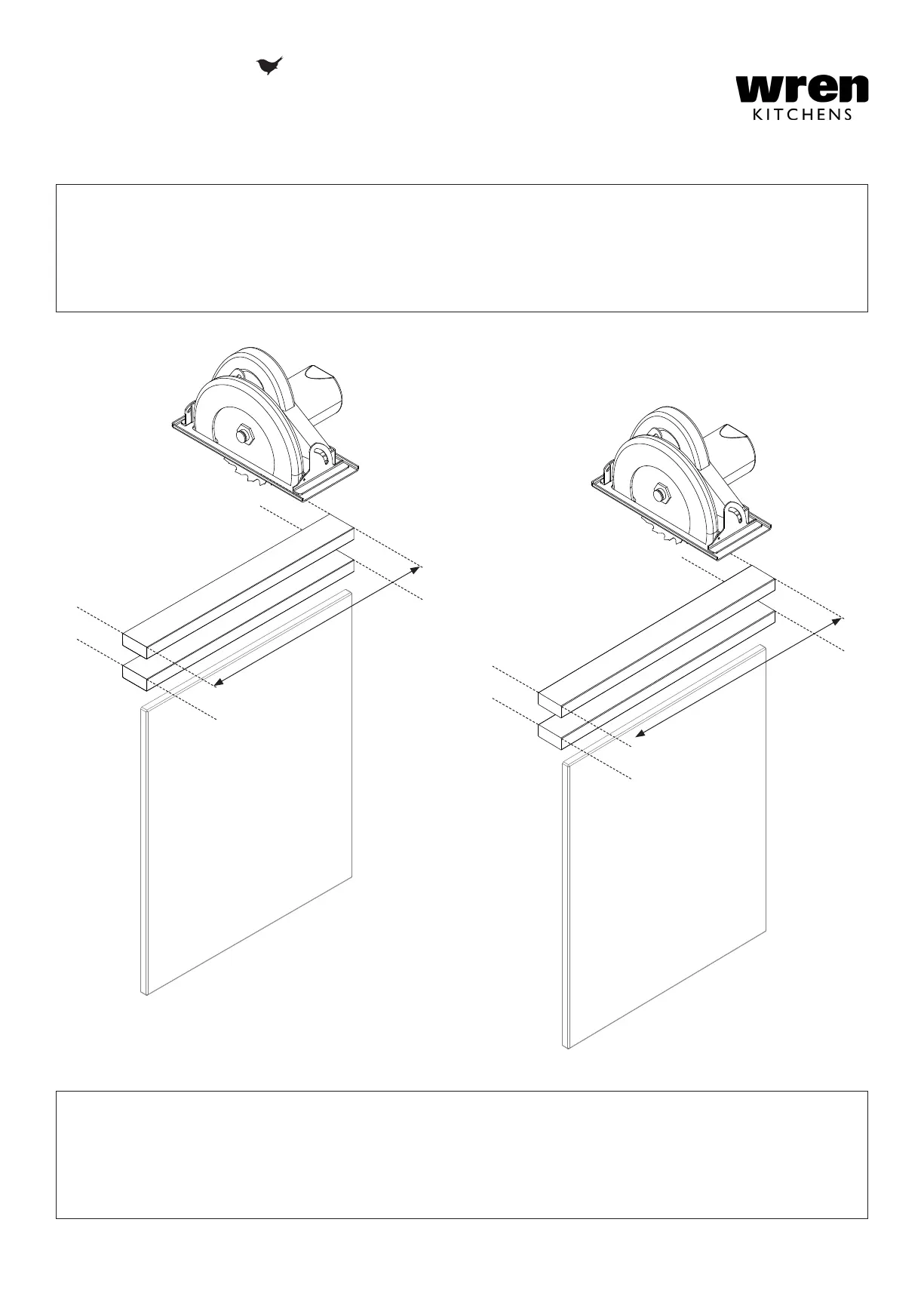

Step 1.
Measure and cut 2 x front wrapped rails to the width of the dishwasher frontal + 4mm.
E.g. Rail length for a 596 width dishwasher frontal = 600mm (Fig.1)
Step 2.
Measure and cut 2 x rear unwrapped rails to the width of the dishwasher frontal + 64mm.
E.g. Rail length for a 596 width dishwasher frontal = 660mm (Fig.2)
FRONTAL W + 4mm
FRONTAL W
+ 64mm
(Fig.1)
(Fig.2)
FRONT RAIL
REAR RAIL
FRONT RAIL
REAR RAIL
