BASE UNIT
Inframed kitchen Base Guide
For Internal Use: WKIN00289_
Inframed_Kitchen_Guide_Rev3
Page 5

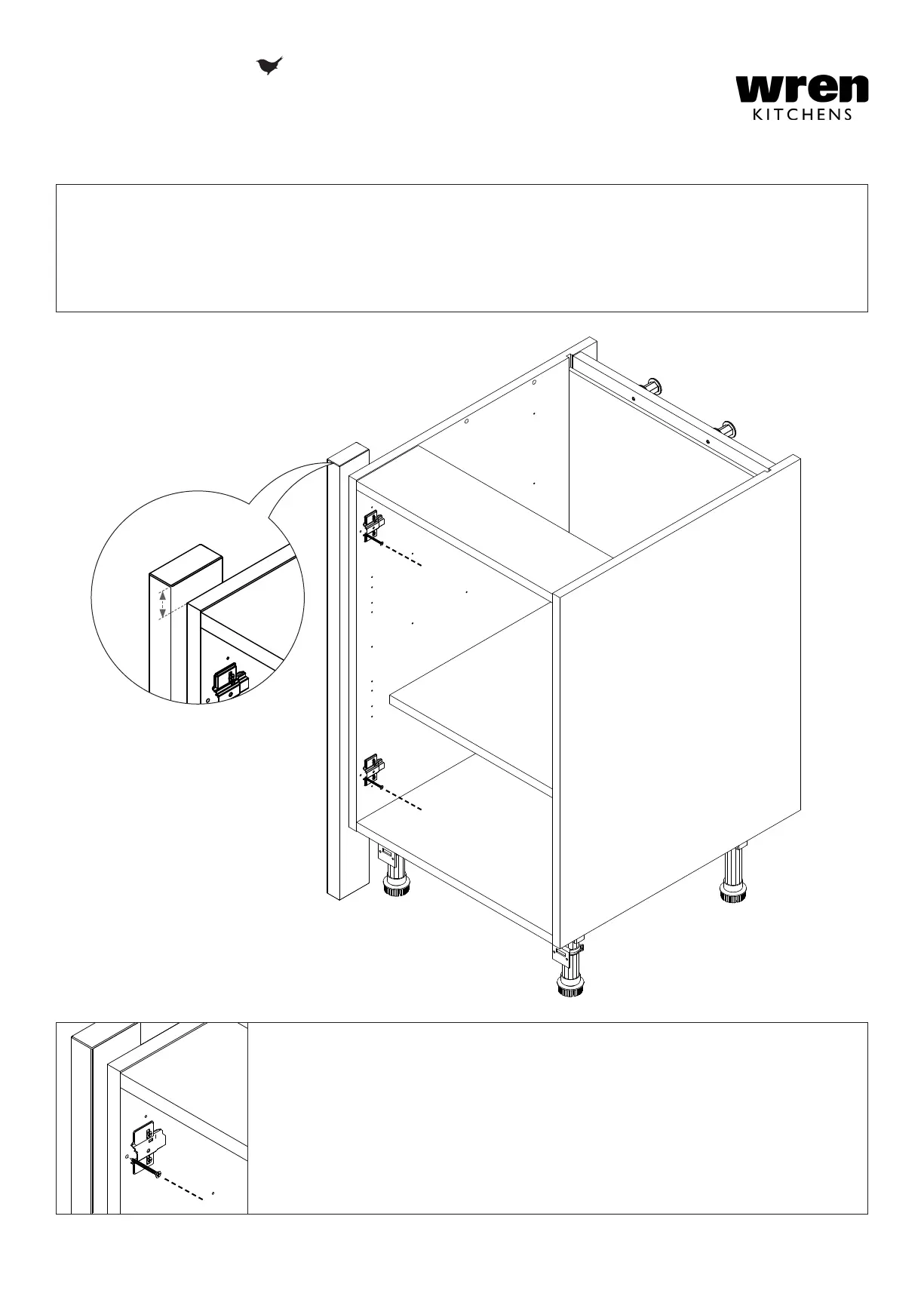

Step 1.
Set height of the legs to 140mm and attach to the unit.
Step 2.
Using 2 x 40mm screws, attach 70 x 30mm rail to the end of the unit. (Trim top of rail
to adjust height if required)
Ensure rail is positioned door thickness + 2 mm forward from the front of the unit.
Cover screw heads with cover caps.
The rail is 30mm larger than the height of the unit with legs attached.
See Customer Specic Kitchen Plan for rail positioning.
30mm
