WALL UNIT
600 - 800 Lift
Assembly Guide
For Internal Use: FI.WR.INS.032_WKIN00121_WALL_600-800_Lift_Rev4.indd
Page 4

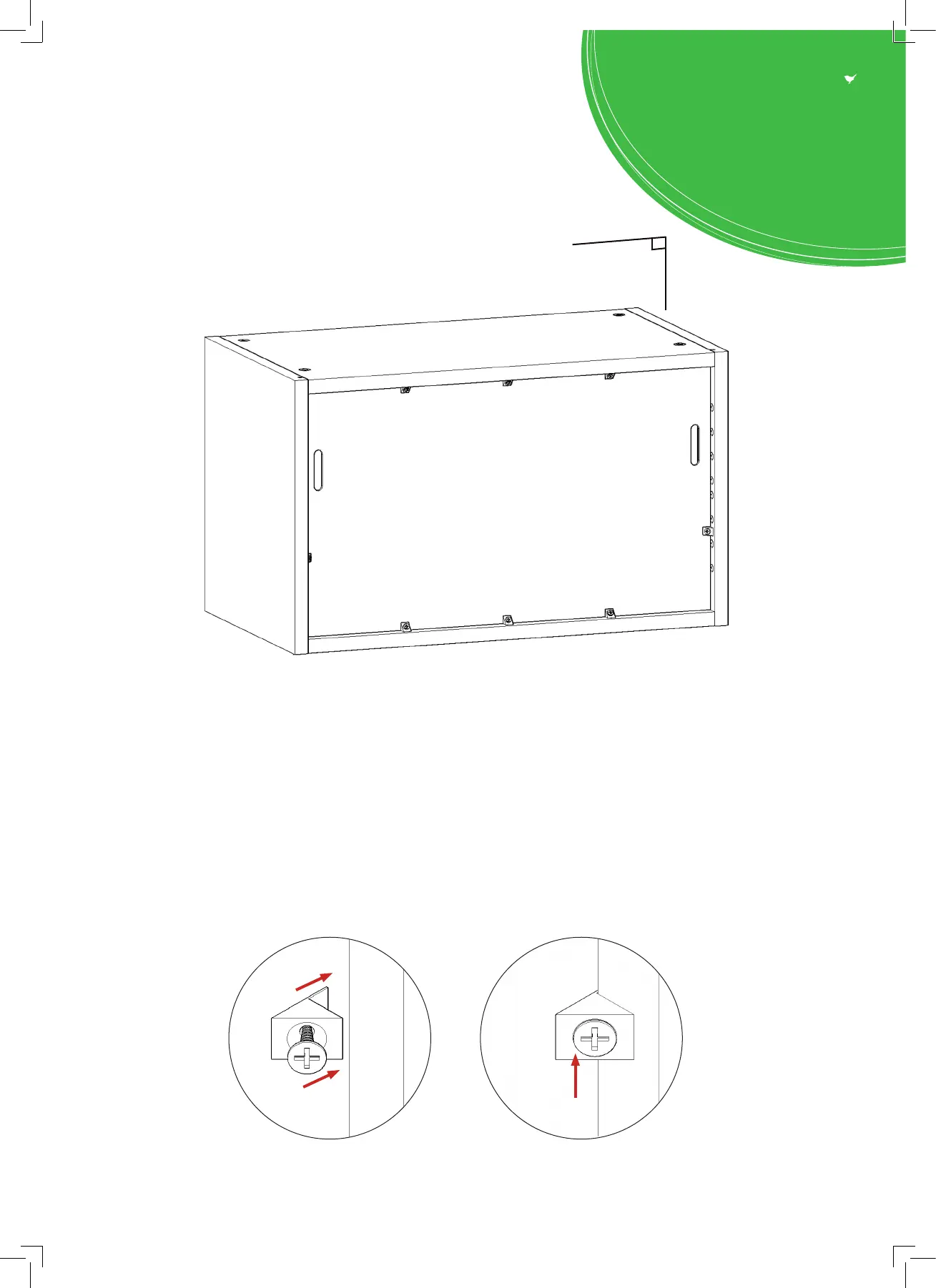

Step 11.
Slide the back panel clips (T) into the groove of both
panels (B) & (C). The back panel clips (T) should be
evenly spaced as shown and positioned to allow the
hanging bracket and corner gussets to be tted. Once in
place, tighten screw.
The side back panel Clips should be disregarded for
the 288 units.
Step 10.
Ensure carcass is square.
B
A
C
A
T
A
T
To Next Page
