WALL UNIT
600 - 800 Lift
Assembly Guide
For Internal Use: FI.WR.INS.032_WKIN00121_WALL_600-800_Lift_Rev4.indd
Page 5

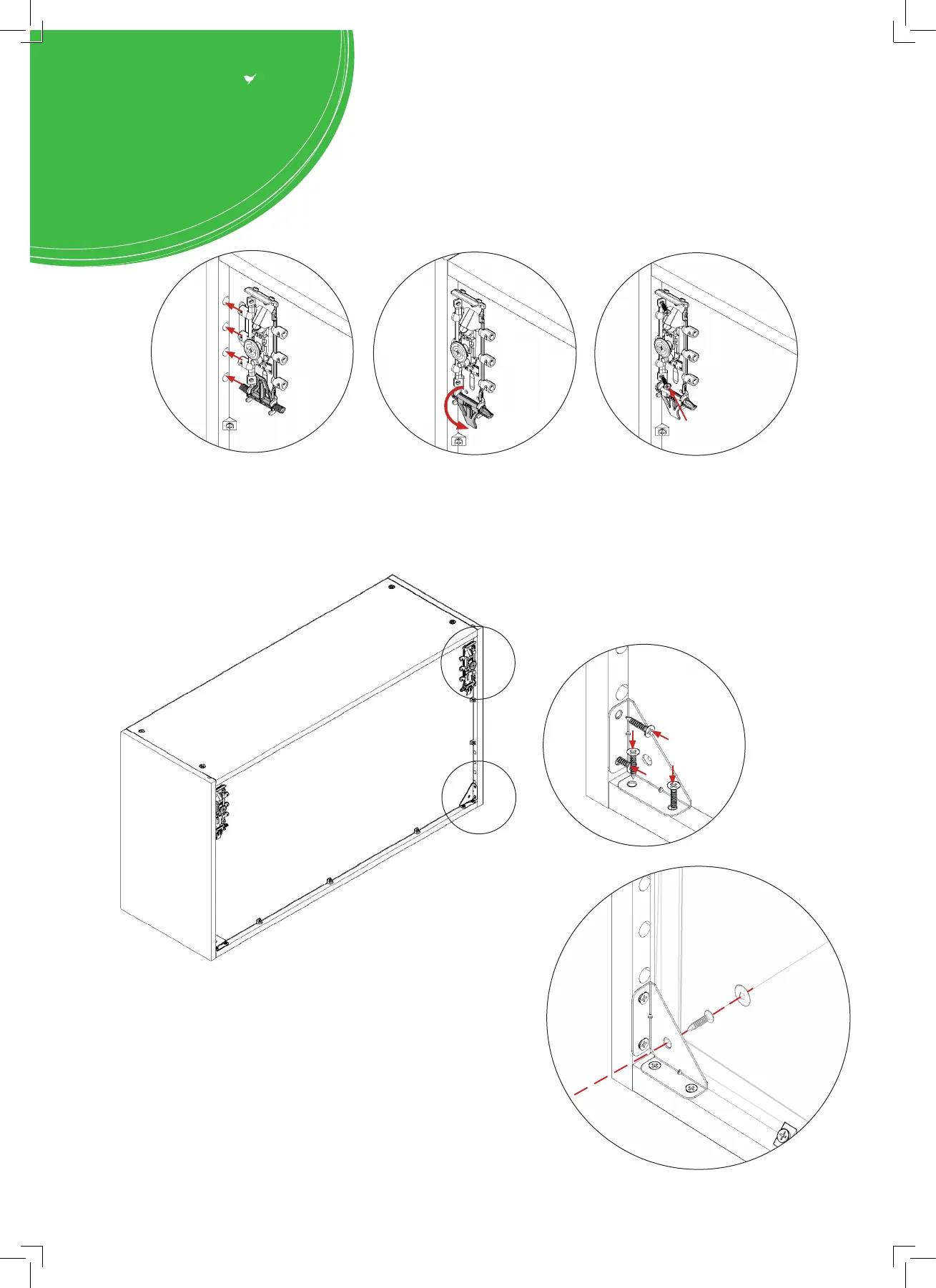

Step 13.
Secure corner gussets to the bottom left and
right hand side of the wall unit using
4 x 15mm screws (L) per plate.
Step a
Insert Hanging
Bracket into pre-drilled holes
Step c
Secure with provided
2 x 20mm screws (S) per bracket
Step b
Rotate locking
lever 180 degrees
S
S
Detail A
Detail A
Detail A
View though
Back Panel
Pilot
hole
M
Detail B
L
L
L
L
Detail B
A
B
Step 14.
Drill a small pilot hole through the centre of the Corner Gussets.
Use this hole at the end of the process to screw through and
into the wall. Cover the screw heads using the cover caps (M)
provided.
Screws for xing to walls are not provided as these vary
depending on your wall material and construction. Ensure
appropriate xings for wall constructions are used.
Step 12. Hanging Brackets steps a,b & c to be carried
out on both sides as shown
To Next Page
