WALL UNIT
600 - 800 Lift
Assembly Guide
For Internal Use: FI.WR.INS.032_WKIN00121_WALL_600-800_Lift_Rev4.indd
Page 6

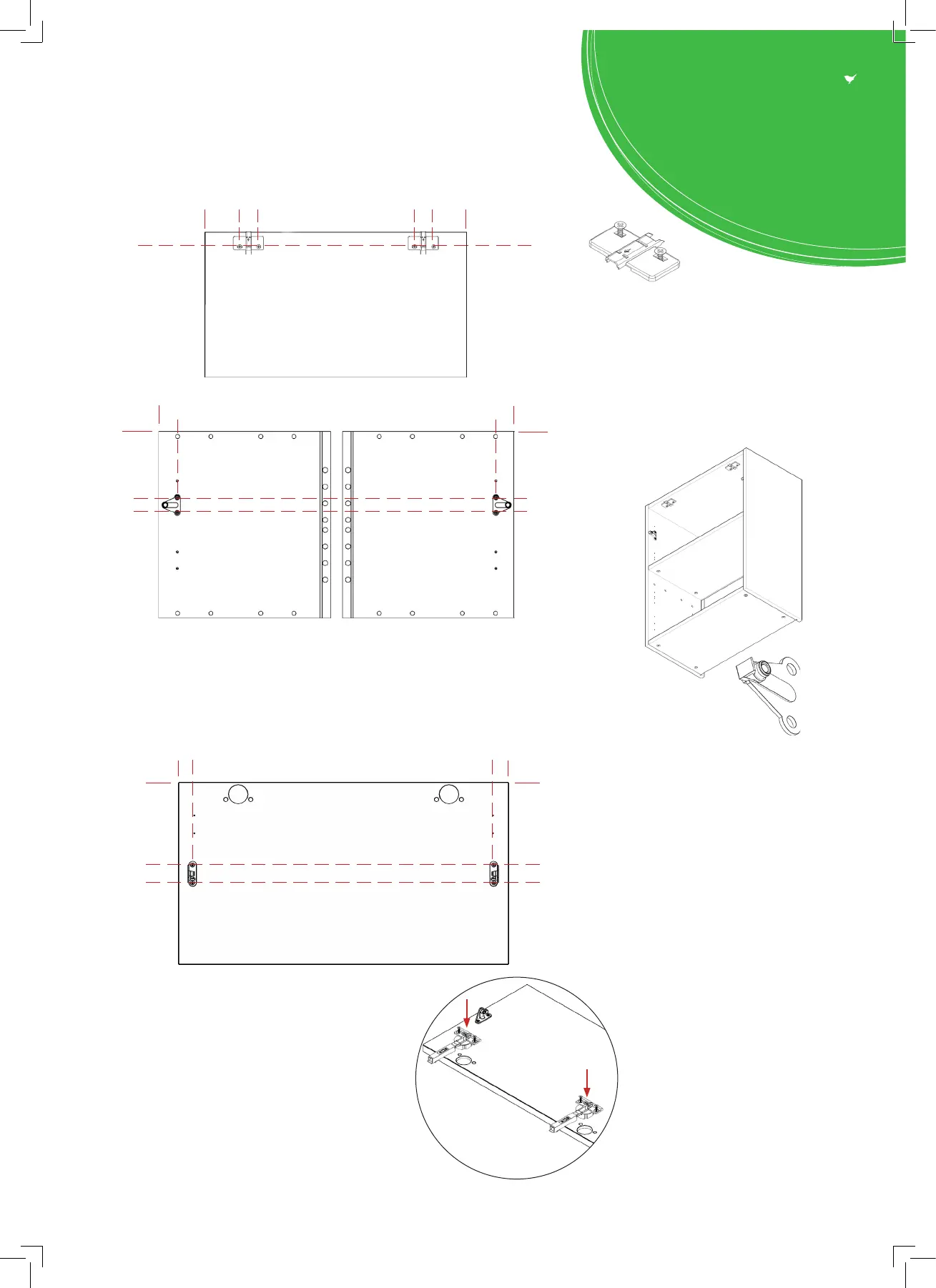

Step 15.
Measure and attach Hinge Mounting Plate onto xed shelf (C) as shown,
using screws which are already positioned within the Hinge Plates.
Step 16.
Measure and attach lift hinge
bracket with 2 x screw per bracket.
The required screws are included
inside lift hinge pack.
Step 19.
Secure hinges by tightening
2 x screws with plastic grommet
attached. These are already
positioned within the hinges.
Step 18.
Insert hinges into holes provided.
C
TOP FIXED SHELF
Front Front
37 37
Left Right94 94126 126
Hinge Plates
142142
110 110
BackBack
Left
Right
3030
FRONTAL
192 192
160 160
Top
Top
Front
Front
37 37
Removed from lift hinge
B
B
C
Step 17.
Measure and attach lift hinge bracket to frontal with 2 x screw per
bracket. The required screws are included inside lift hinge pack.
LEFT HAND RIGHT HAND
B B
To Next Page
