WALL UNIT
600 - 800 Lift
Assembly Guide
For Internal Use: FI.WR.INS.032_WKIN00121_WALL_600-800_Lift_Rev4.indd
Page 7

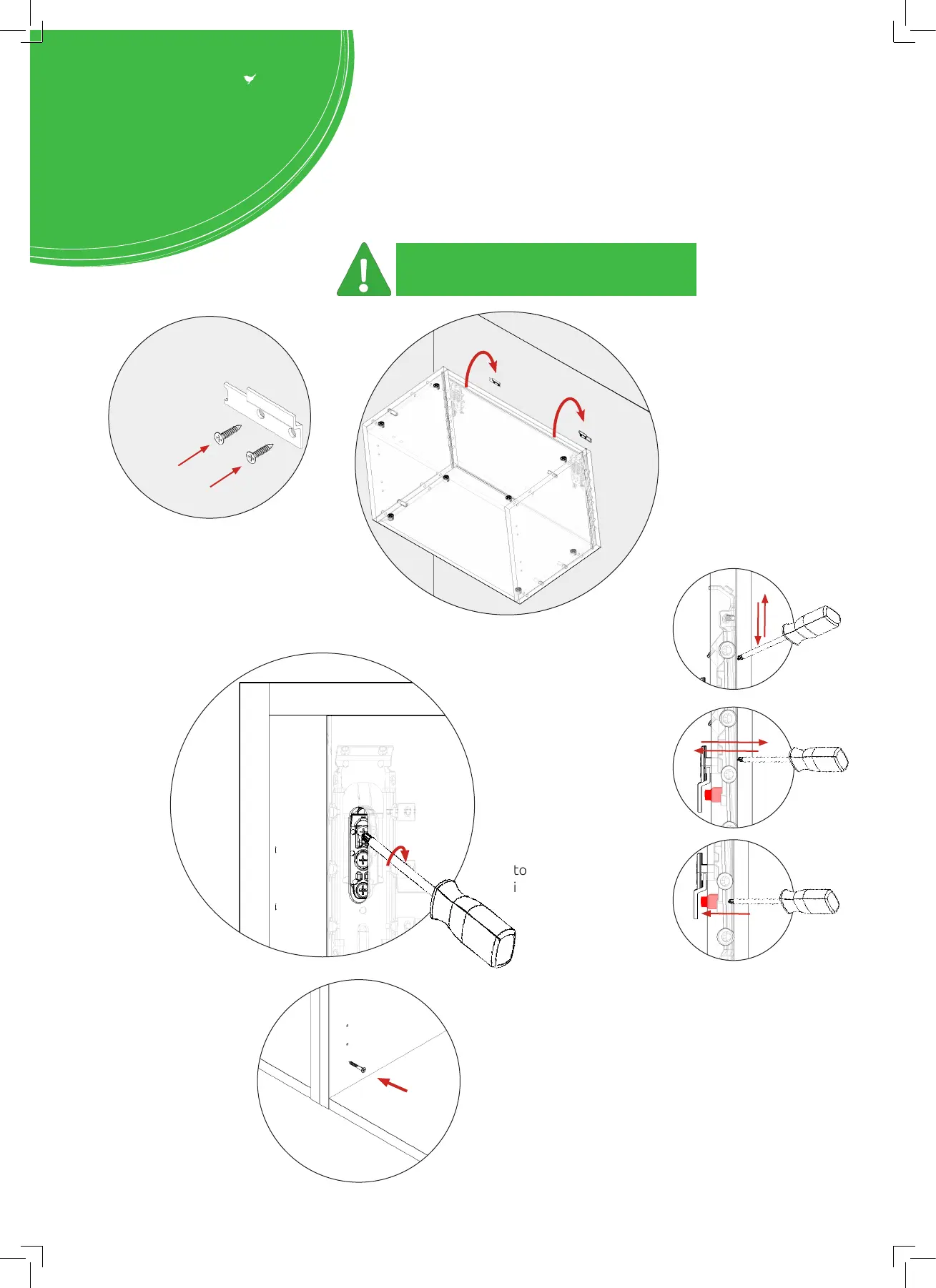

Step 20.
Measure appropriately and attach the 2 x hanging bracket plates onto the
wall screwing through the provided holes into your wall.
Screws for xing to walls are not provided as these vary depending
on your wall material and construction. Ensure appropriate xings for
wall construction are used.
Step 21.
Hang the cabinet using
the brackets to hook
onto the plate as shown
Hanging Bracket
Plate
Step 22.
Using points a, b & c adjust the Cabinet to suit.
Step a.
Rotate the screw clockwise
to move the cabinet up.
Anti-clockwise for down.
Step b.
Adjust the depth
using centre
screw.
Step c.
Screw the red screw until it
touches the plate to lock
in position.
Hanging
Bracket
viewed though
Back Panel
b
C c
a
a
b
K
Step 24.
Screw into any side units using the
provided 2x 30mm screws (K) to
secure the unit. Screw just to the
rear of the hinge plate then place a
cover cap on the head to conceal it.
Care to be taken. Hanging procedure
is neccesary for a safe installation.
