WALL UNIT
600 - 800 Lift
Assembly Guide
For Internal Use: FI.WR.INS.032_WKIN00121_WALL_600-800_Lift_Rev4.indd
Page 8

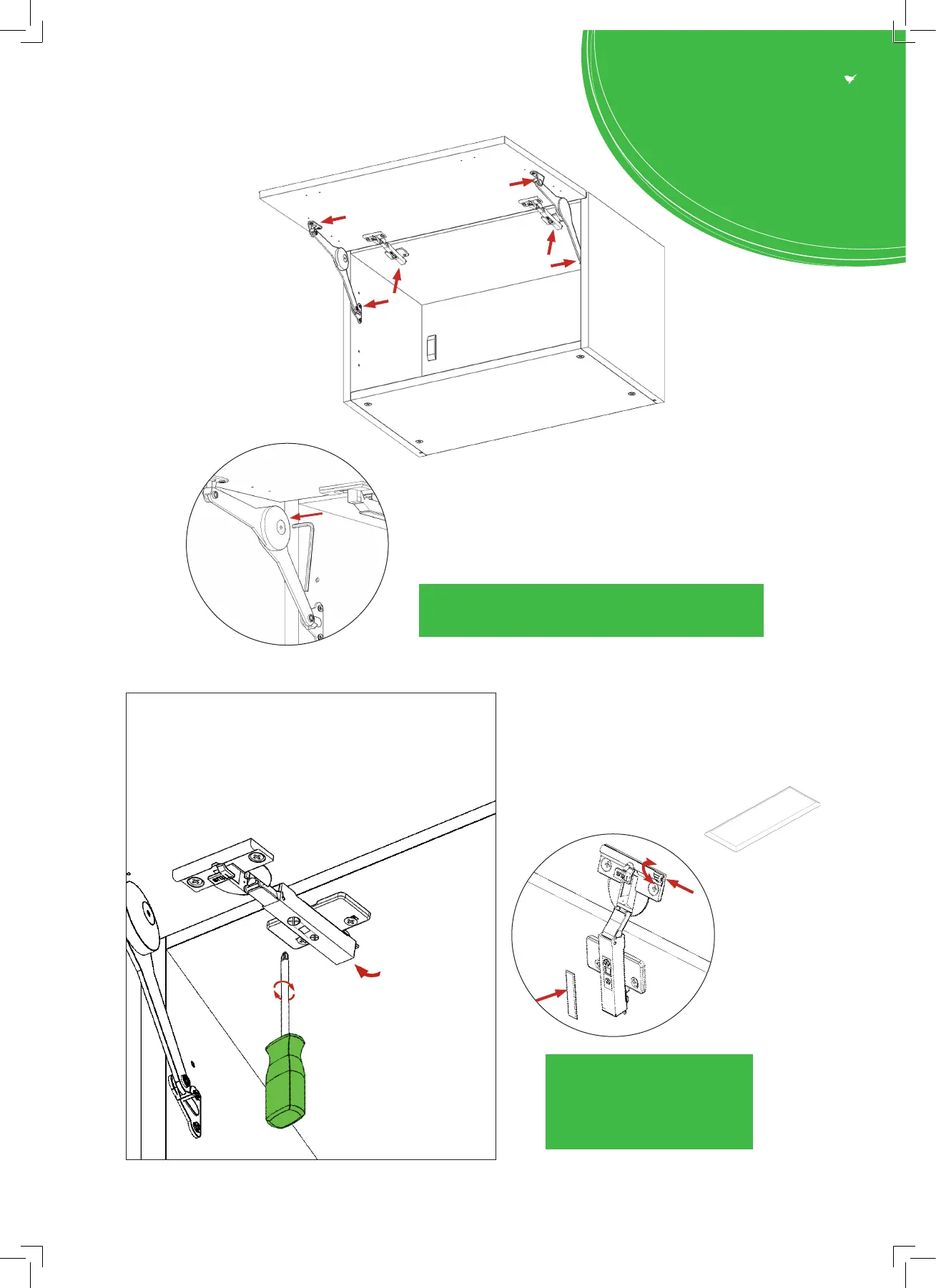

Step 24.
Clip hinges into hinge mounting plates on
the unit.
Step 25.
Clip lift hinge mechanisms
into each bracket.
Step 26.
Use a 4mm allen key to adjust
the strength of the lift hinge for
the door weight.
Hinge Cover Caps
Step 27.
Fit cover caps to hinge.
Adjust Softclose to suit.
The left and right hinges MUST be
adjusted to the SAME STRENGTH.
To adjust hinge using a screw
driver, tighten or loosen as
required at points 1 & 2.
Point 1 - In - Out
Point 2 - Left - Right
1
2
FRONTAL HINGE
ADJUSTMENT
View from Inside of Carcase
To release door,
pull catch as shown,
to release hinge from
the hinge plate.
The top and bottom
hinges MUST be
adjusted to the SAME
STRENGTH.
To Next Page
