Baffle installation with-out pre-punched
holes in cutter deck
1. Remove deck covers.
2. Raise and secure unit so cutter deck is accessible.
3. Remove blades and scrape all grass from the under side of the deck.
4. Align discharge-side of baffle with front outside edge of deck, and clamp. (Fig. 1)
5. Slide trim-side up tight against front of deck, and clamp. (Fig. 2)
Note:
* It may require two people to set and clamp baffle.
* Install blades loosely and spin by hand to ensure there is no interference
with the baffle.
6. Drill holes (4 or 5, depending on deck size) using a 3/8” drill bit. (Fig. 3)
7. Secure baffle to deck using hardware provided.
8. Tighten blade bolts and run to check for interference.

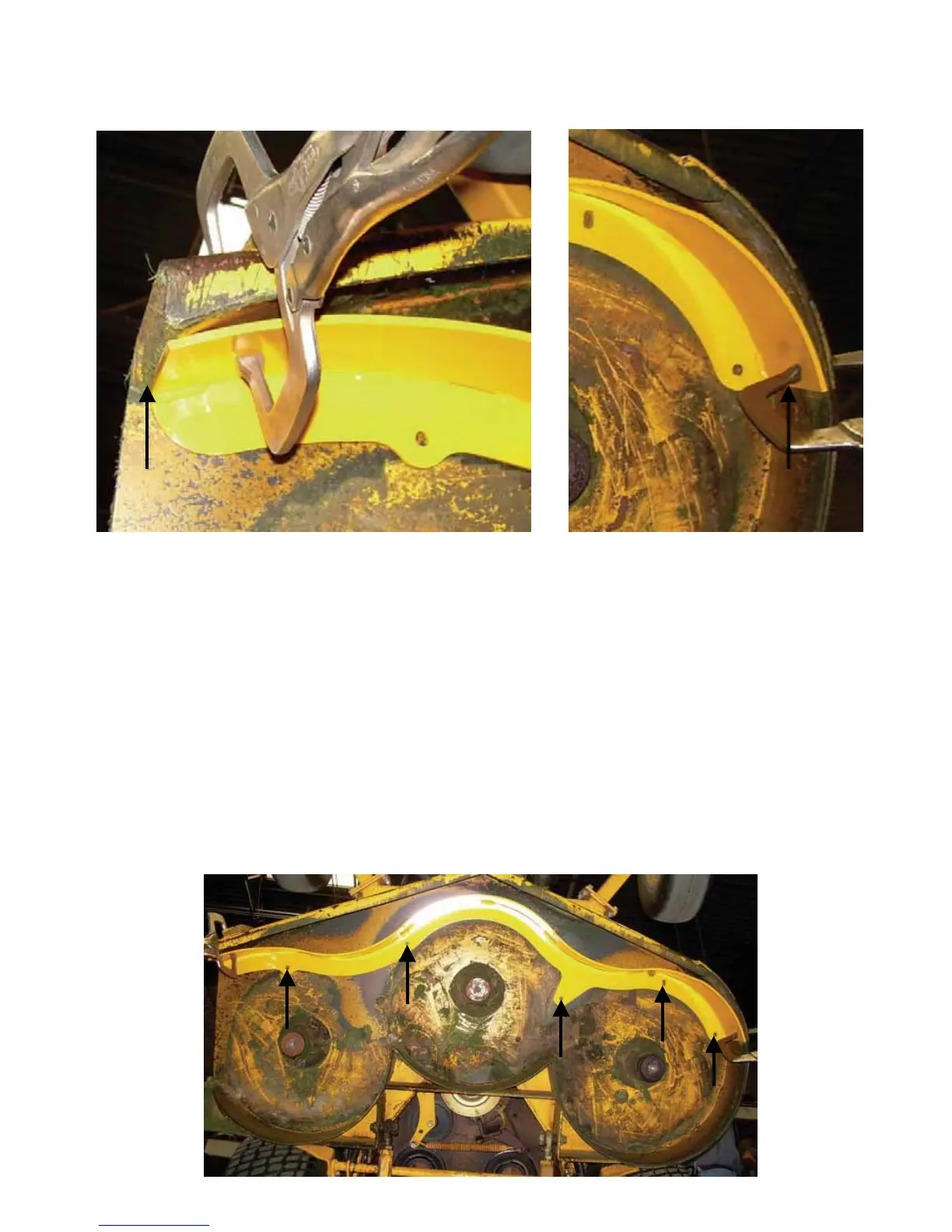

Fig. 1
Fig. 2
Fig. 3
