1.1 Structure and function

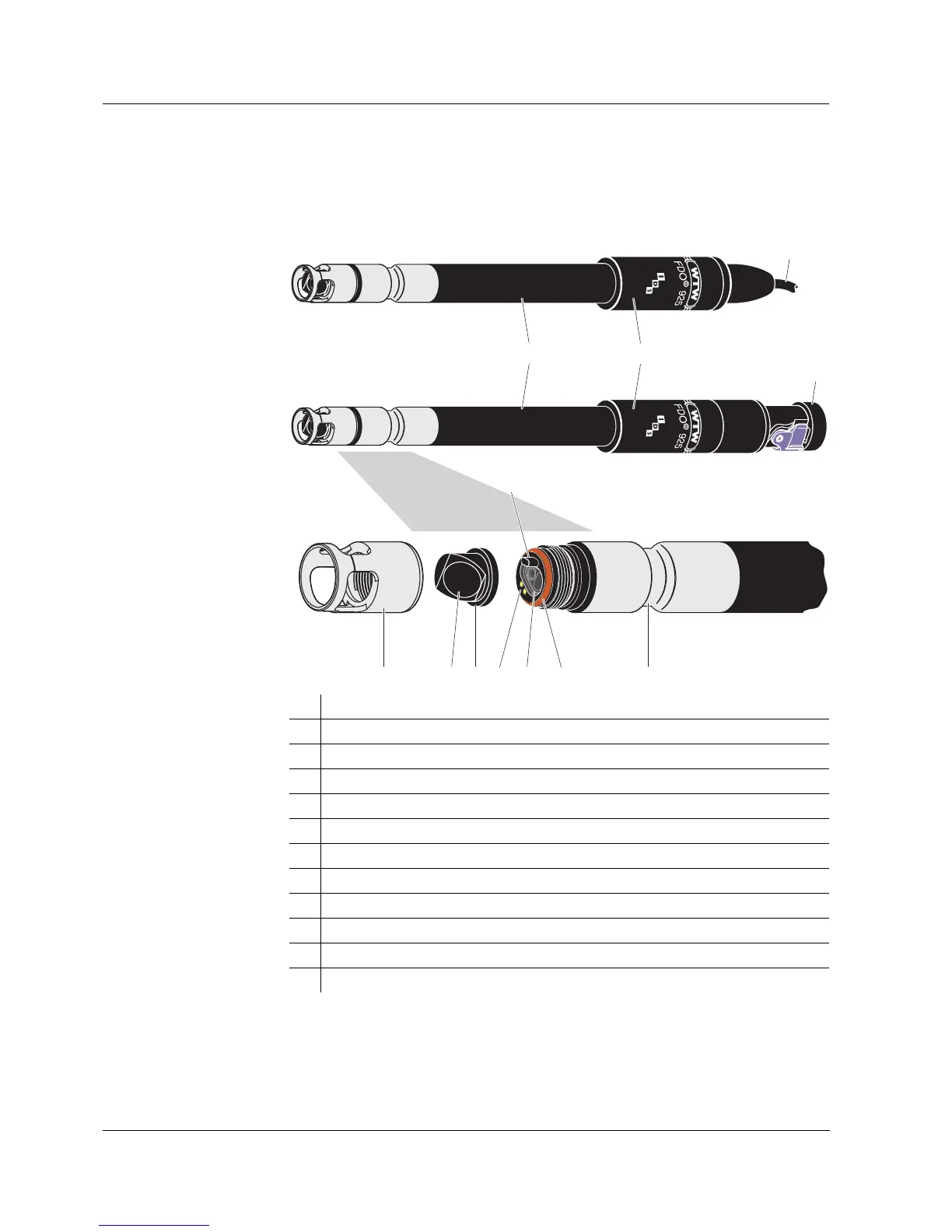

Structure
1 Shaft
2 Connecting head with active sensor electronics
3 Connection cable (FDO
®
925)
4 IDS plug (FDO
®
925-P)
5 Protective hood, with connection for RZ 300 stirrer (accessory)
6 Sensor membrane
7 SC-FDO
®
925 sensor cap with memory chip
8 Gold-plated contacts for the memory chip of the sensor cap
9 Locking device
10 Measurement window
11 O-ring
12 Thermistor enclosure with temperature sensor
12
3
4
7
9
512811106
FDO 925
®
FDO 925-P
®
