wtw FDO 925 - Opening and Closing the IDS Plug Connection

FDO
®
925 Measuring / Operation
7
ba75898e06 08/2015

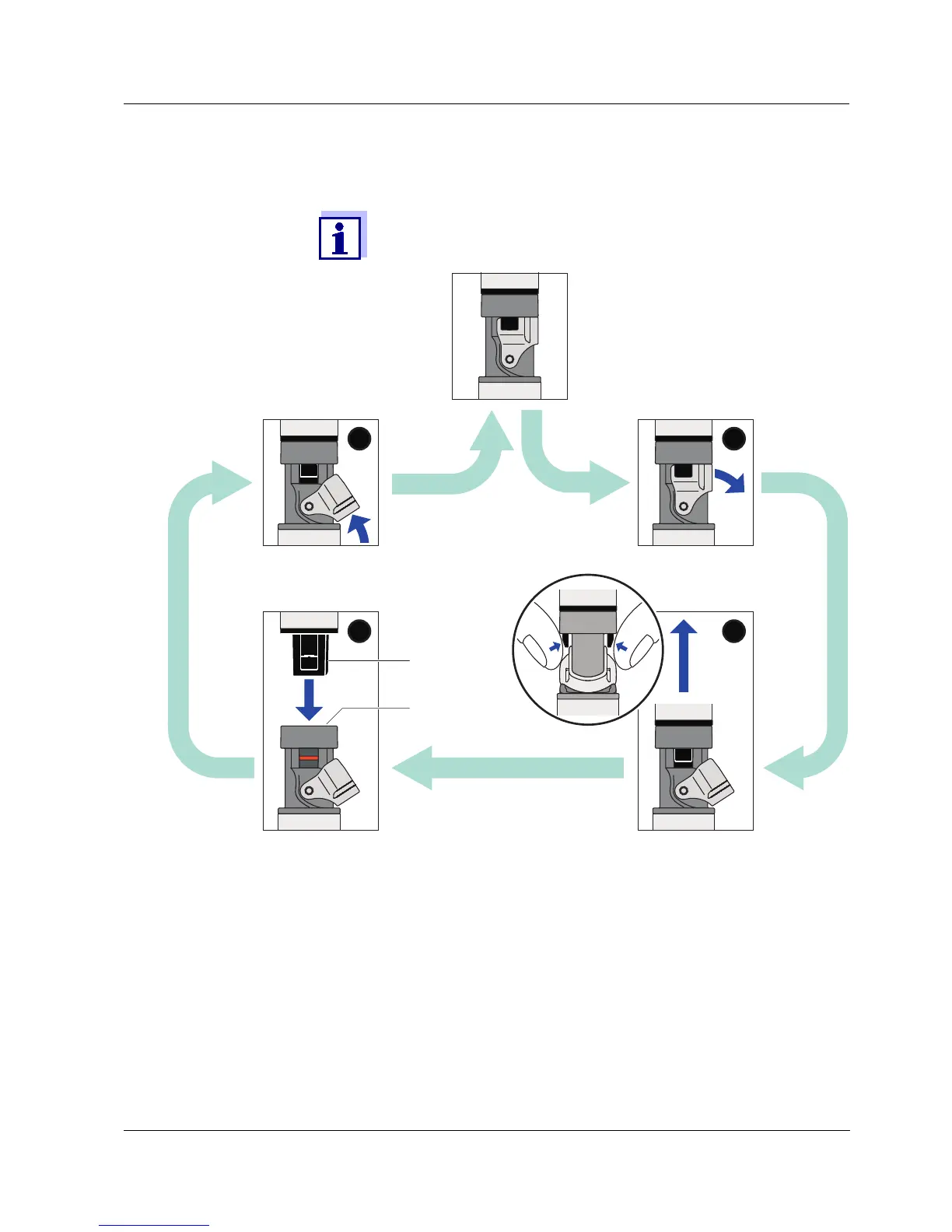

2.3 Opening and closing the IDS plug connection (FDO
®
925-P)
Opening the plug
connection
 If necessary, clean the plug connection
 Open the locking device (step 1)
 Use your thumb and index finger to press the clips of the connector
together, and pull the connector out of the plug (step 2).
Closing the plug
connection
 Make sure that the plug connection is completely dry and clean.
 Align the guidance of the connector with the groove in the plug and insert
the connector in the unlocked plug until it catches (step 3).
 Close the locking device (step 4).
This section only applies to the IDS plug variant,
FDO
®
925-P.
2
4
3
1
Plug connection
closed and locked
Guidance
Groove
